Vanity Lamp: Service and Repair

Vanity Mirror Lamp Removal and Installation

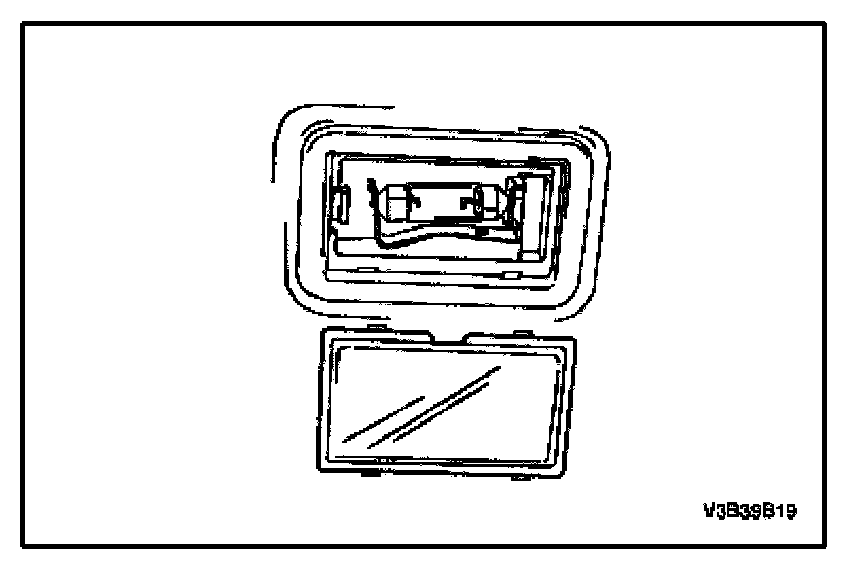

Vanity Mirror Lamp Removal

1. Disconnect the negative battery cable.
2. Pry off the vanity mirror lamp lens by inserting a screwdriver into the recess along the bottom edge of the lens.

3. Remove the inoperative bulb.

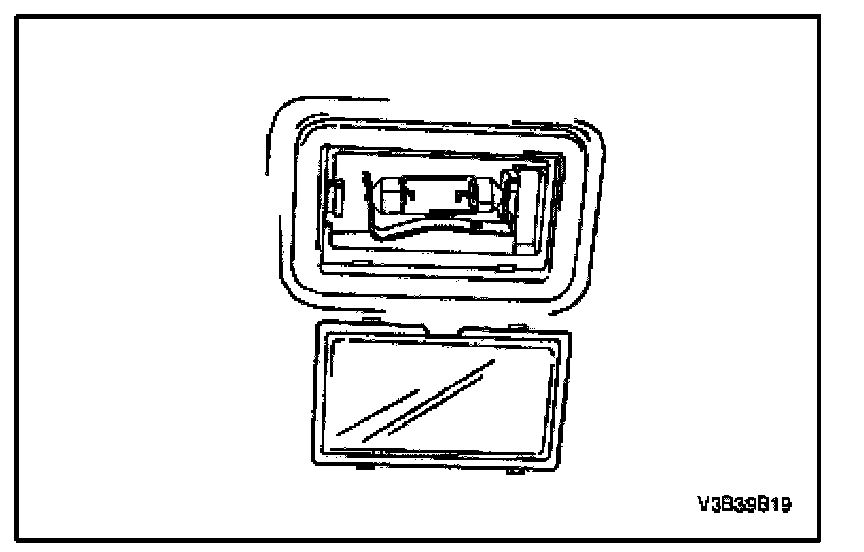

Vanity Mirror Lamp Installation

1. Install the replacement bulb.
2. Press the vanity mirror lamp lens onto the housing.

3. Connect the negative battery cable.
