Changing the Fluid
Changing the Fluid Tools Required: DW260-070 Plug Remover/Installer
1.
Raise and suitably support the vehicle.
2.
Place a fluid container below the fluid drain plug.
3.

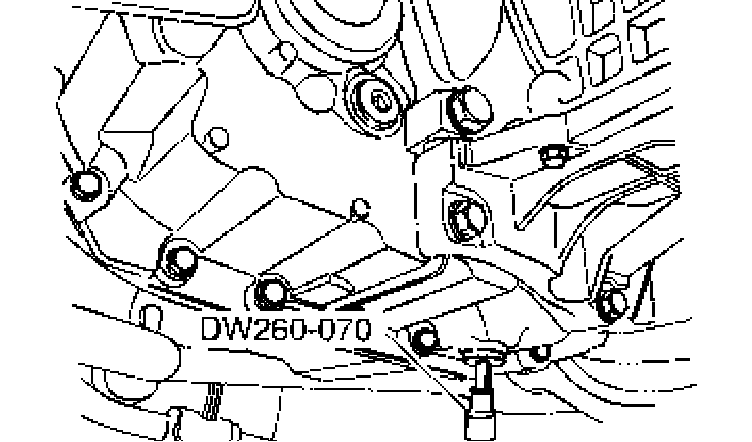

Remove the transaxle fluid drain plug using the plug remover/installer DW260-070.
Tighten: Tighten the Plug to
45 Nm (33 ft. lbs.).
4.

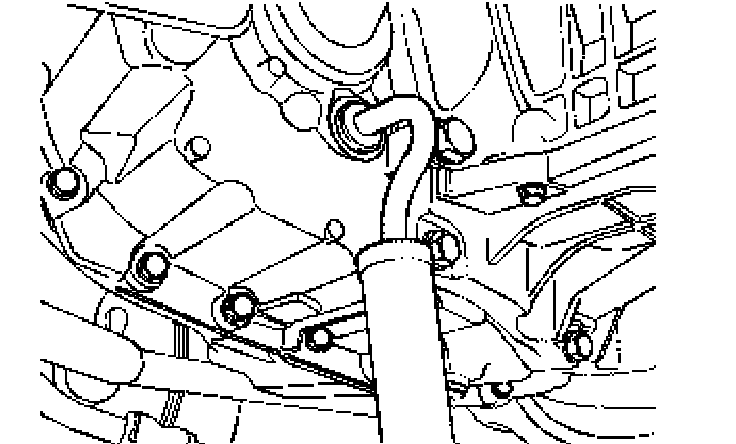

Adding transaxle fluid.
5.
Connect the negative battery cable.
