Engine Controls - Throttle Idle Actuator Diagnostics

Section Title: Engine
TSB No. TS12 04286

Division: Automotive
Category: Technical

SUBJECT:
ADDITIONAL DIAGNOSTIC STEPS FOR THE MAIN THROTTLE IDLE ACTUATOR (MTIA)

MODEL(S):
VERONA (RP625)

YEAR:
2004-2005

CONDITION:
MIIA diagnosis.

CAUSE:
To avoid replacement of a good MIIA.

CORRECTION:

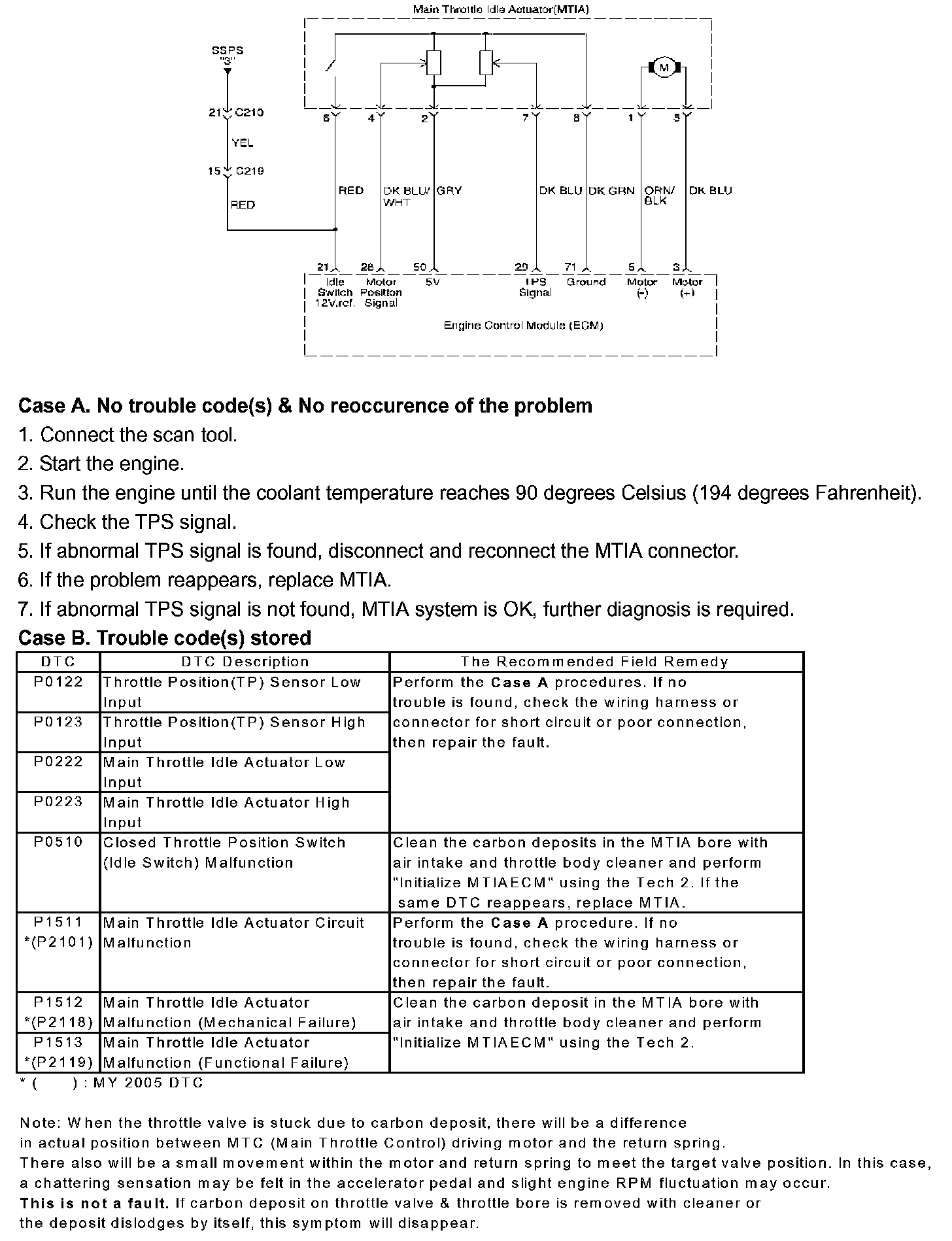

To avoid replacement of a good part please use the following information to aid in the diagnostics of the MTIA.

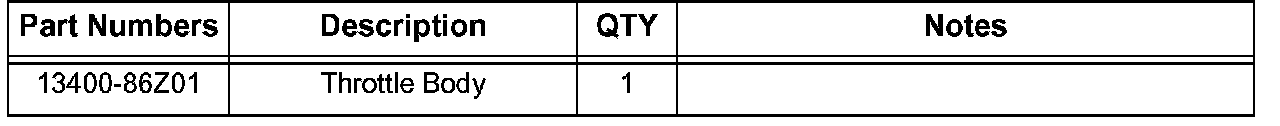

PART(S) INFORMATION
