Engine Cranks But Will Not Run

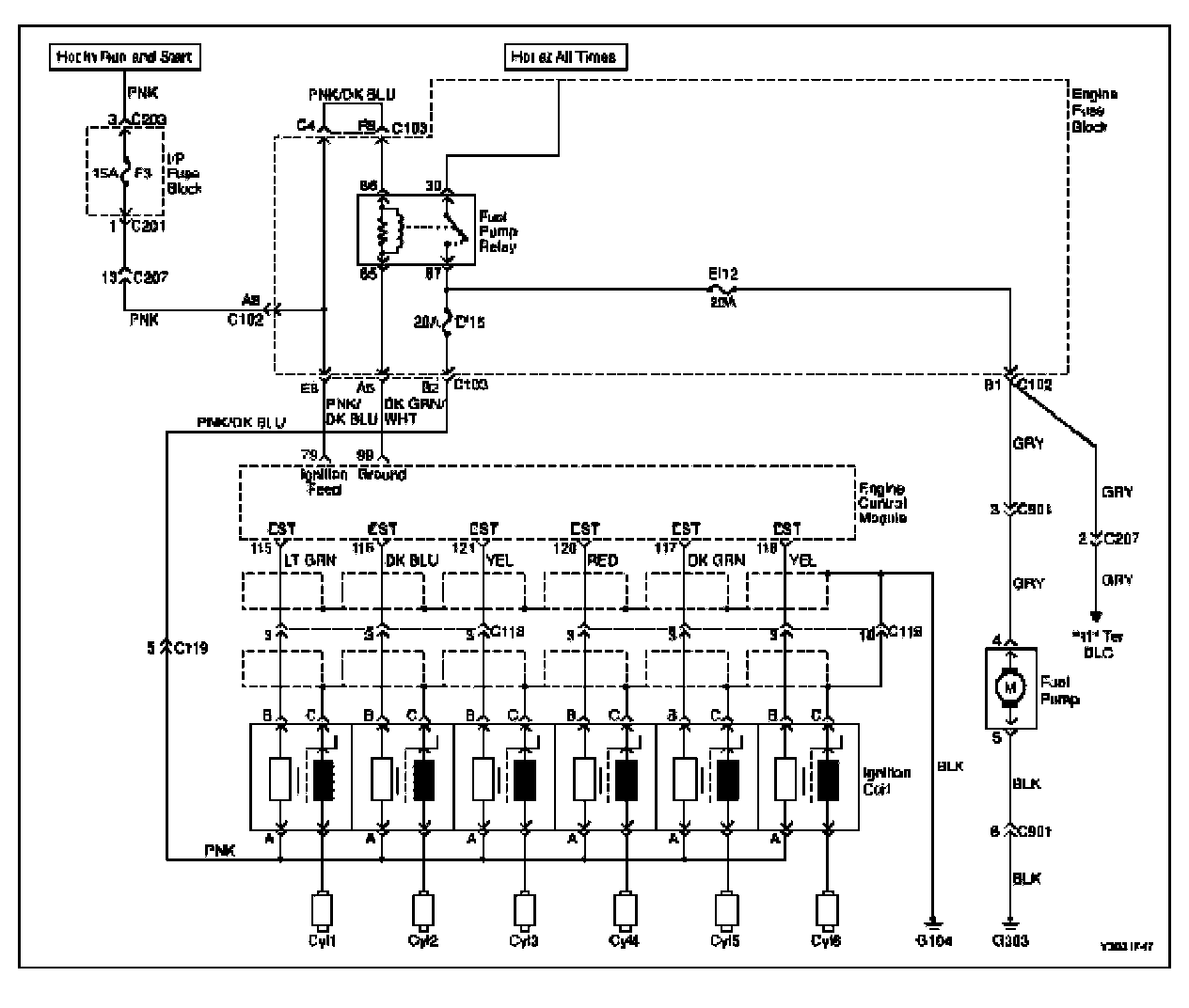

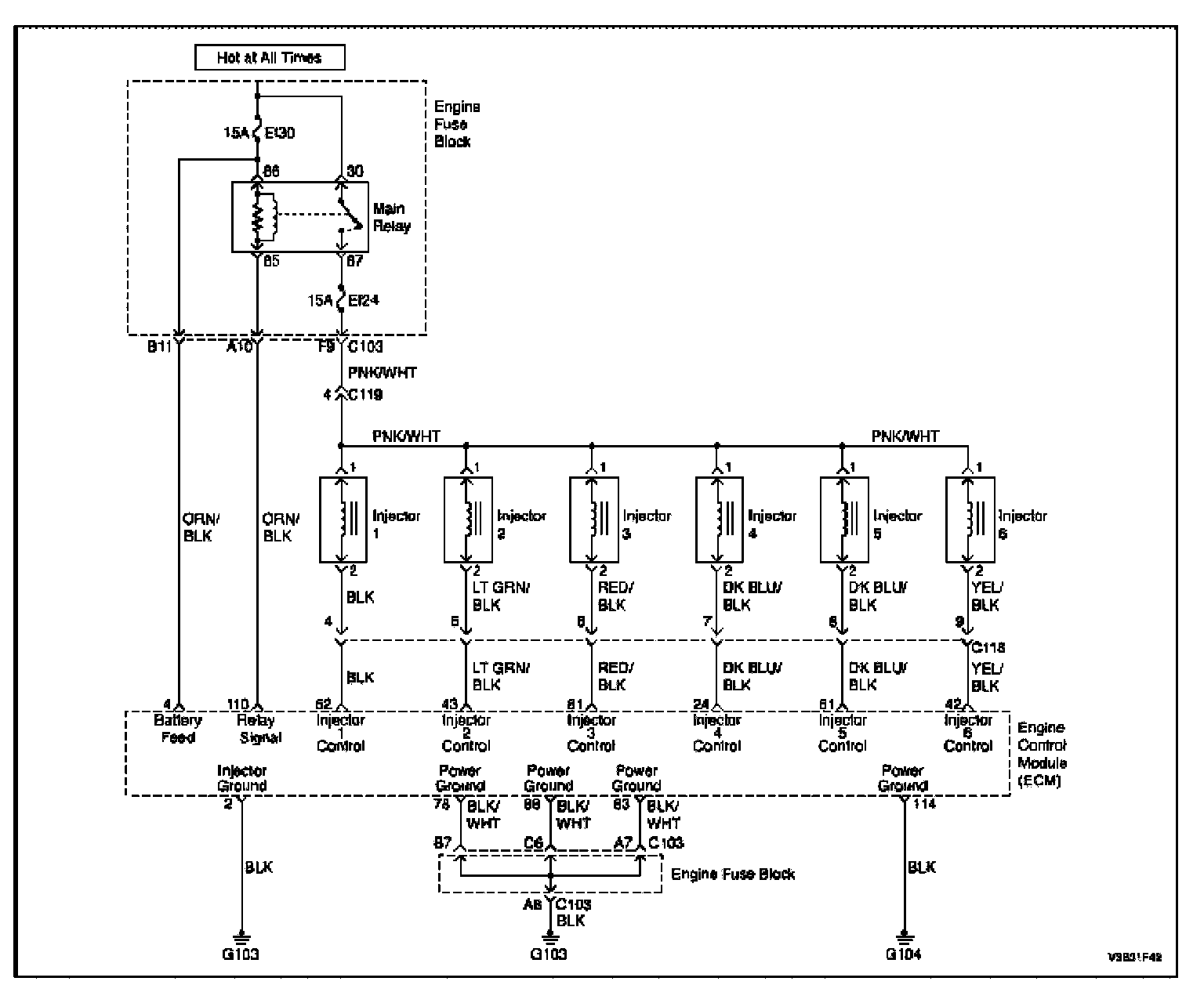

Wiring Diagram:

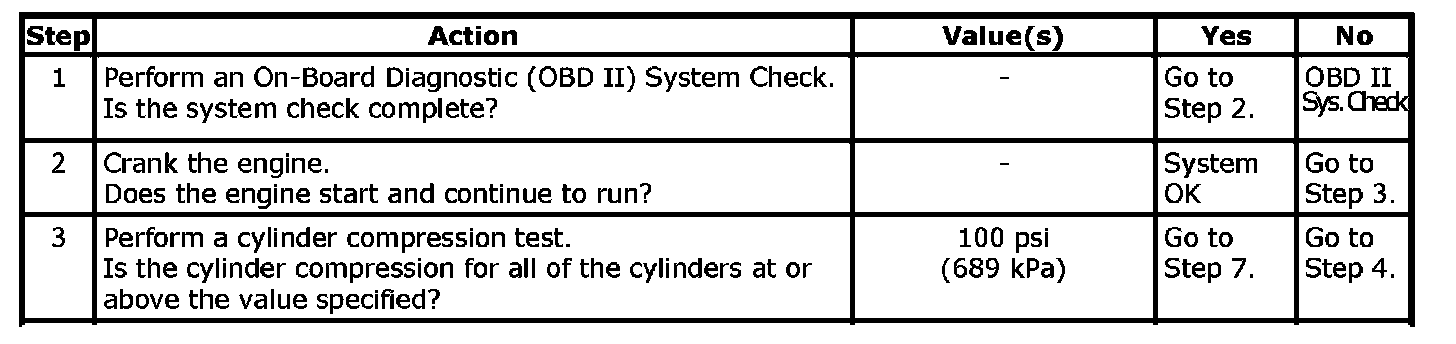

Step 1 - 3:

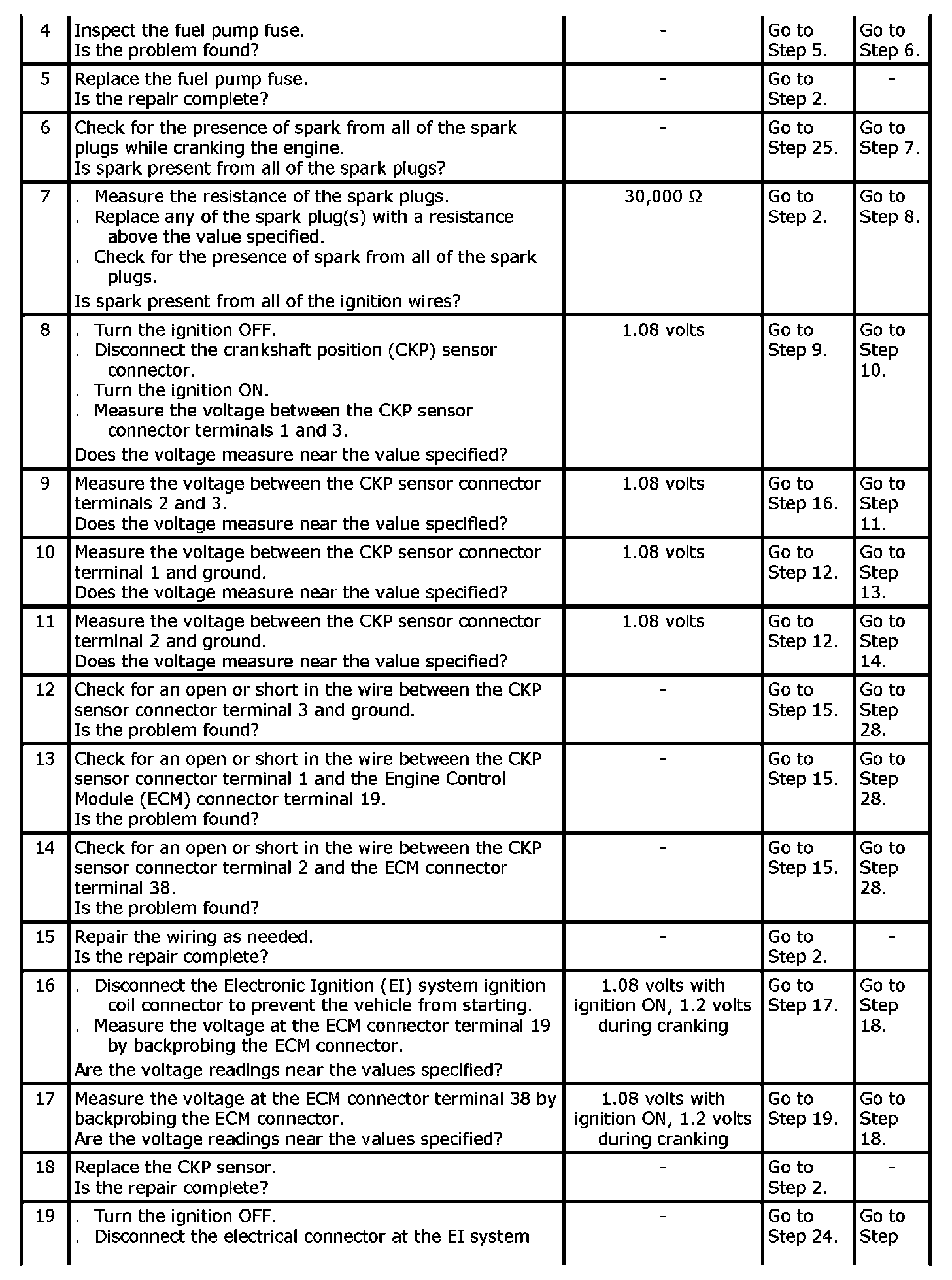

Step 4 - 19:

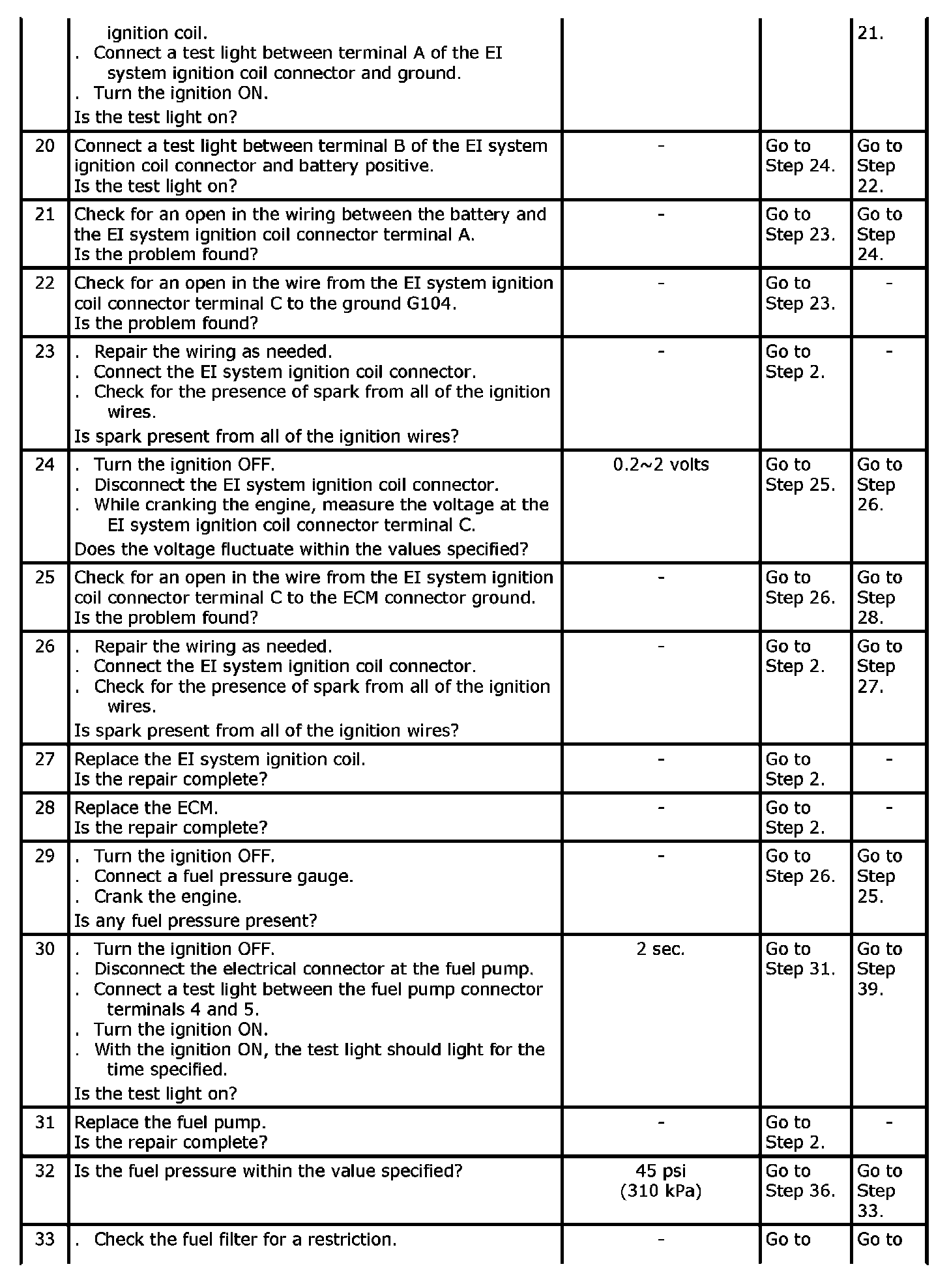

Step 20 - 33:

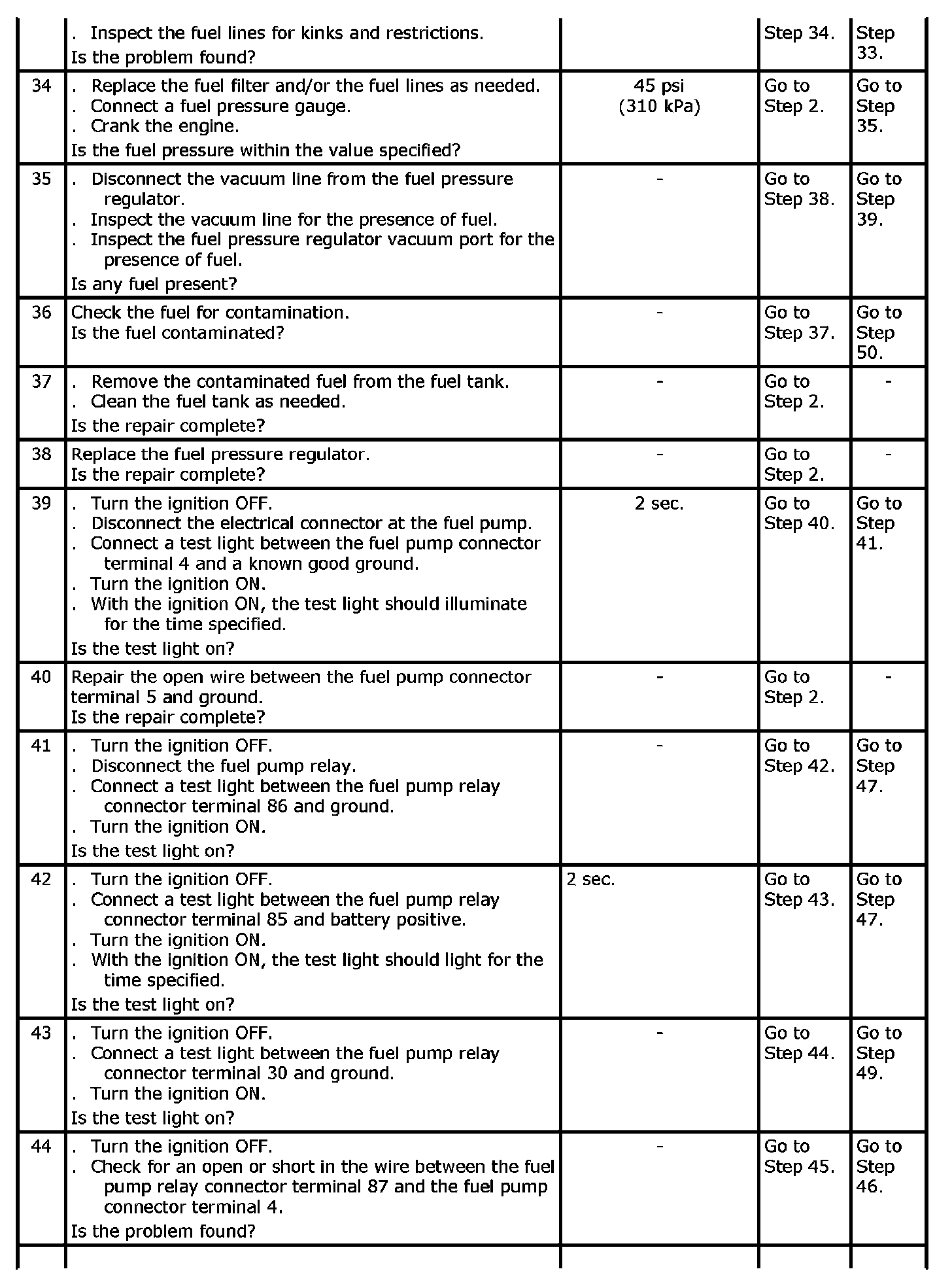

Step 34 - 44:

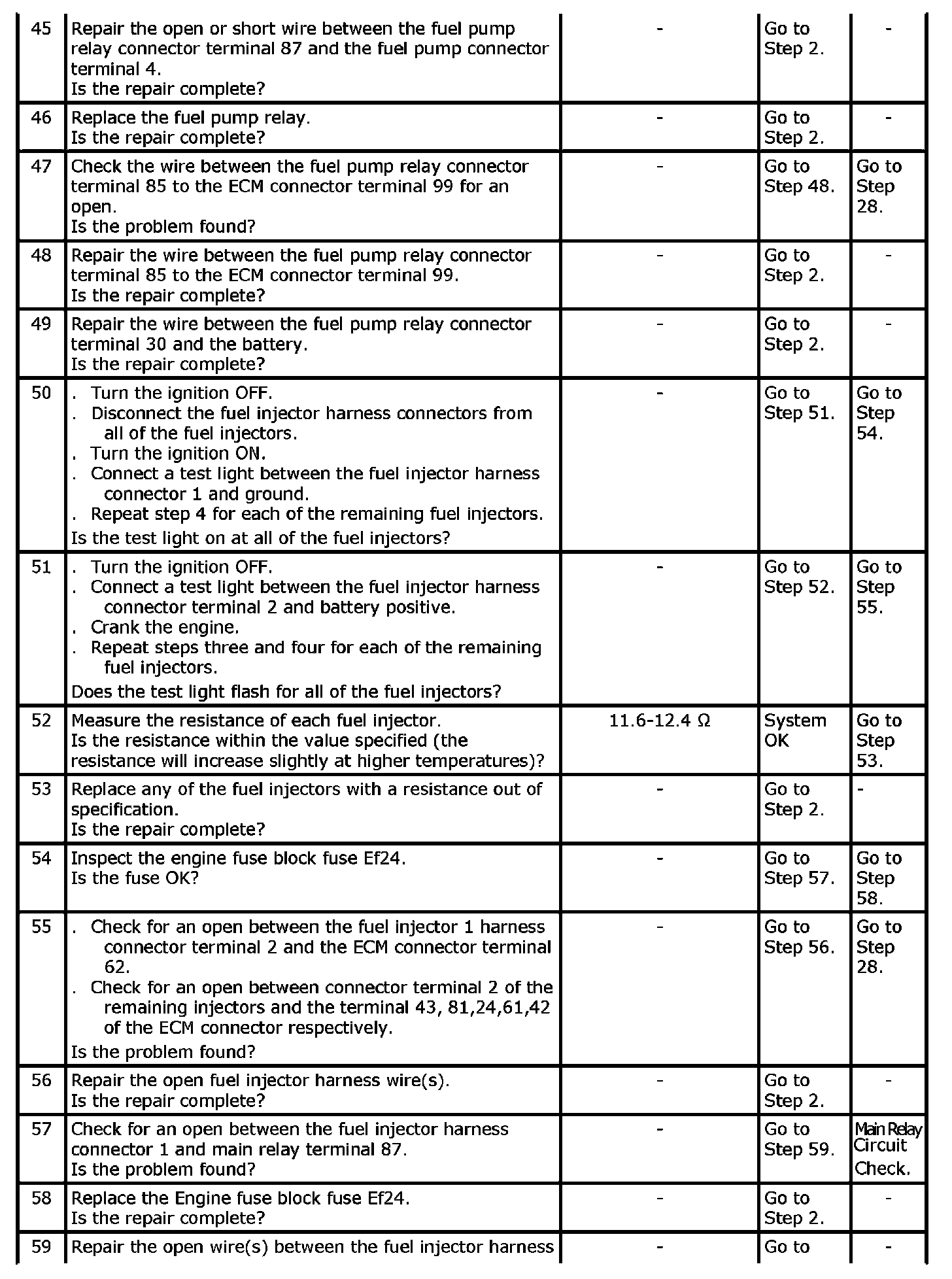

Step 45 - 59:

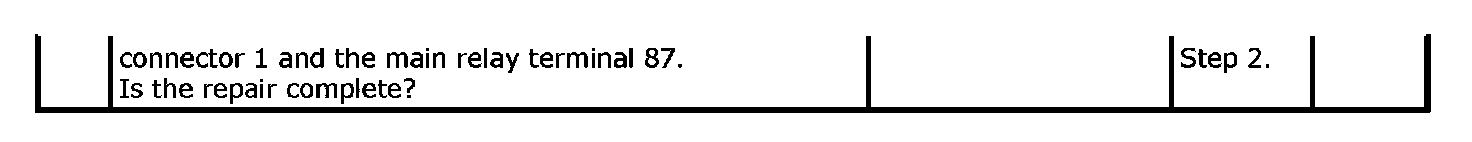

Step 59 (Contd.):

Engine Cranks But Will Not Run

WARNING: Do not pinch or restrict nylon fuel lines. Damage to the lines could cause a fuel leak, resulting in possible fire or personal injury.

CAUTION: Use only electrically insulated pliers when handling ignition wires with the engine running to prevent an electrical shock.
