Malfunction Indicator Lamp On Steady

Malfunction Indicator Lamp On Steady

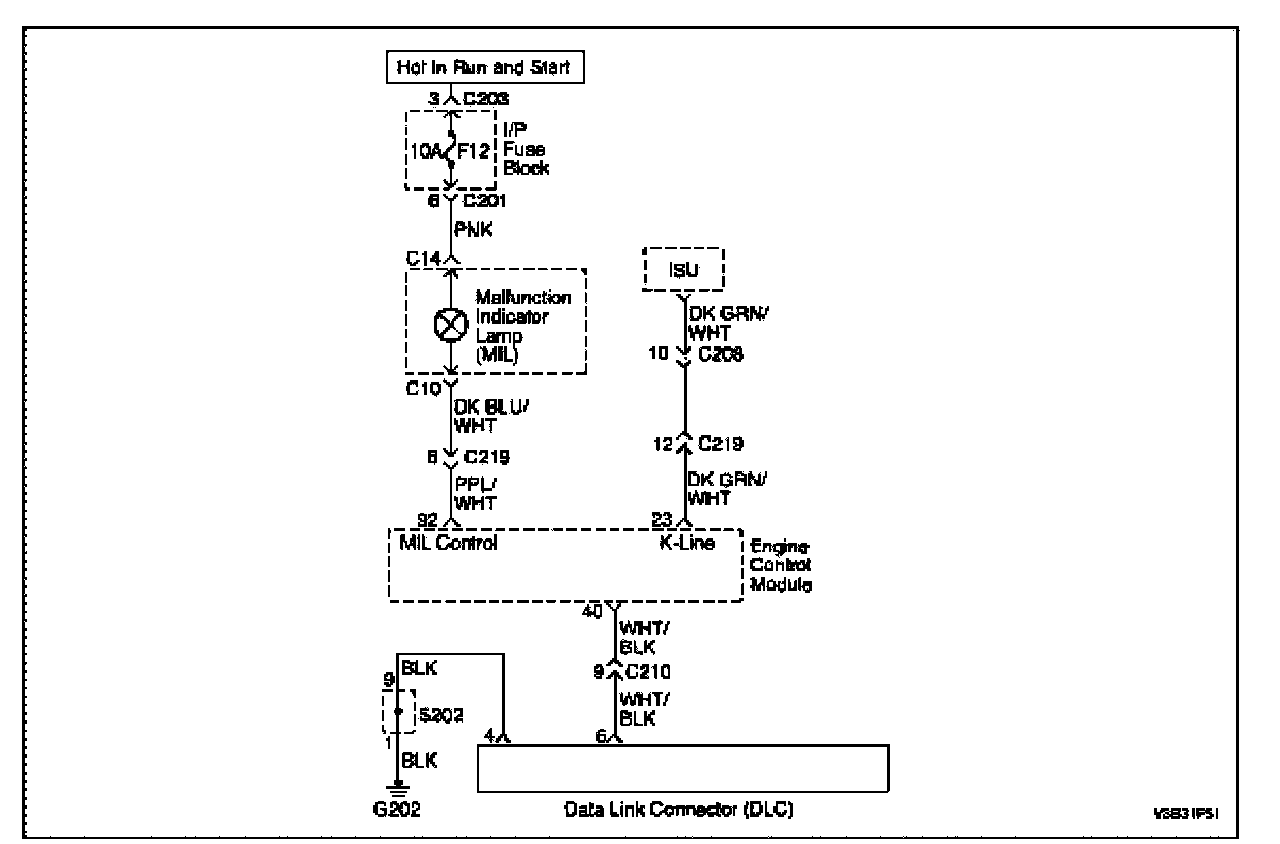

Wiring Diagram:

Circuit Description

When the ignition is turned ON, the Malfunction Indicator Lamp (MIL) will be turned ON and remain ON until the engine is running if no Diagnostic Trouble Codes (DTCs) are stored. Battery voltage is supplied through the ignition switch directly to the MIL telltale. The Engine Control Module (ECM) controls the MIL by providing a ground path through the MIL control circuit to turn ON the MIL.

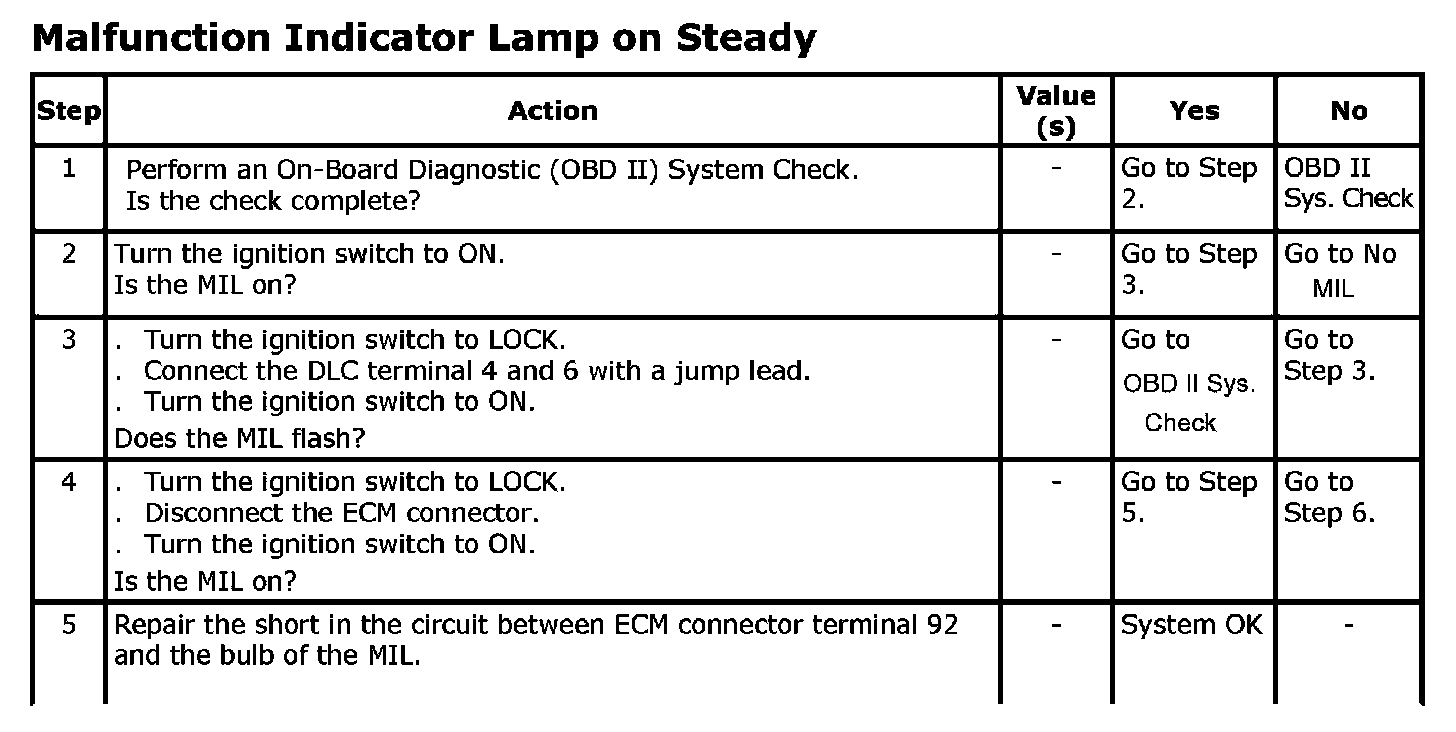

Step 1 - 5:

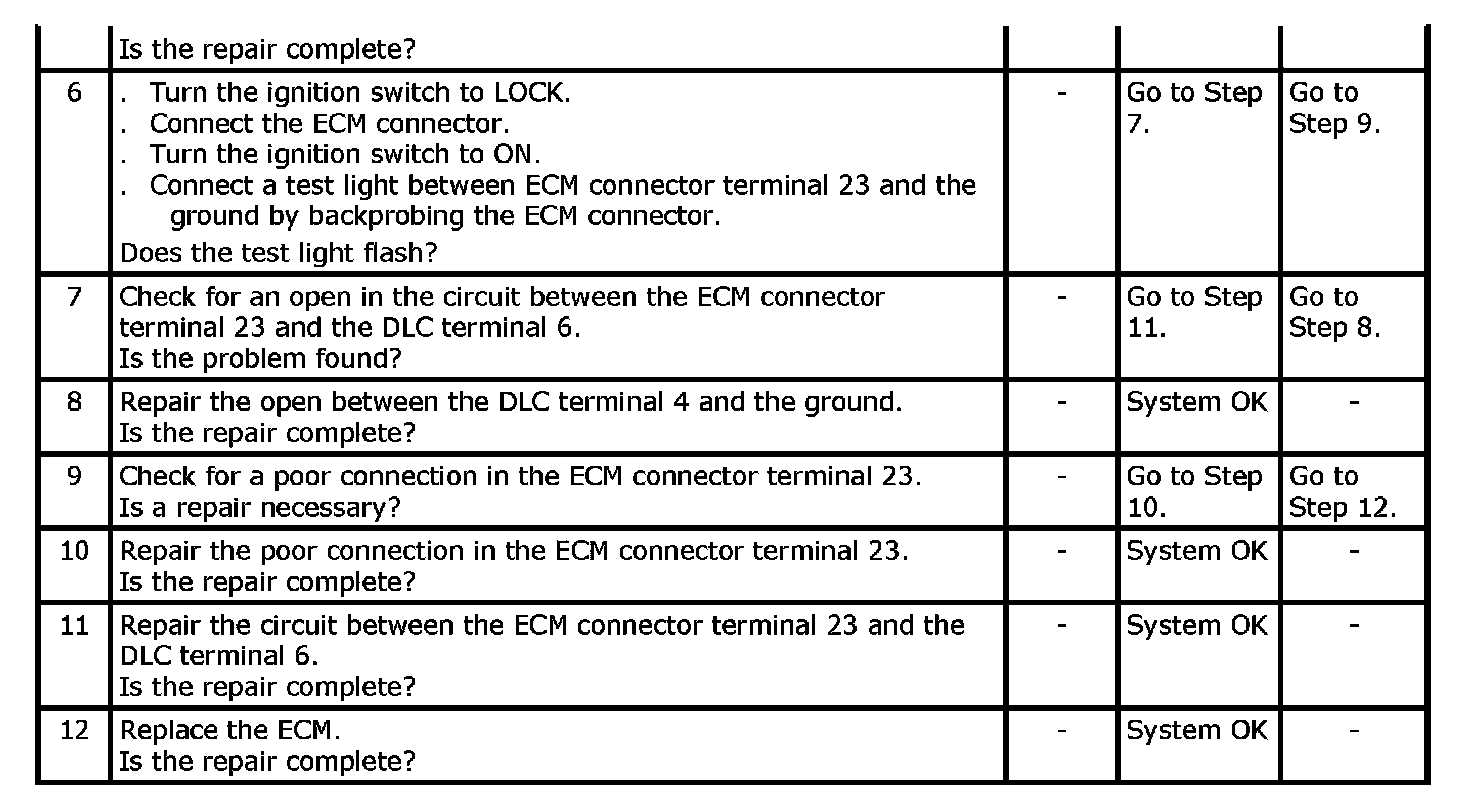

Step 6 - 12:

Malfunction Indicator Lamp on Steady
