Rear

Upper Arm

Removal
1. Raise and suitable support the vehicle.
2. Remove the rear wheels.

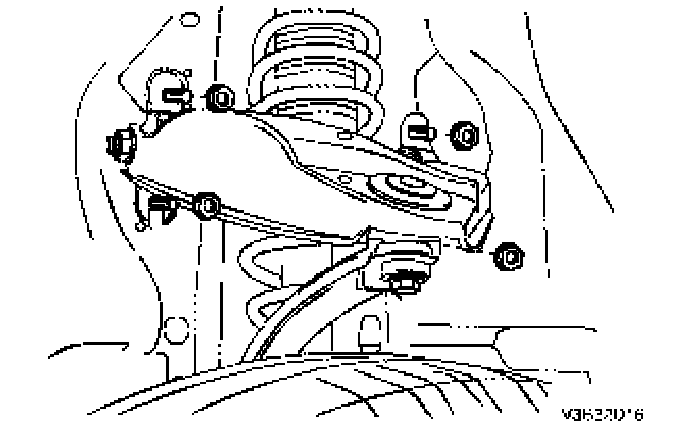

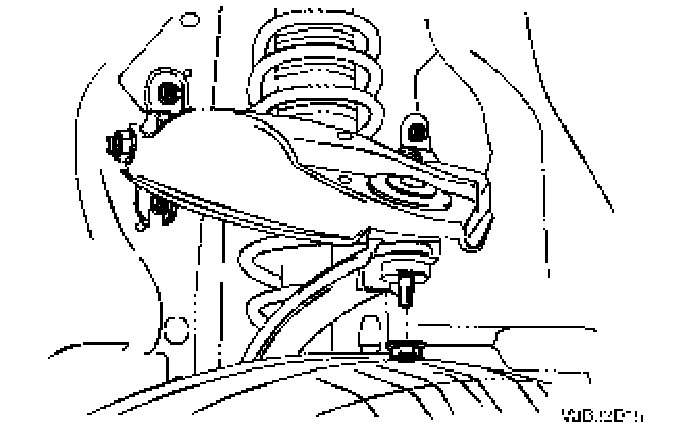

3. Remove the upper arm nut-to-rear knuckle.
4. Remove the nuts upper arm-to-body.

5. Remove the upper arm.

Installation

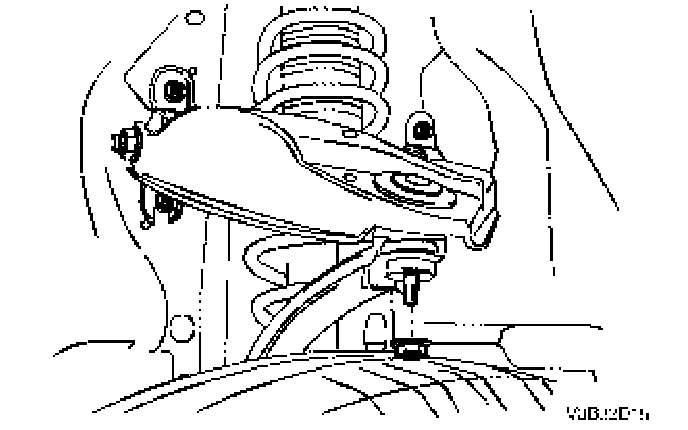

1. Install the upper arm with nuts-to-body.

Tighten: Tighten the upper arm nuts-to-body to 60 Nm (44 ft. lbs.).

2. Install the upper arm nut-to-rear knuckle.

Tighten: Tighten the upper arm nut-to-rear knuckle to 110 Nm (81 ft. lbs.).
