Windshield Washer Hose: Service and Repair

Windshield Washer Hoses Removal and Installation

Windshield Washer Hoses Removal

1. Open the hood.
2. Disconnect the windshield washer hose from the washer nozzles on the hood.
3. Remove the front right wheel. Refer to Wheel Removal.
4. Remove the front wheel well splash shield. Refer to Front Wheel Well Splash Shield Removal.

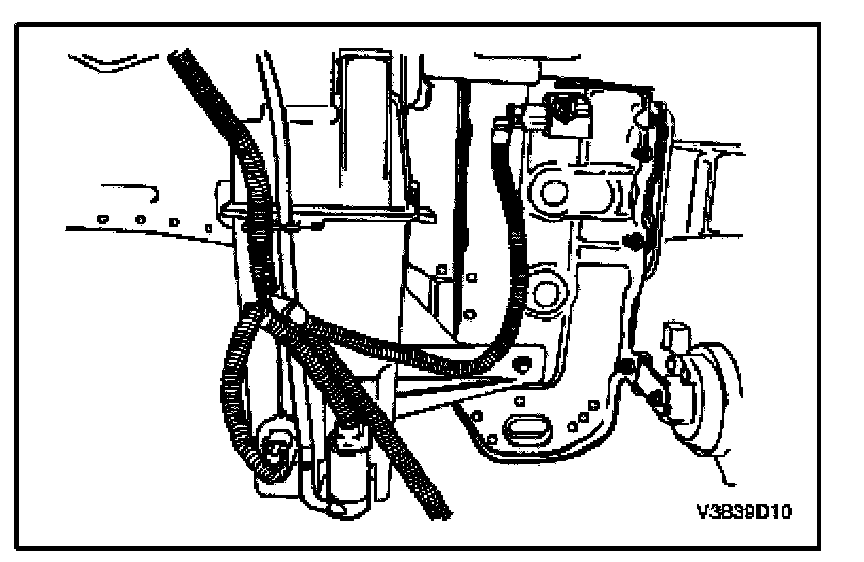

5. Disconnect the washer hose from the washer reservoir.




6. Remove the washer hose.

Windshield Washer Hoses Installation

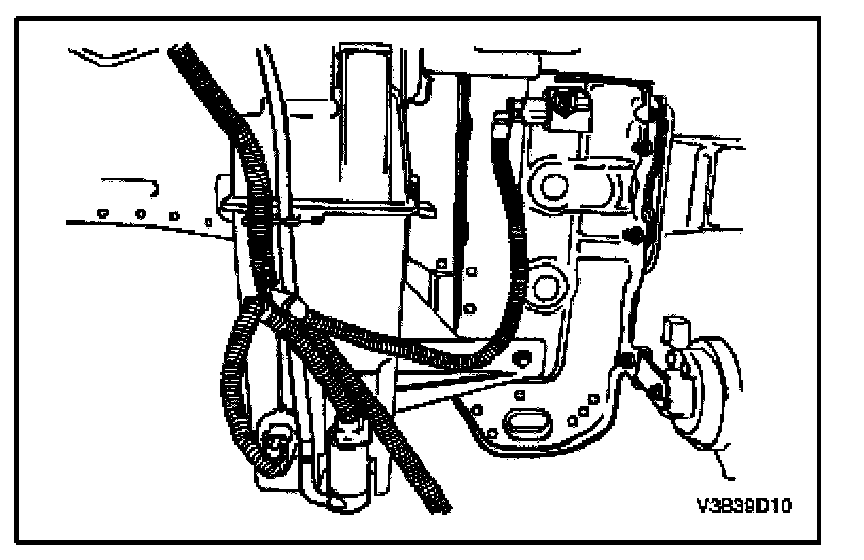

1. Connect the washer hose to the washer pump.
2. Install the front wheel well splash shield. Refer to Front Wheel Well Splash Shield Installation.
3. Install the front right wheel. Refer to Wheel Installation.
4. Connect the windshield washer hose to the washer nozzles on the hood.




5. Close the hood.
