"Air Bag" Warning Lamp Flashes

"AIR BAG" Warning Lamp Flashes

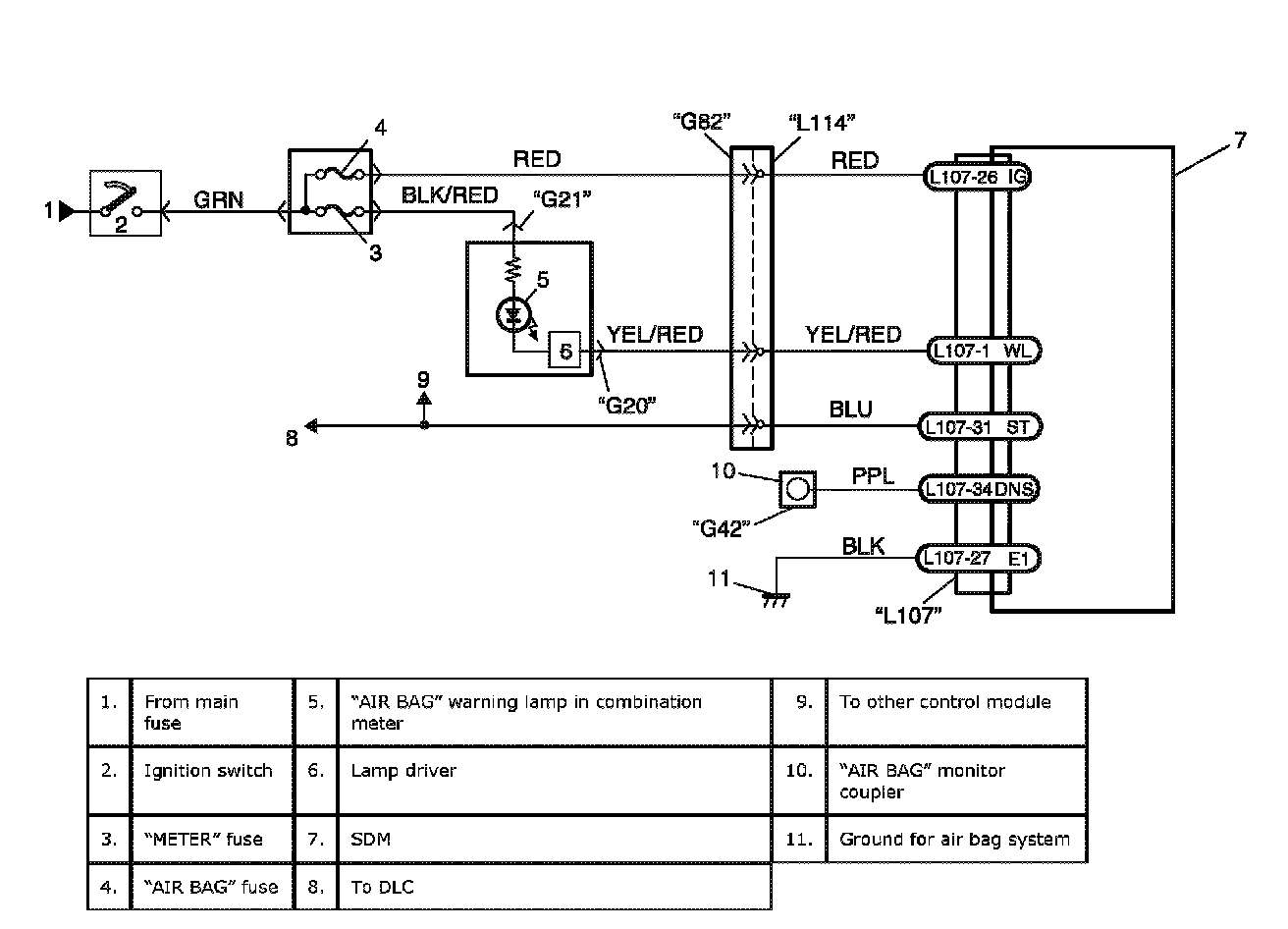

Wiring Diagram:

wiring diagram

CAUTION:
- Be sure to perform Air Bag Diagnostic System Check before starting diagnosis according to flow.
- When measurement of resistance or voltage is required in this flow, use a tester along with a correct terminal adapter from special tool (Connector test adapter kit).
- When a check for proper connection is required, refer to Inspection of Intermittent and Poor Connections.
- If there is open circuit in the air bag wire harness, connector or terminal is found damaged, replace the wire harness, connector and terminal as an assembly.

NOTE: When OCM is replaced with a new one and ignition switch is turned on, the "AIR BAG" warning lamp keeps on flashing. At this time, be sure to perform rezeroing of the passenger seat occupant classification system.

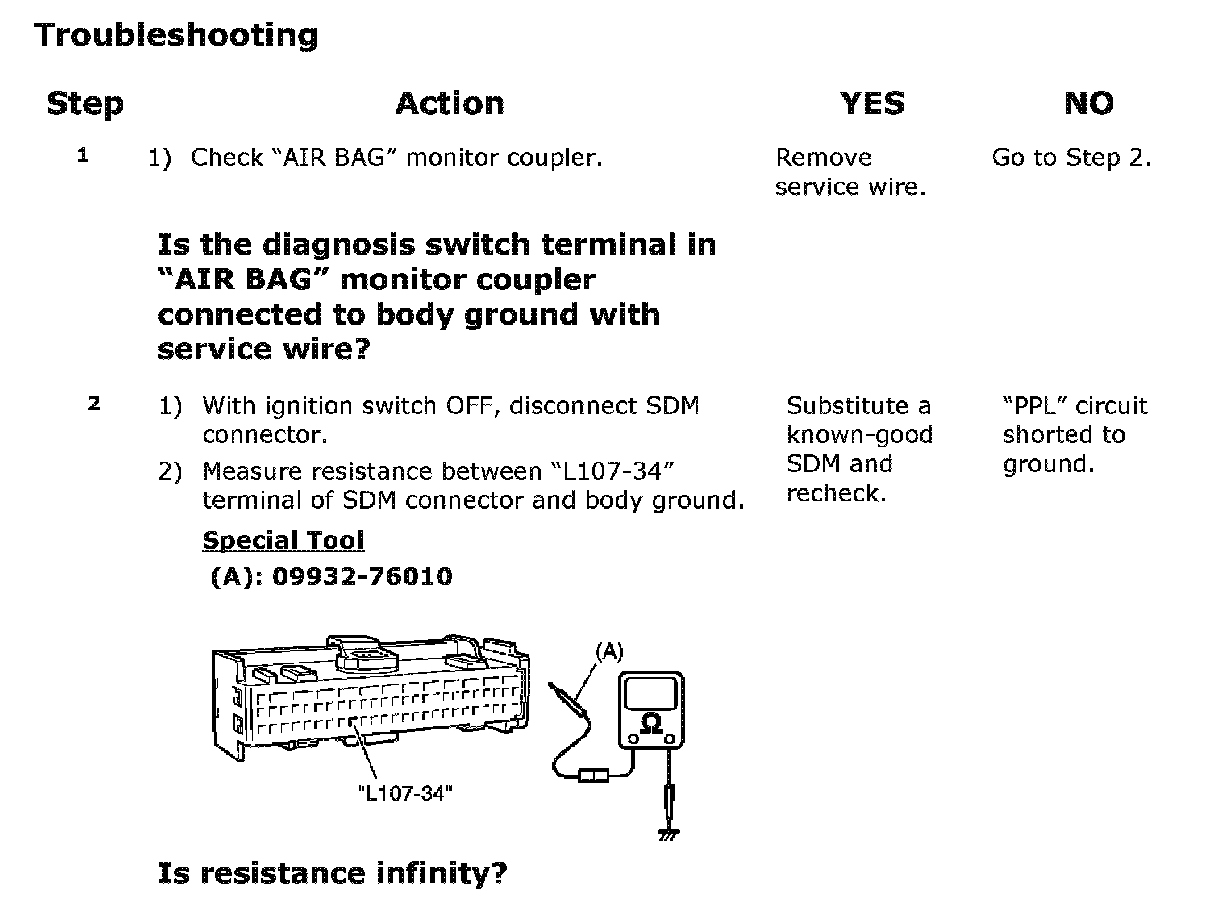

Flow Test Description

Step 1 - 2:

Step 1: Check "AIR BAG" monitor coupler.
Step 2: Check diagnosis switch circuit for air bag system.

NOTE: Upon completion of inspection and repair work, perform the following items.
- Reconnect all air bag system components and ensure all components are properly mounted.
- Repeat Air Bag Diagnostic System Check to confirm that the trouble has been corrected.
