Blower Motor Resistor: Testing and Inspection

Rear Blower Motor Resistor Inspection

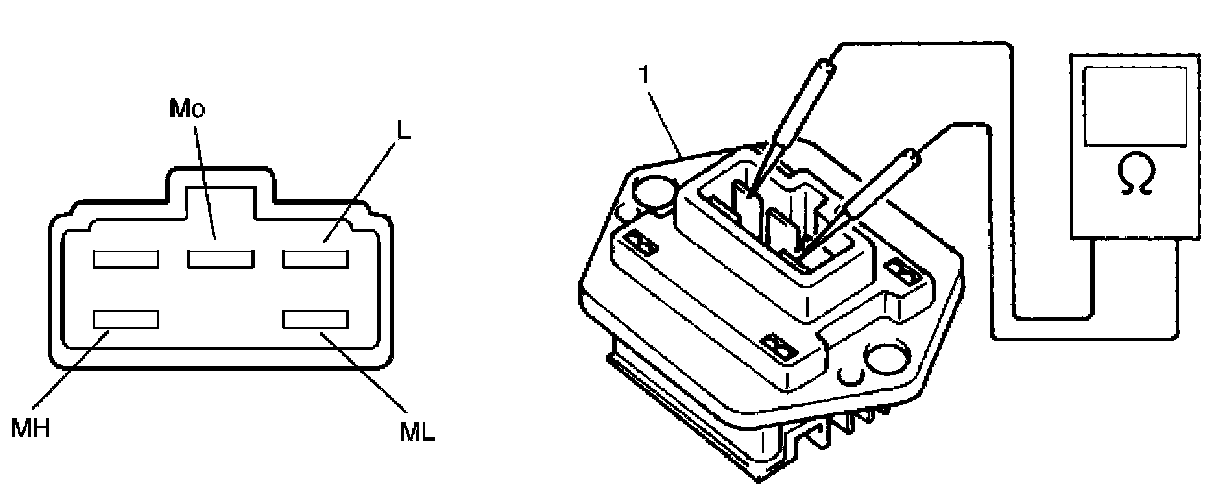

Measure each terminal-to-terminal resistance.
If measured resistance is incorrect, replace rear blower motor resistor (1).

Rear blower motor resister resistance
"Mo" - "L": Approx. 2.4 Ohms
"Mo" - "ML": Approx. 1.2 Ohms
"Mo" - "MH": Approx. 0.6 Ohms
