Blower Motor Controller

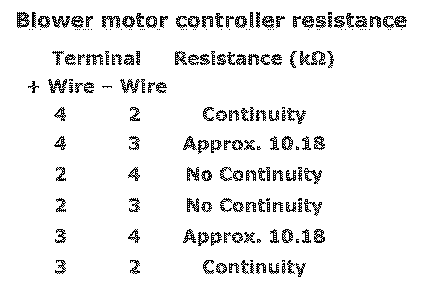

Blower Motor Controller InspectionBlower Motor Controller Resistance:

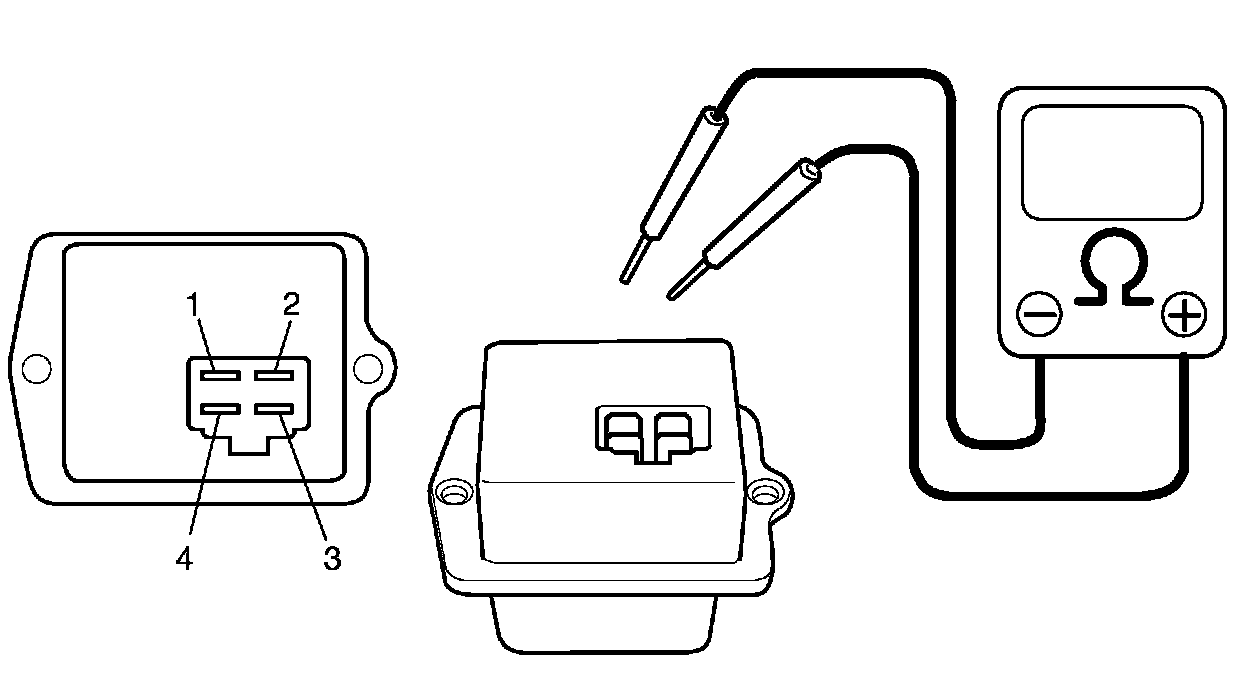

Measure each terminal-to-terminal resistance on blower motor controller.
If measured resistance is incorrect, replace blower motor controller with new one.
