Locations
>>
Connector Locations
>>
C Connector
C Connector

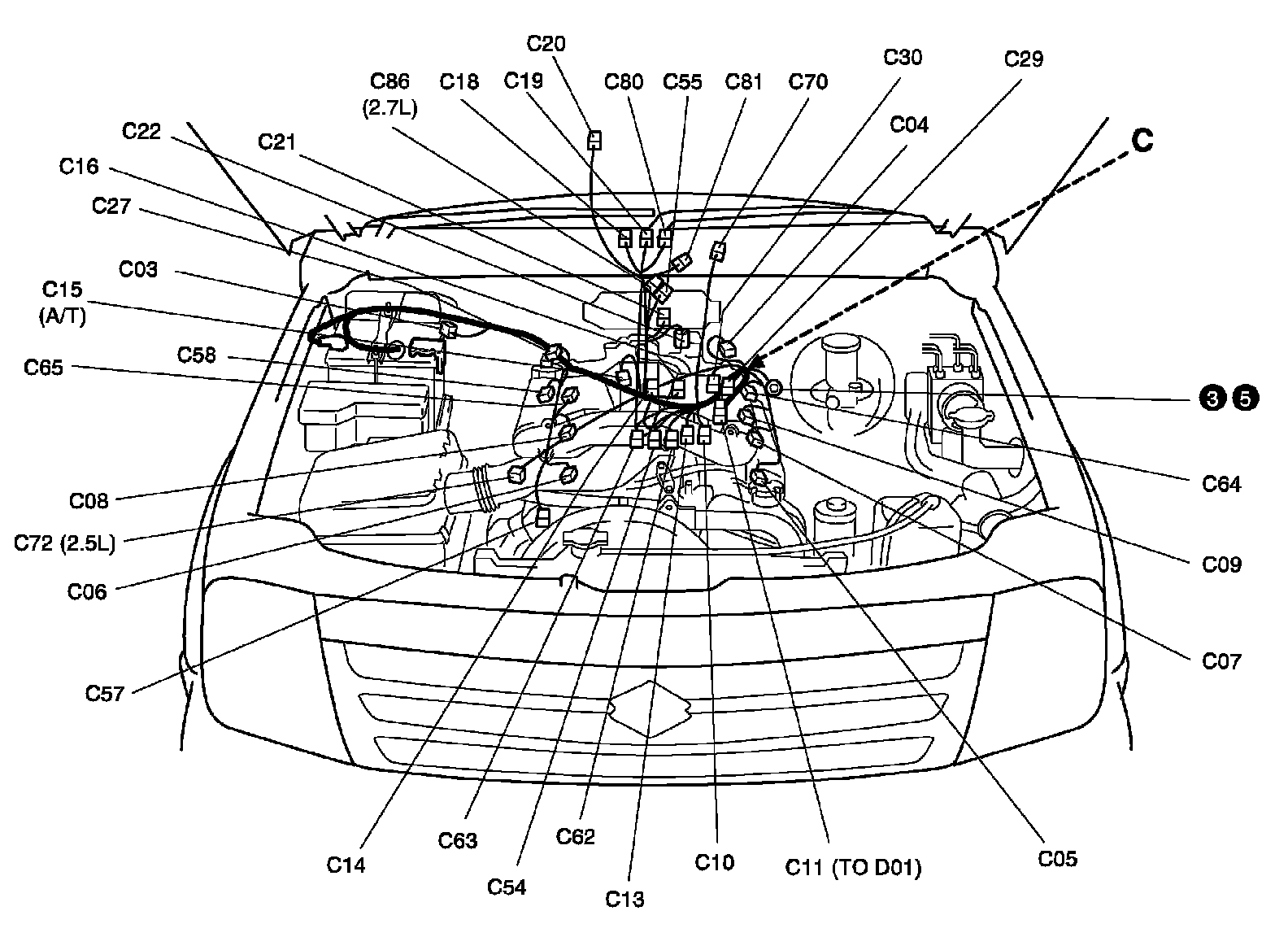

C: Engine Harness View:

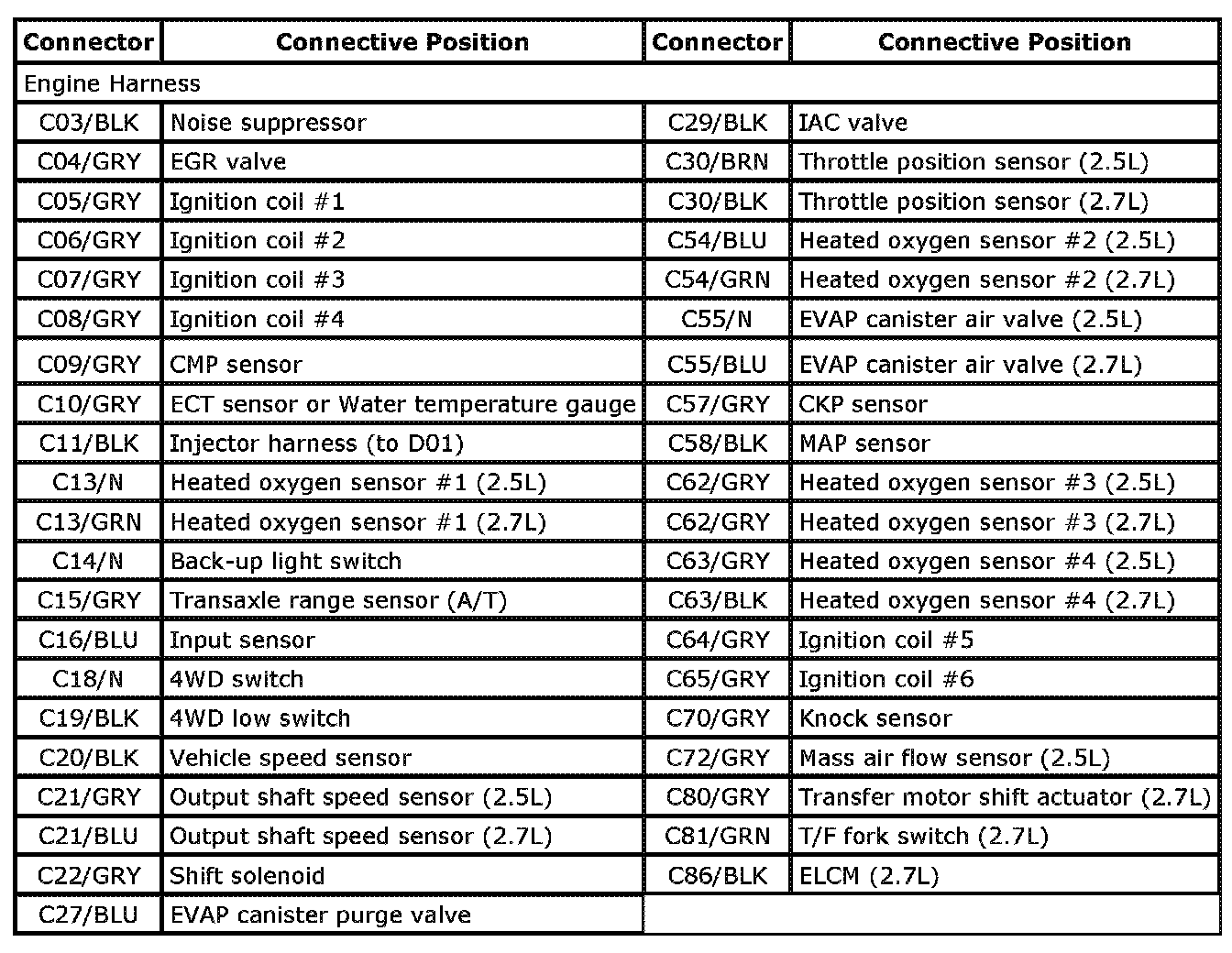

C: Engine Harness Index:

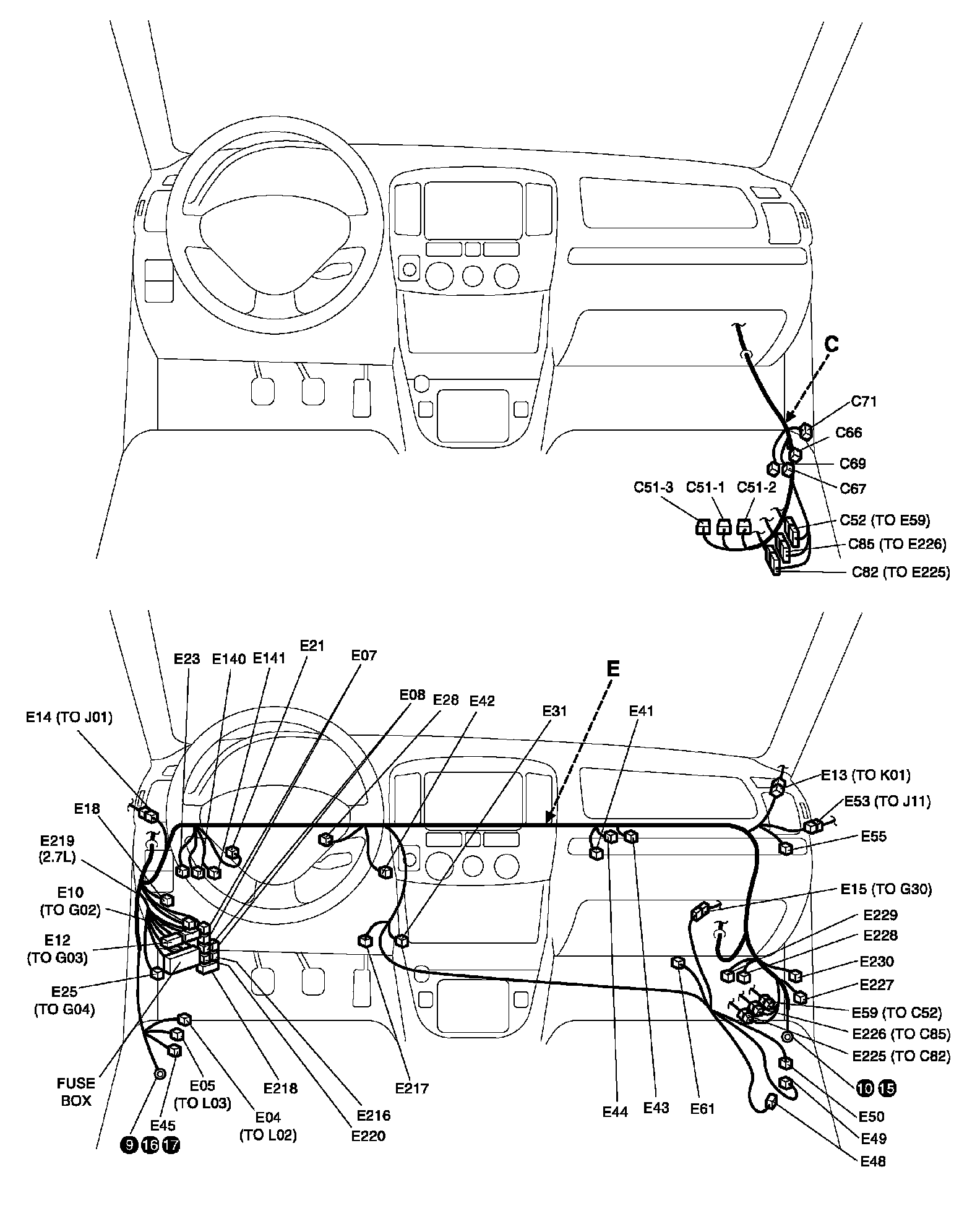

C: Engine harness / E: Main harness View:

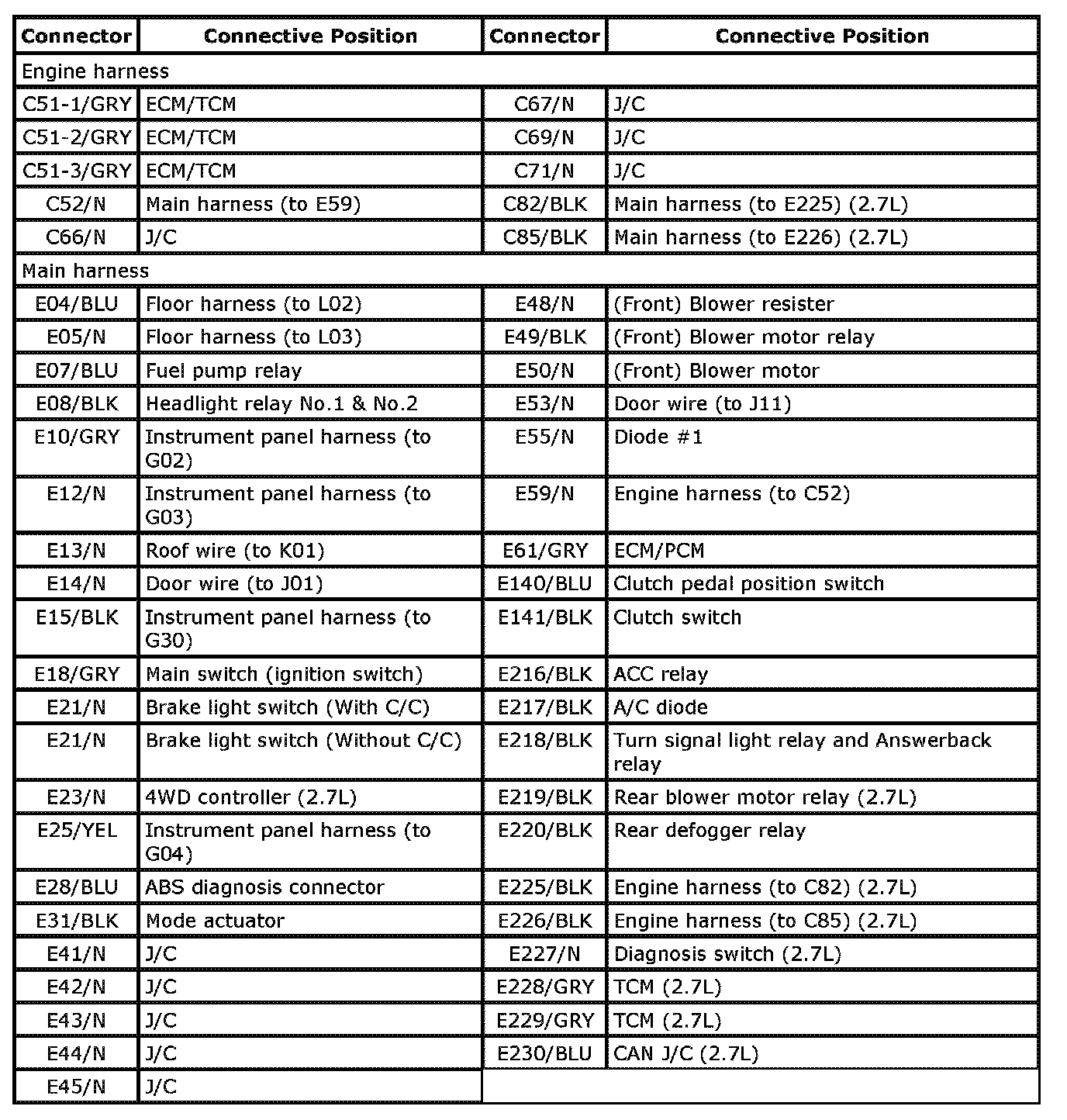

C: Engine harness / E: Main harness Index:
