Description of On-Board Diagnostics
>>
Fail-Safe Table
Fail-Safe Table
Fail-Safe Table

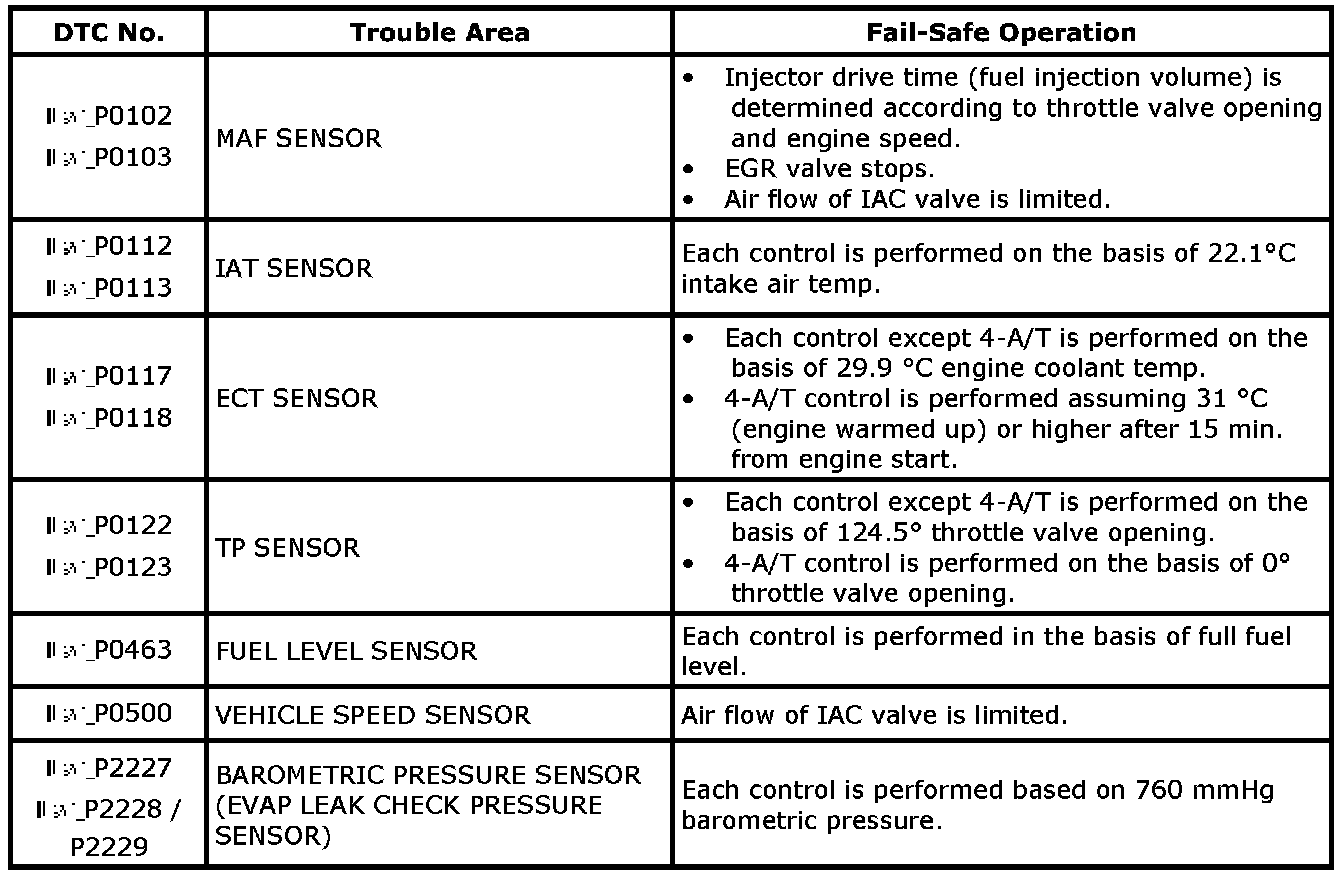

Fail-Safe Table:
When any of the following DTCs is detected, ECM enters fail-safe mode as long as malfunction continues to exist but that mode is canceled when ECM detects normal condition after that.
