Refueling Control Valve: Testing and Inspection

Vapor Control Valve Inspection




1. Check refuel vapor control valve for damage.

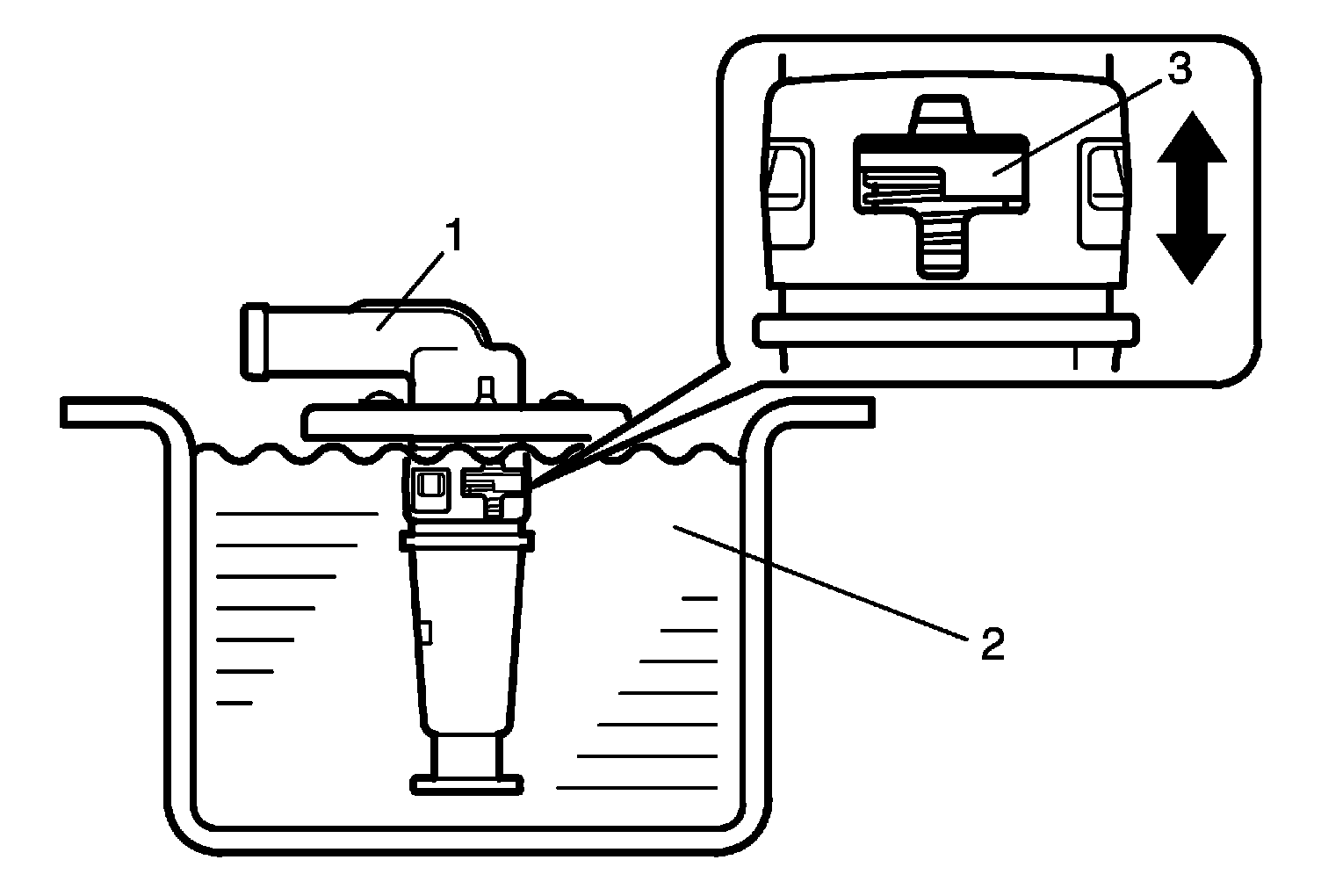

2. Put refuel vapor control valve (1) in kerosene (2), and then check if float (3) moves smoothly to contact valve seat. If found malfunctioning, replace.
