Lamp (License Plate, Side Marker and Front/Rear Position) Circuit: Notchback
Lamp (License Plate, Side Marker and Front/Rear Position) Circuit: Notchback

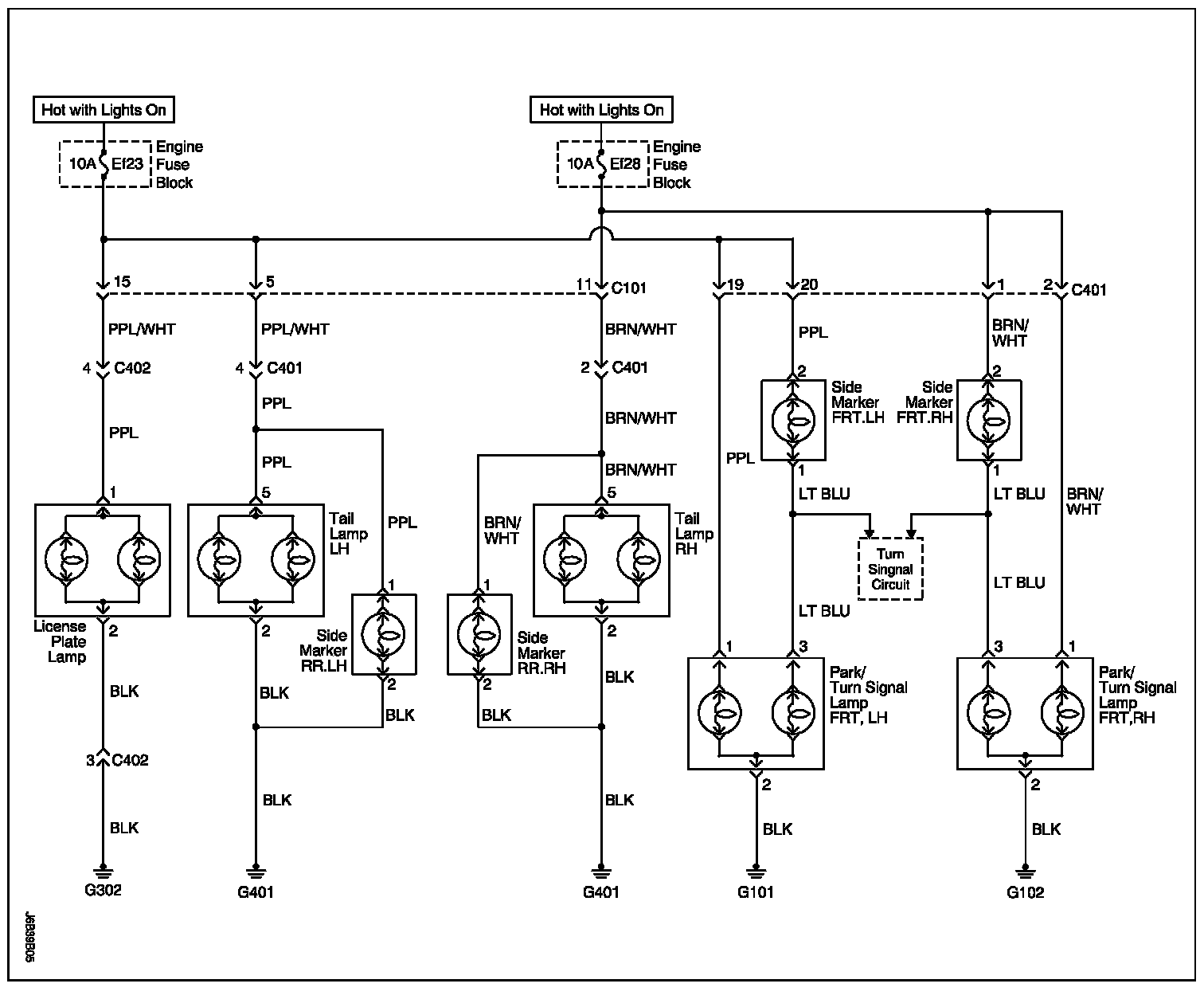

Park, Tail and License Lamps Circuit Diagram (For NOTCHBACK Model):
