Operation CHARM
: Car repair manuals for everyone.
Home
>>
Suzuki
>>
2008
>>
XL-7 2WD V6-3.6L
>>
Repair and Diagnosis
>>
Diagrams
>>

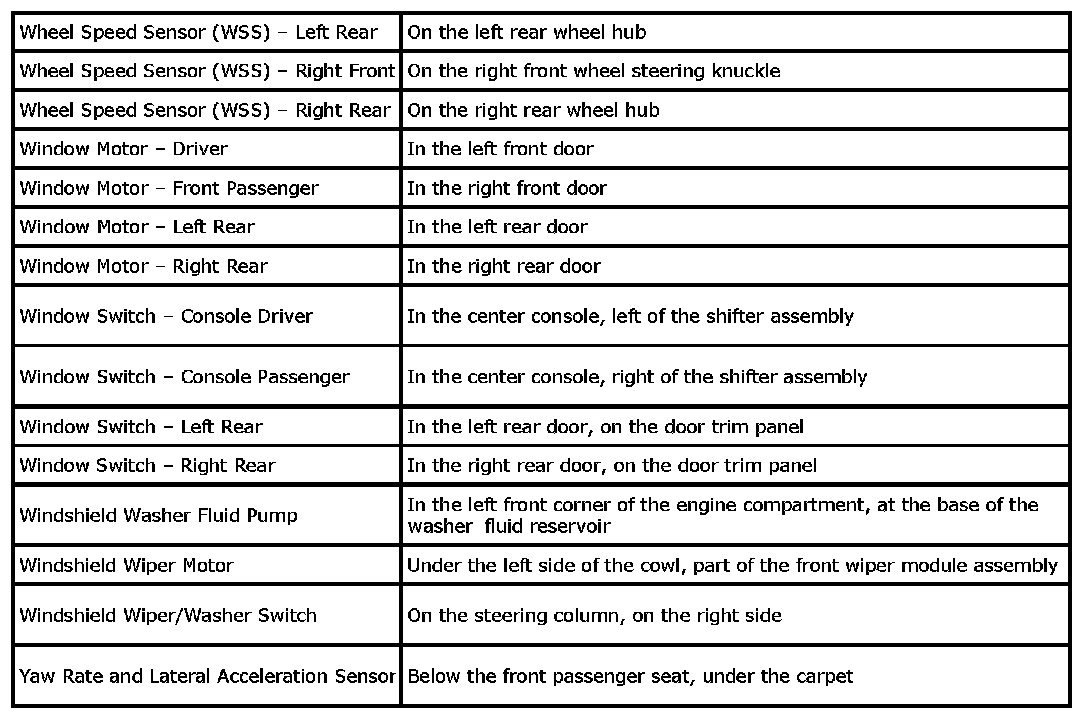

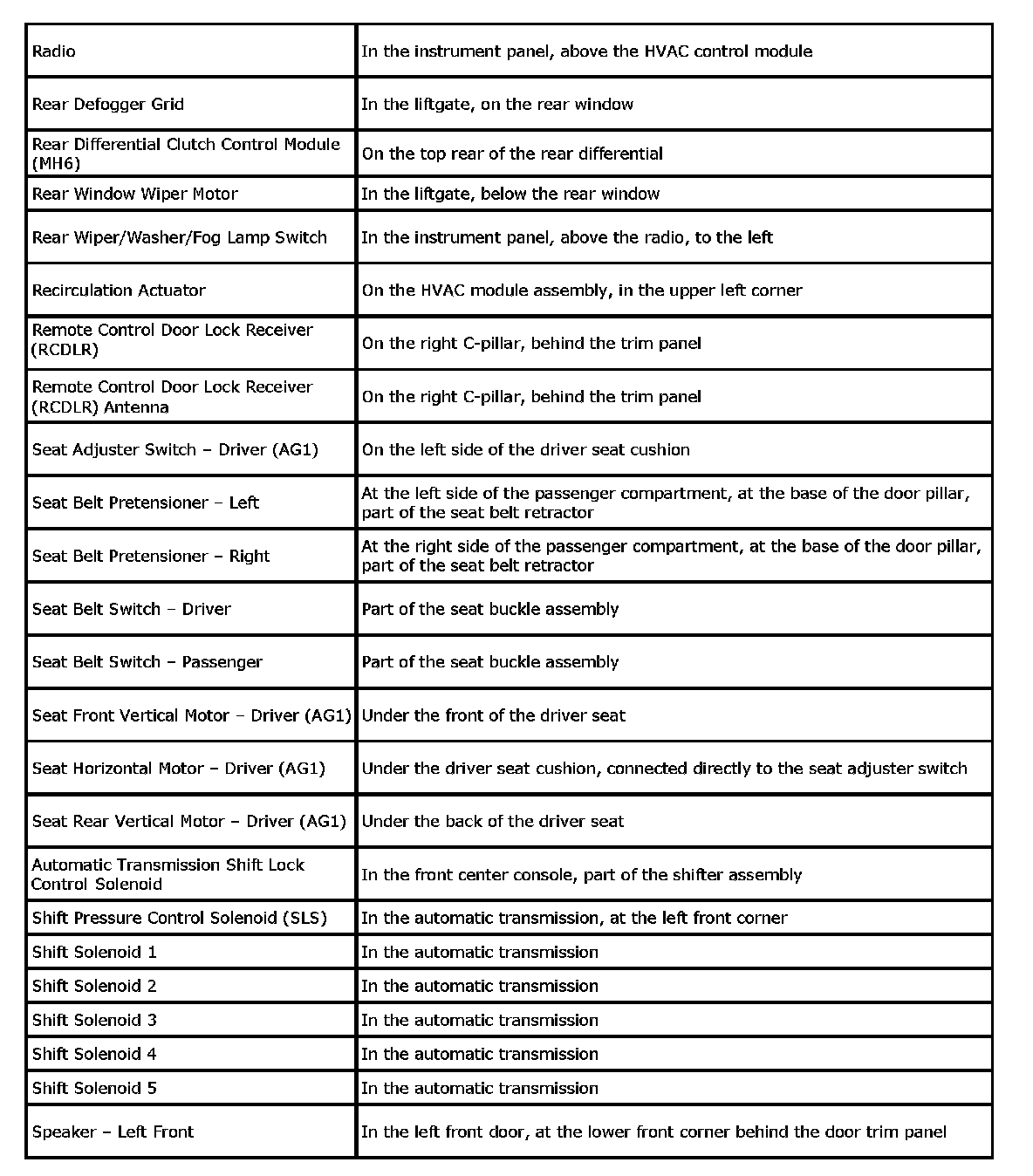

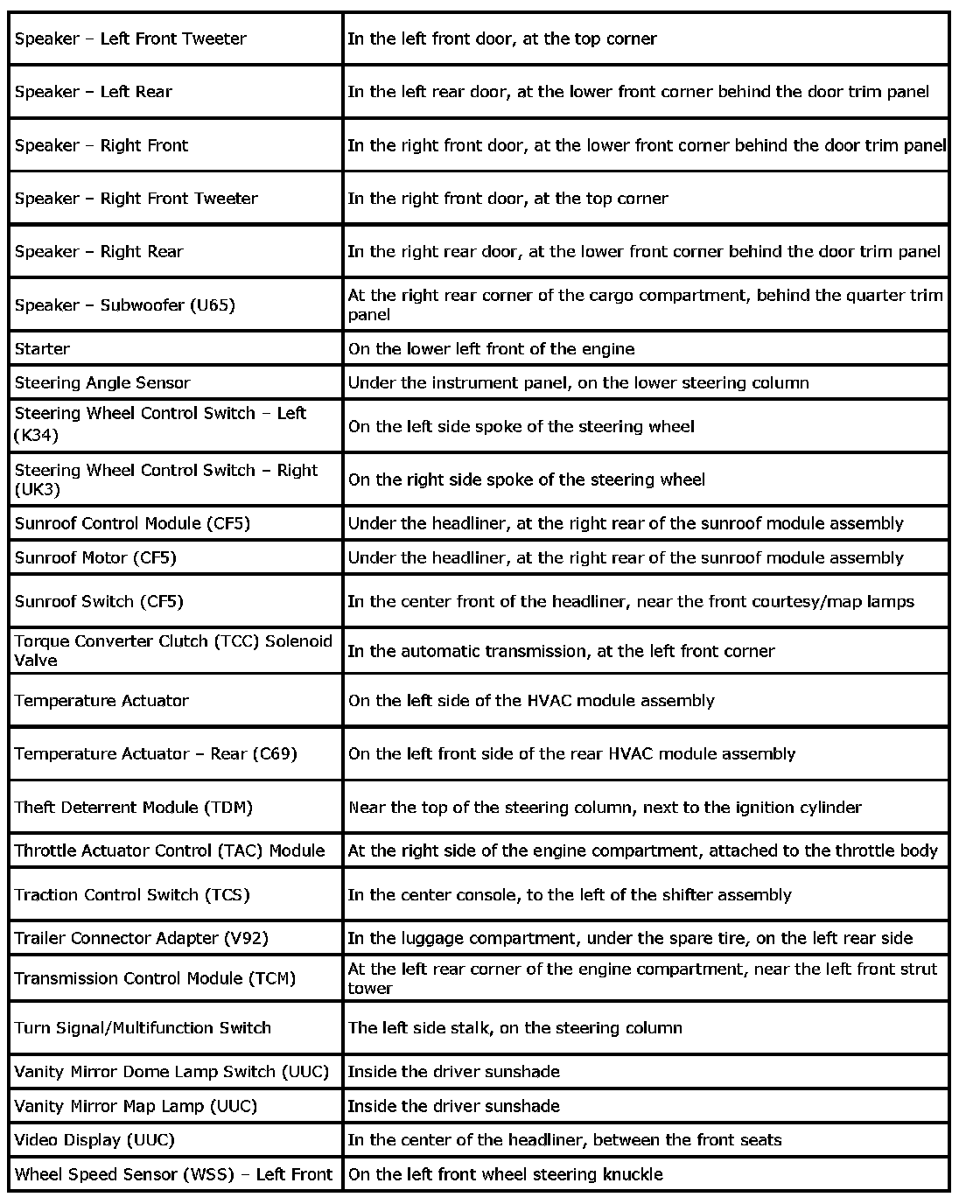

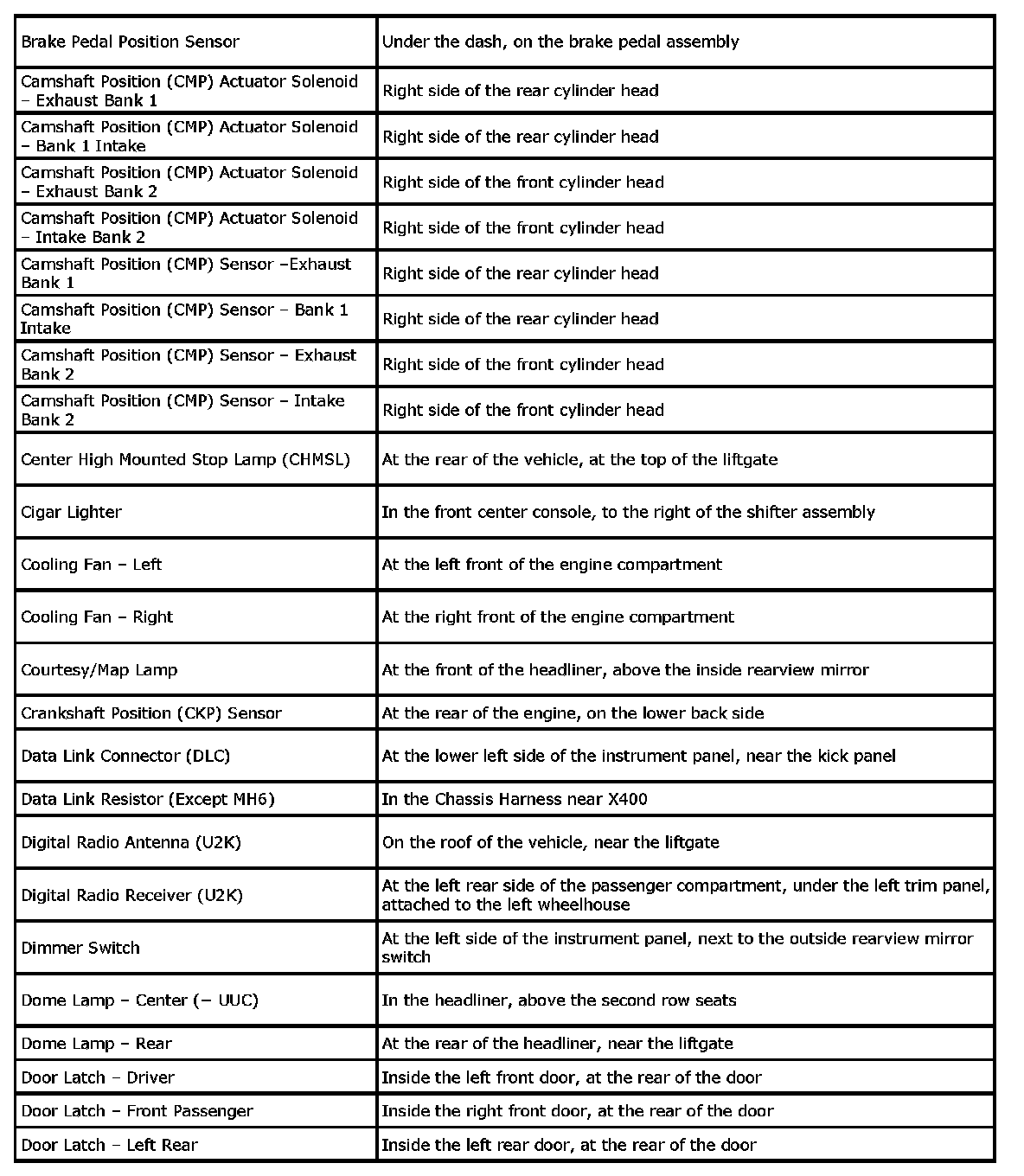

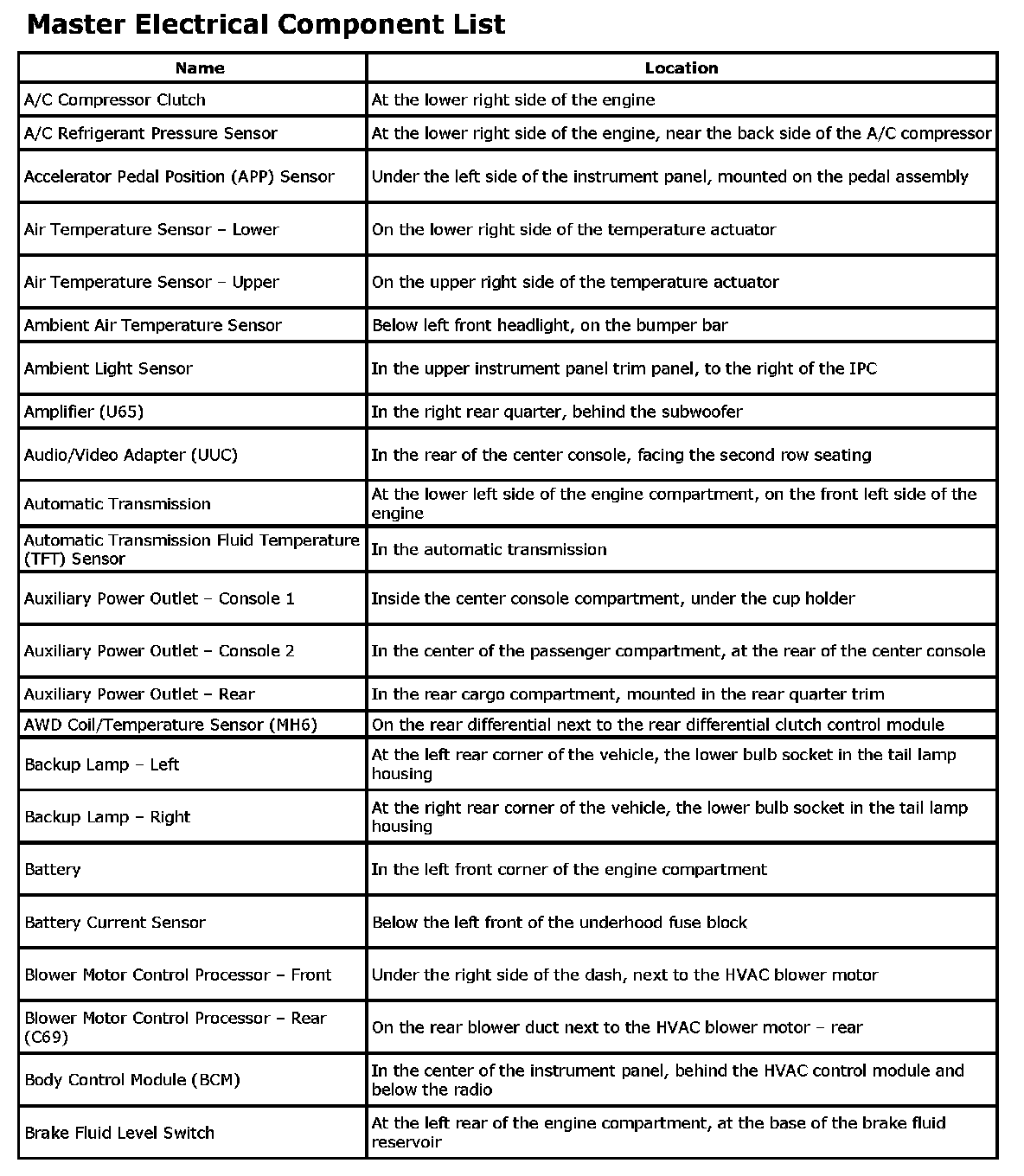

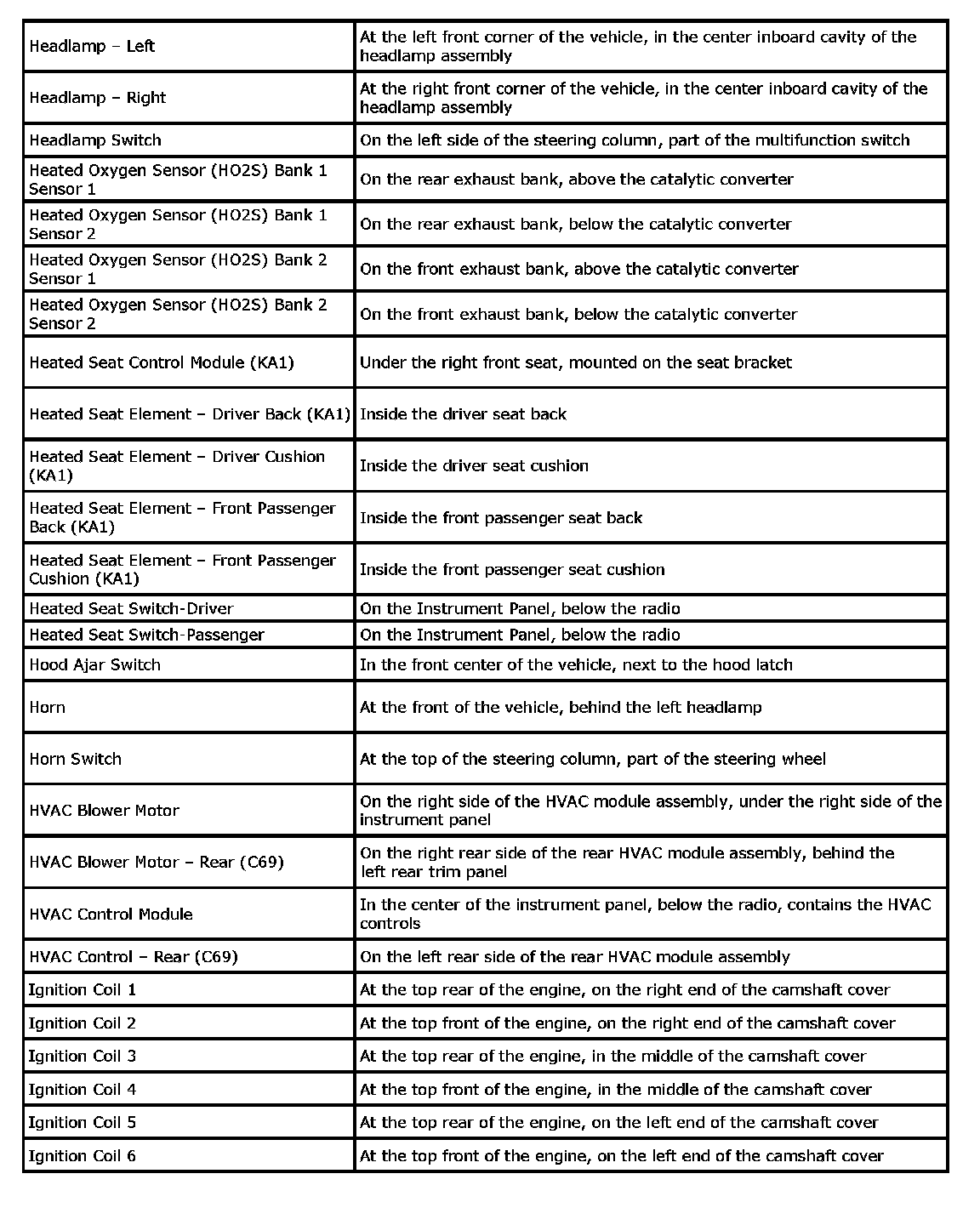

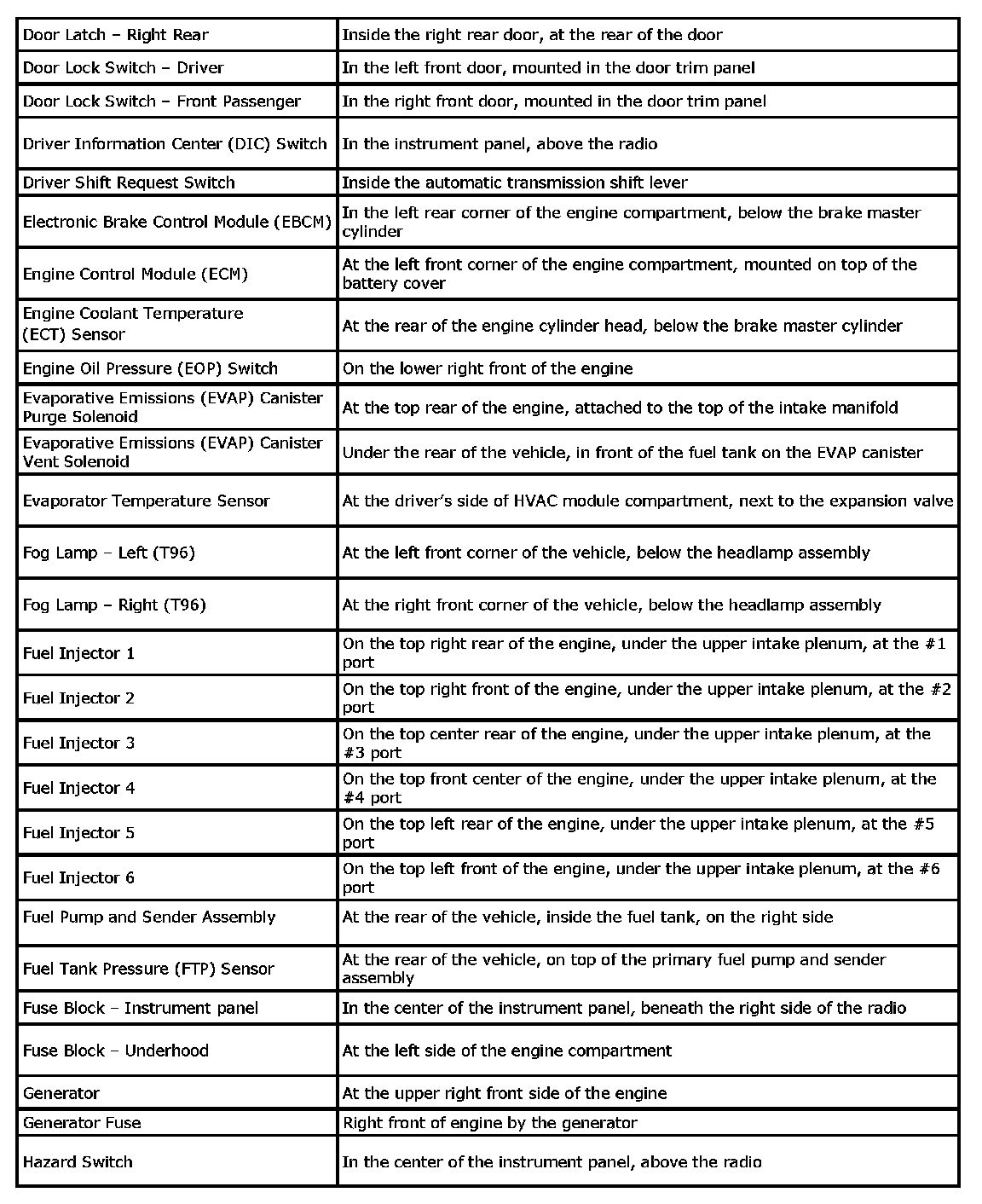

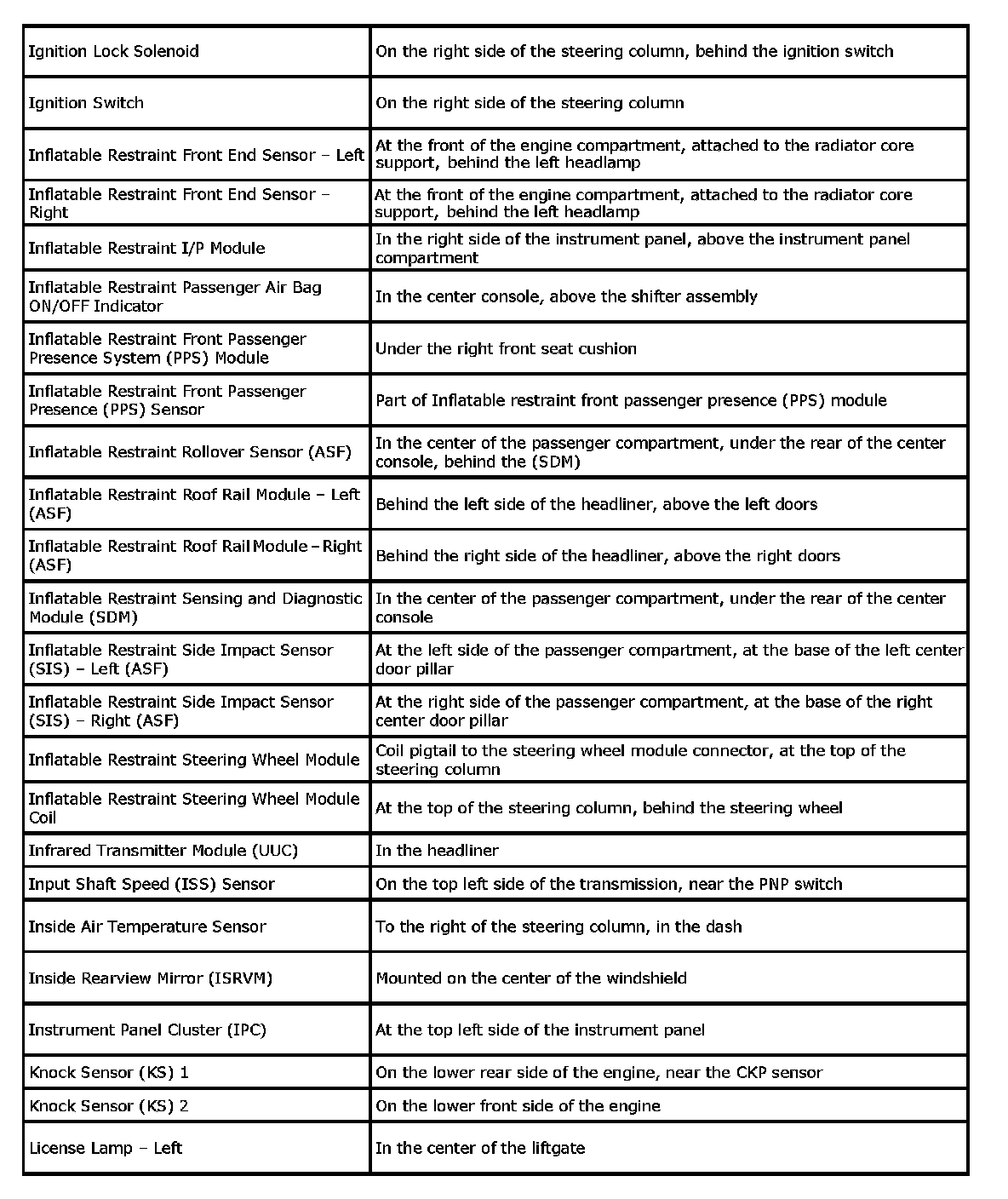

Components
Components
A/C - Br:
Br - Do:
Do - Ha:
He - Ig:
Ig - Li:
Li - Pa:
Ra - Sp:
Sp - Wh:
Wh - Ya:
