Amplifier, Sound System

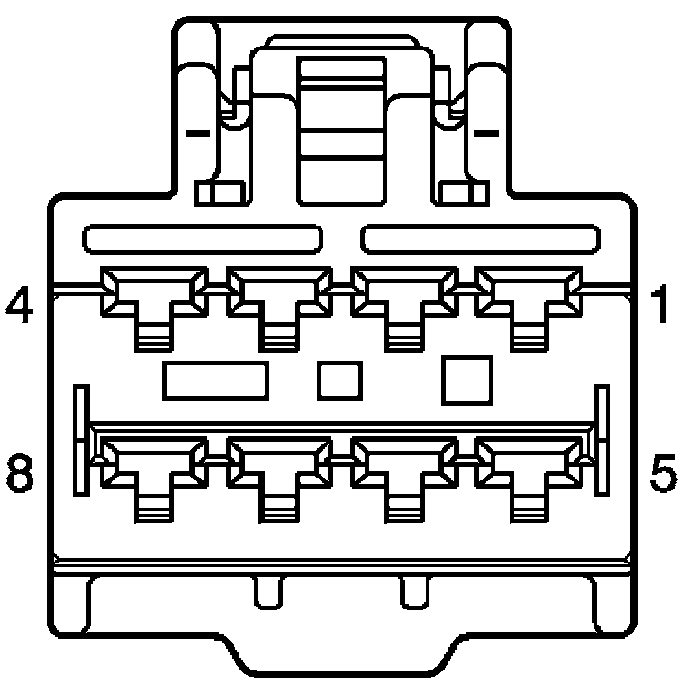

Amplifier X1 (U65)






Connector Part Information
OEM: 6098-4713
Service: 88988652
Description: 8-Way F 2.8 Series (BK)

Terminal Part Information
Pins: 1-4
Terminal/Tray: 8100-4444/22
Core/Insulation Crimp: 2/A
Release Tool/Test Probe: 15315247/J-35616-35 (VT)
Pins: 5, 8
Terminal/Tray: 8100-4445/22
Core/Insulation Crimp: 4/4
Release Tool/Test Probe: 15315247/J-35616-35 (VT)

Amplifier X1 (U65):

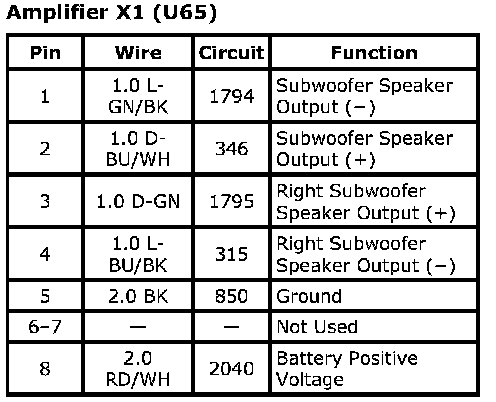

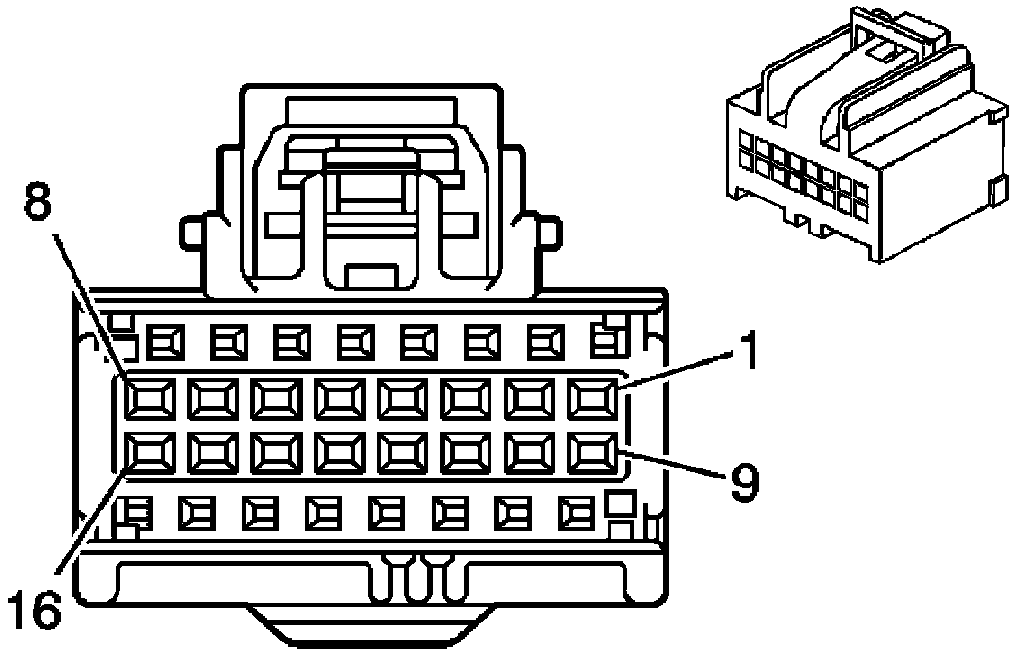

Amplifier X2 (U65)






Connector Part Information
OEM: 7283-5534-60
Service: 89047090
Description: 16-Way M YESC/USCAR Class II Sealed Series (GN)

Terminal Part Information
Terminal/Tray: 7116-4101-08/9
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 12094430/J-35616-2A (GY)

Amplifier X2 (U65):

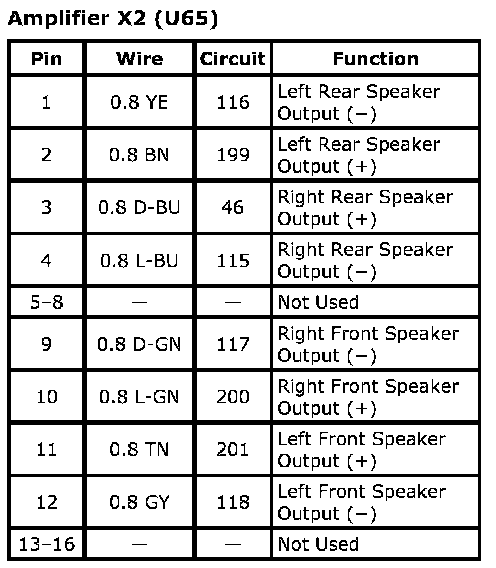

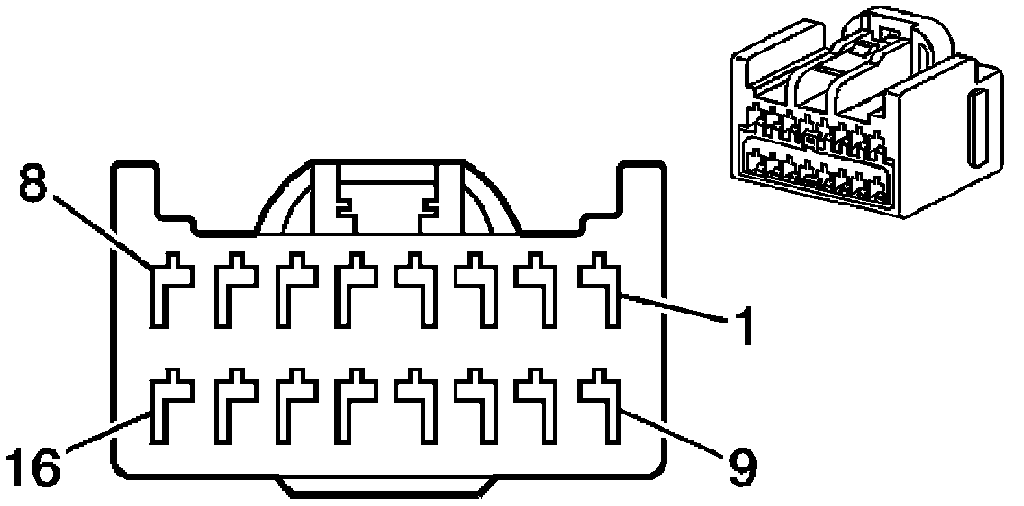

Amplifier X3 (U65)






Connector Part Information
OEM: 7283-9076-30
Service: See Catalog
Description: 16-Way F 0.64 Sealed (BK)

Terminal Part Information
Terminal/Tray: 7116-4618-02/14
Core/Insulation Crimp: P/P
Release Tool/Test Probe: J-38125-215/J-35616-64B (L-BU)

Amplifier X3 (U65):
