Alternator

Generator (LY7)

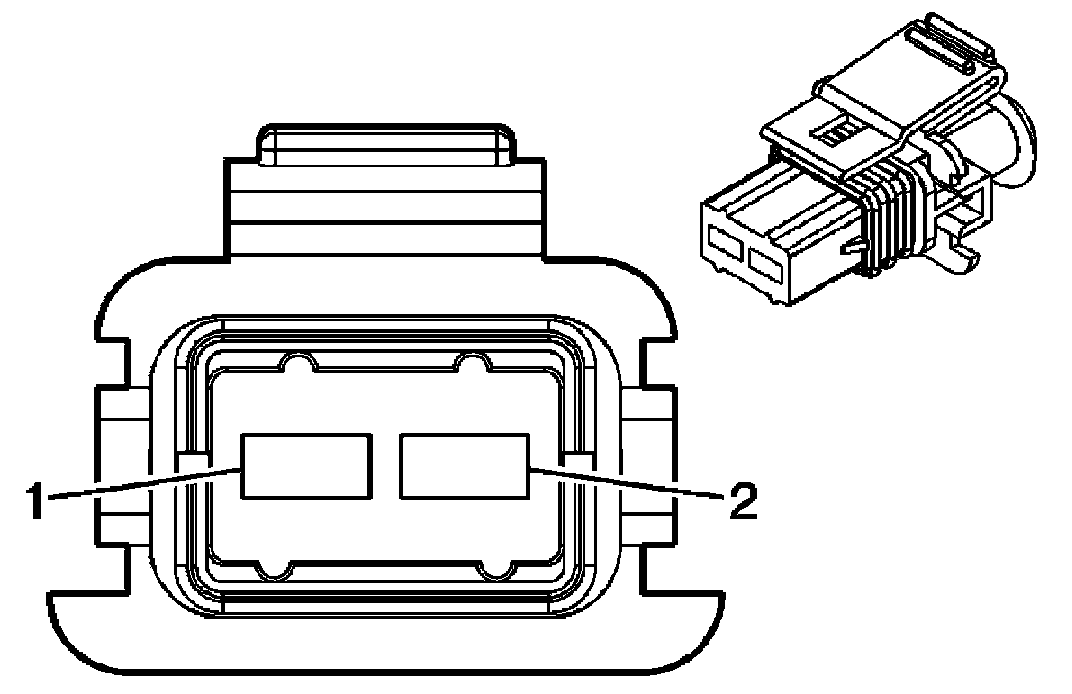

Connector Part Information
OEM: 12186308
Service: 89046837
Description: 2-Way F JPT Sealed (BK)

Terminal Part Information
Terminal/Tray: 4-964286-1/16
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12093647/J-35616-4A (PU)

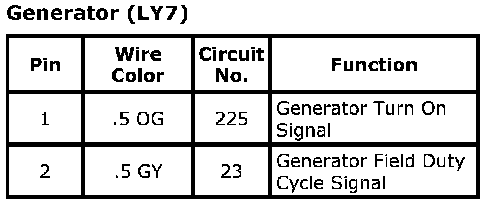

Generator (LY7):
