Fuel Injector

Fuel Injector 1

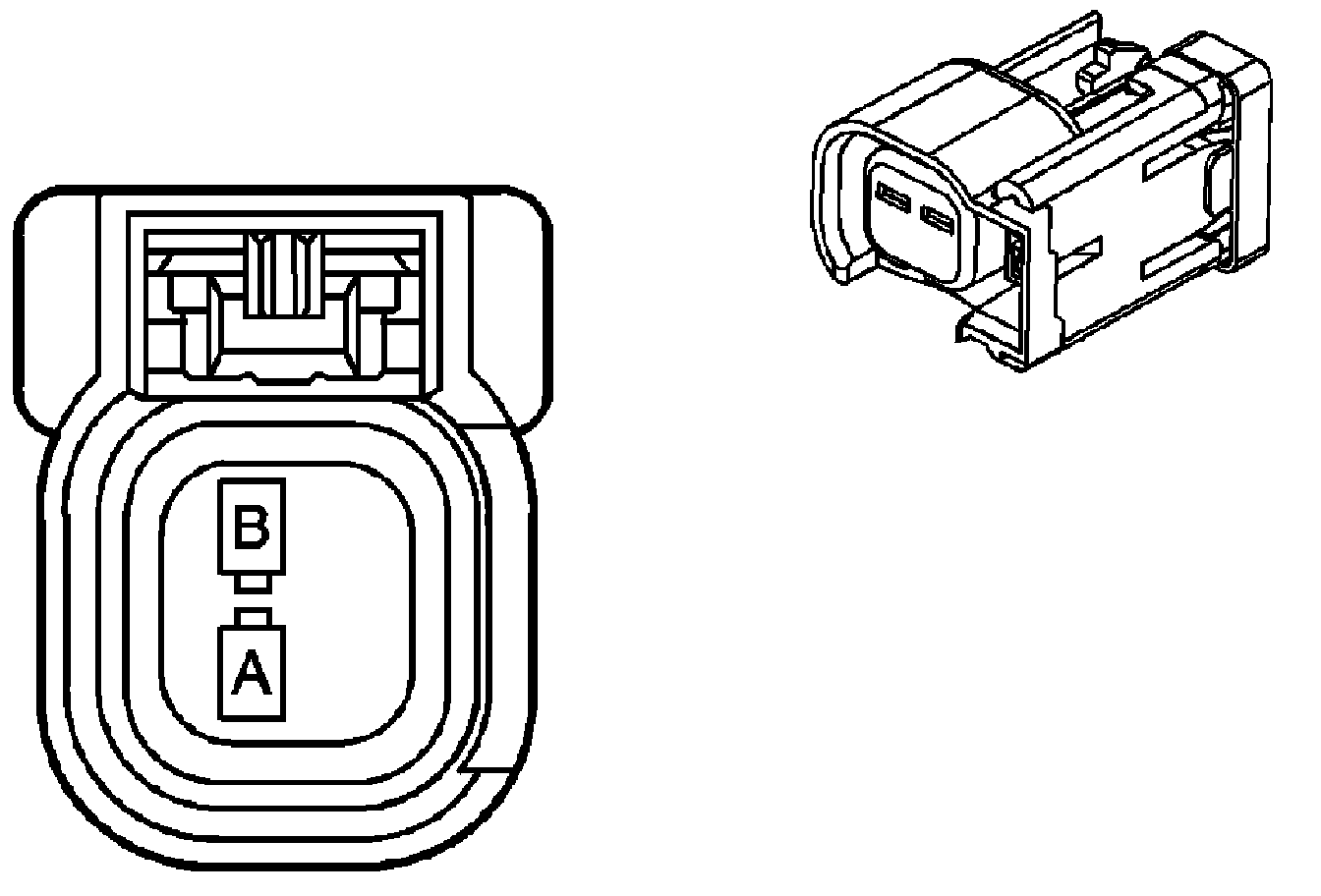

Fuel Injector 1:

Connector Part Information
OEM: 15305086
Service: 15306318
Description: 2-Way F Metri-Pack Series (BK)

Terminal Part Information
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

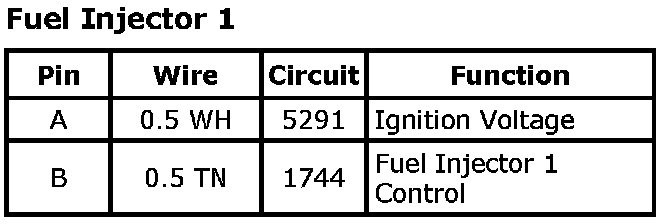

Fuel Injector 1:

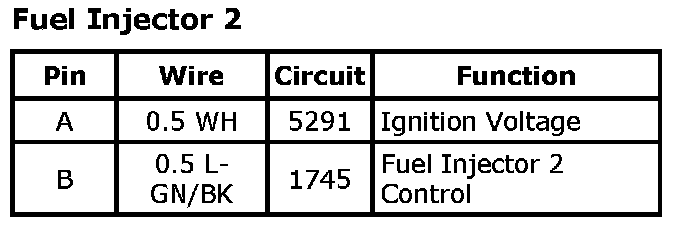

Fuel Injector 2

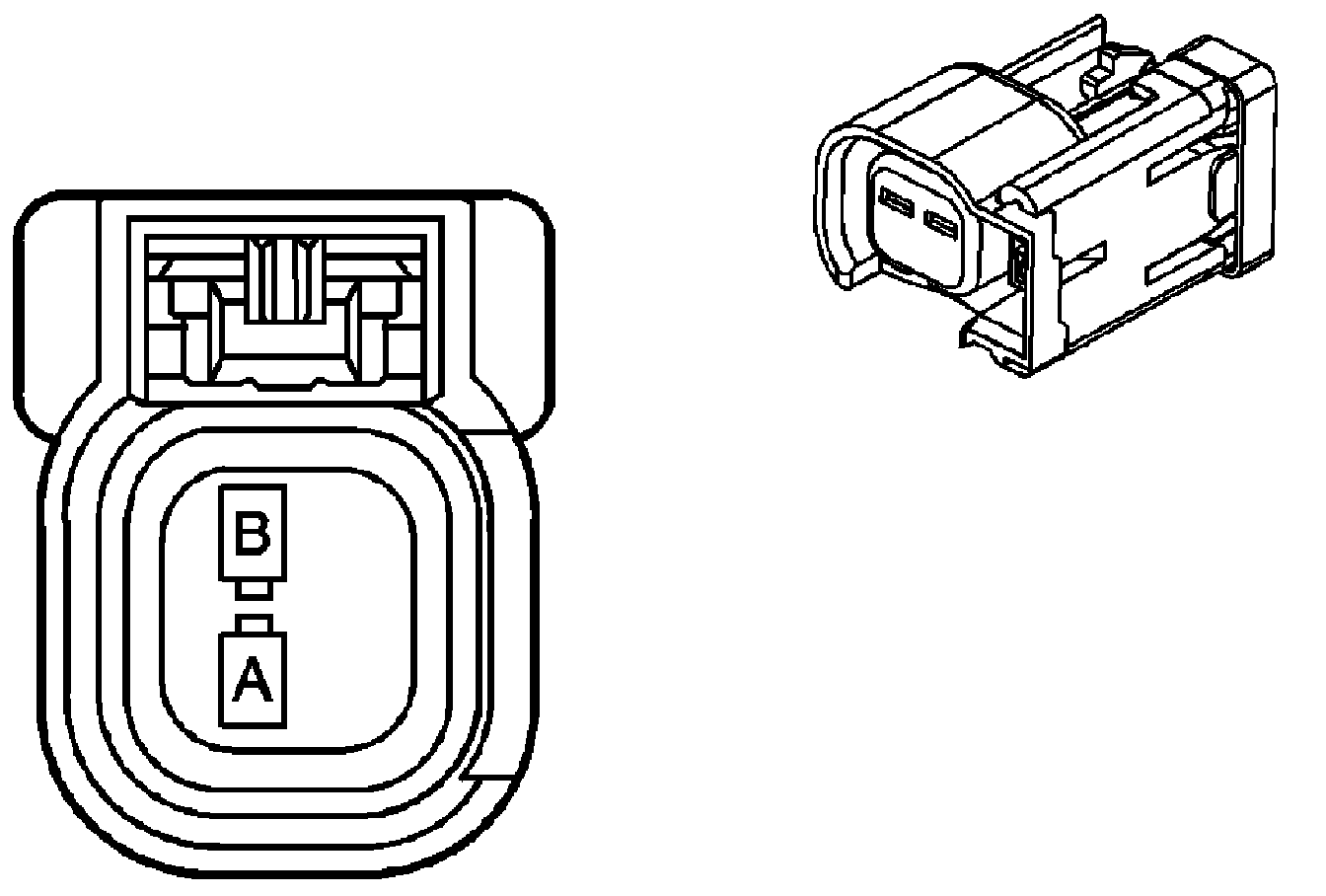

Fuel Injector 2:

Connector Part Information
OEM: 15305086
Service: 15306318
Description: 2-Way F Metri-Pack Series (BK)

Terminal Part Information
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Fuel Injector 2:

Fuel Injector 3

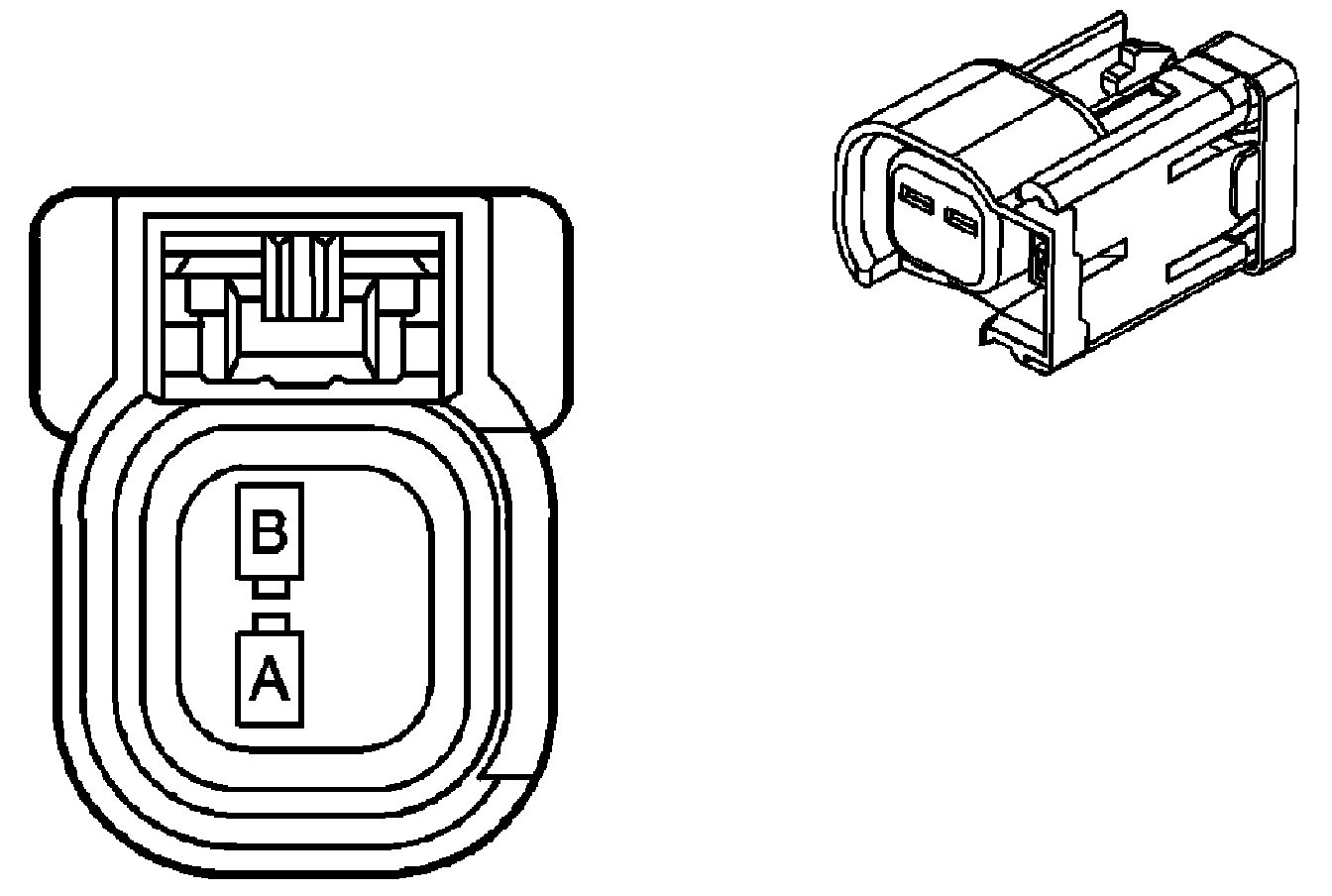

Fuel Injector 3:

Connector Part Information
OEM: 15305086
Service: 15306318
Description: 2-Way F Metri-Pack Series (BK)

Terminal Part Information
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

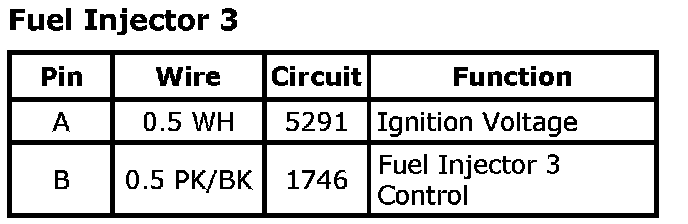

Fuel Injector 3:

Fuel Injector 4

Fuel Injector 4:

Connector Part Information
OEM: 15305086
Service: 15306318
Description: 2-Way F Metri-Pack Series (BK)

Terminal Part Information
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

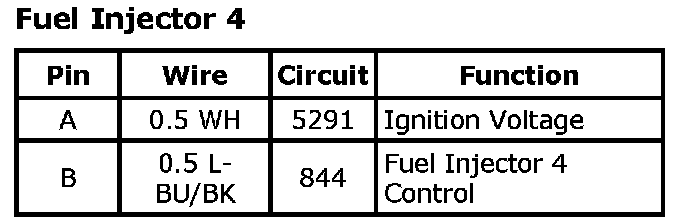

Fuel Injector 4:

Fuel Injector 5

Fuel Injector 5:

Connector Part Information
OEM: 15305086
Service: 15306318
Description: 2-Way F Metri-Pack Series (BK)

Terminal Part Information
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

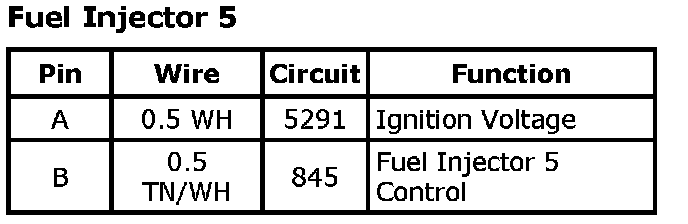

Fuel Injector 5:

Fuel Injector 6

Fuel Injector 6:

Connector Part Information
OEM: 15305086
Service: 15306318
Description: 2-Way F Metri-Pack Series (BK)

Terminal Part Information
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

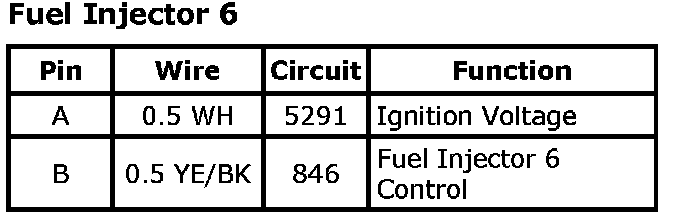

Fuel Injector 6:
