Fuse Block - Underhood

Fuse Block - Underhood X1






Connector Part Information
OEM: 6098-5227
Service: 88988708
Description: 47-Way F LIF Series (WH)

Terminal Part Information
Pins: 46
Terminal/Tray: 7116-4122-02/10
Core/Insulation Crimp: A/B
Release Tool/Test Probe: 12094430/J-35616-42 (RD)
Pins: 24
Terminal/Tray: 15304713/19
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: 15315247/J-35616-4A (PU)
Pins: 5-9, 15-16, 18-20, 26-32, 39-40, 42
Terminal/Tray: 12191812/19
Core/Insulation Crimp: Pins 5-9, 15-16, 18-19, 20, 26, 28-29, 31-32, 39-40, 42 - E/C
Core/Insulation Crimp: Pins 27, 30 - C/A
Release Tool/Test Probe: 15315247/J-35616-2A (GY)
Pins: 13-14, 23, 25
Terminal/Tray: 15304711/8
Core/Insulation Crimp: Pins 13, 23 - E/A
Core/Insulation Crimp: Pins 14, 25 - 2/A
Release Tool/Test Probe: 15315247/J-35616-4A (PU)

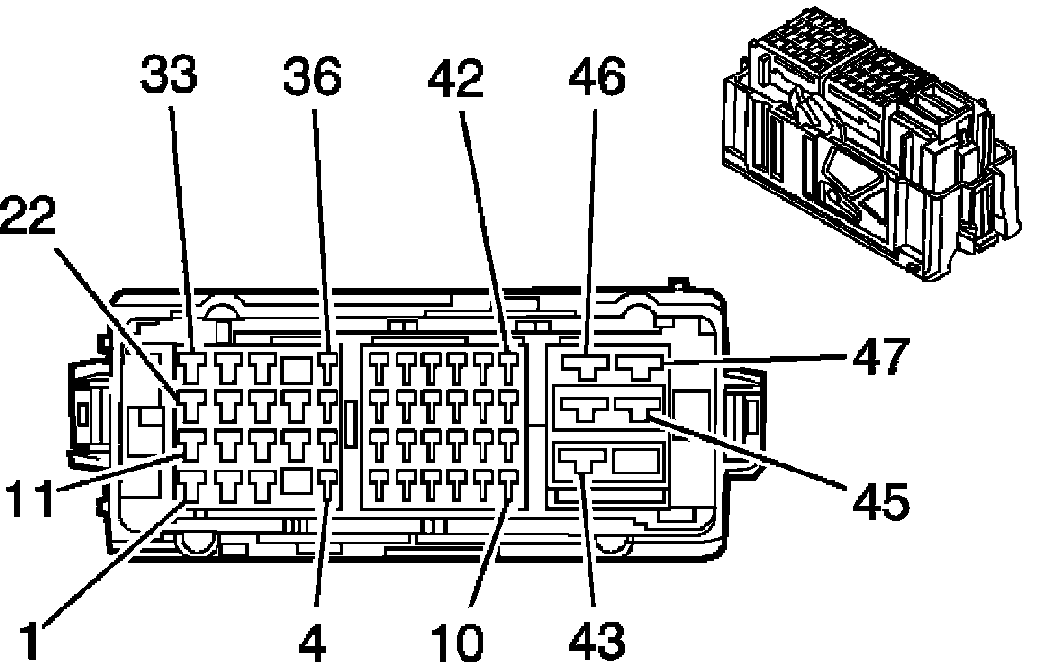

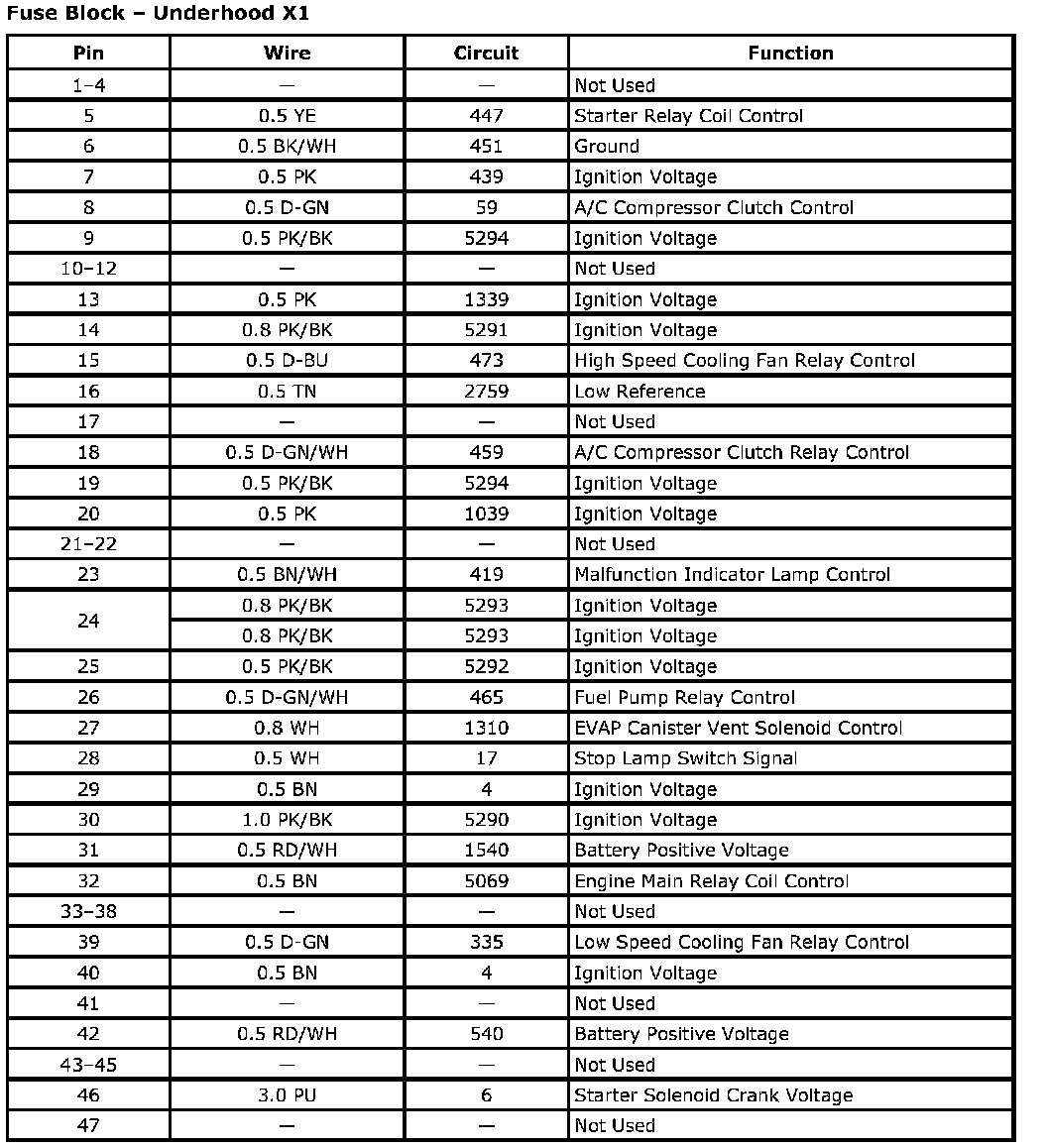

Fuse Block - Underhood X1:

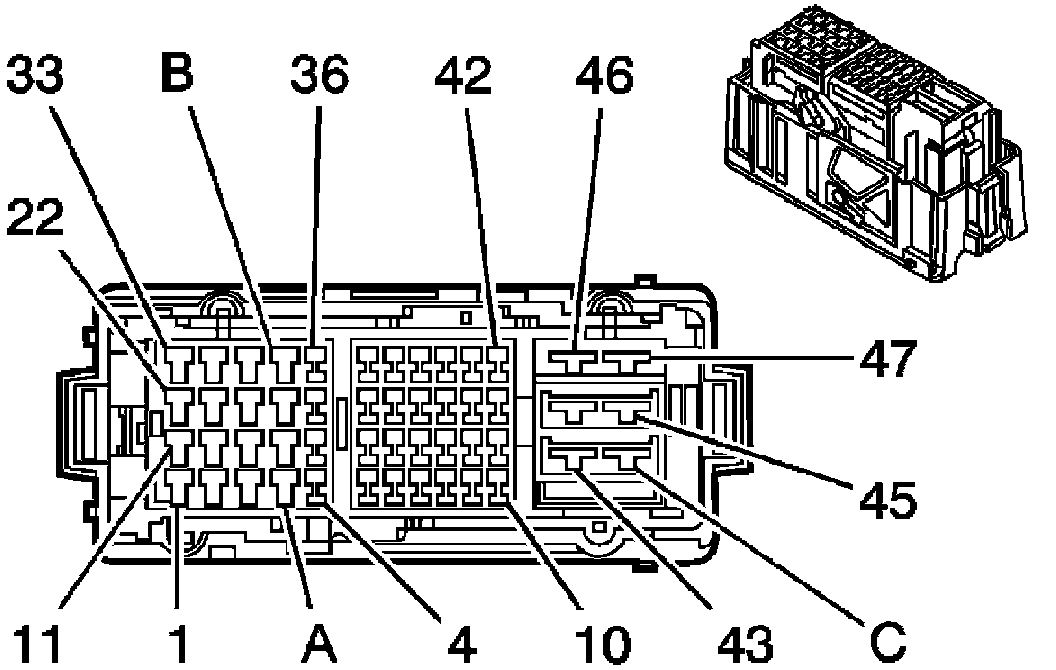

Fuse Block - Underhood X2






Connector Part Information
OEM: 6098-5229
Service: 88988710
Description: 50-Way F LIF Series (BK)

Terminal Part Information
Pins: 1-2, 34, 35
Terminal/Tray: 15304713/19
Core/Insulation Crimp: 4/4
Release Tool/Test Probe: 15315247/J-35616-4A (PU)
Pins: A-B, 3, 11-14, 22-25, 33
Terminal/Tray: 15304711/8
Core/Insulation Crimp: Pins B, 3, 11-13, 22, 25 - E/A
Core/Insulation Crimp: Pins A, 14, 23-24, 33 - 2/A
Release Tool/Test Probe: 15315247/J-35616-4A (PU)
Pins: 4-6, 7-10, 15-21, 27, 32, 36, 38-42
Terminal/Tray: 12191812/19
Core/Insulation Crimp: Pins 4, 6-9, 15, 17-21, 27-32, 36, 38-42 - E/C
Core/Insulation Crimp: Pins 5, 10, 16 - C/A
Release Tool/Test Probe: 15315247/J-35616-2A (GY)
Pins: C, 43-44, 46-47
Terminal/Tray: 7116-4122-02/10
Core/Insulation Crimp: Pins 43, 46-47 - D/G
Core/Insulation Crimp: Pins C, 44 - A/B
Release Tool/Test Probe: 12094430/J-35616-42 (RD)

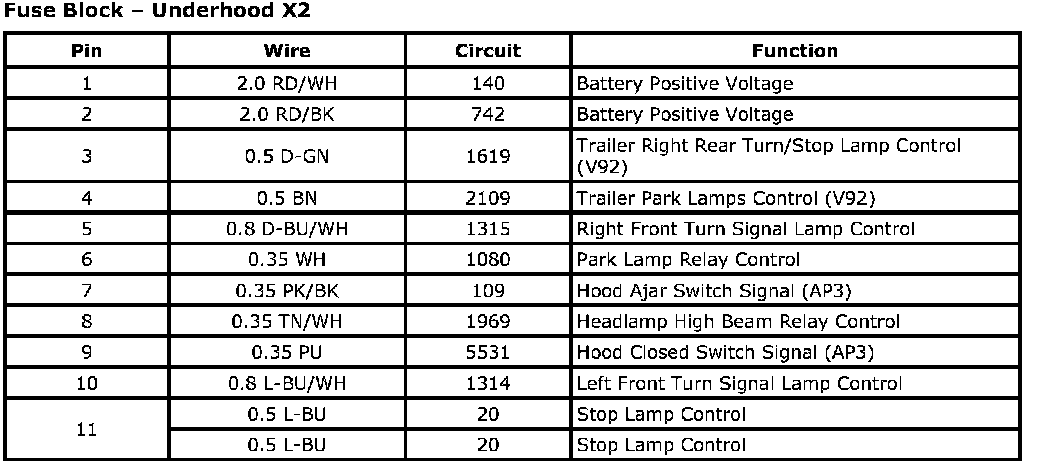

Fuse Block - Underhood X2 PART 1:

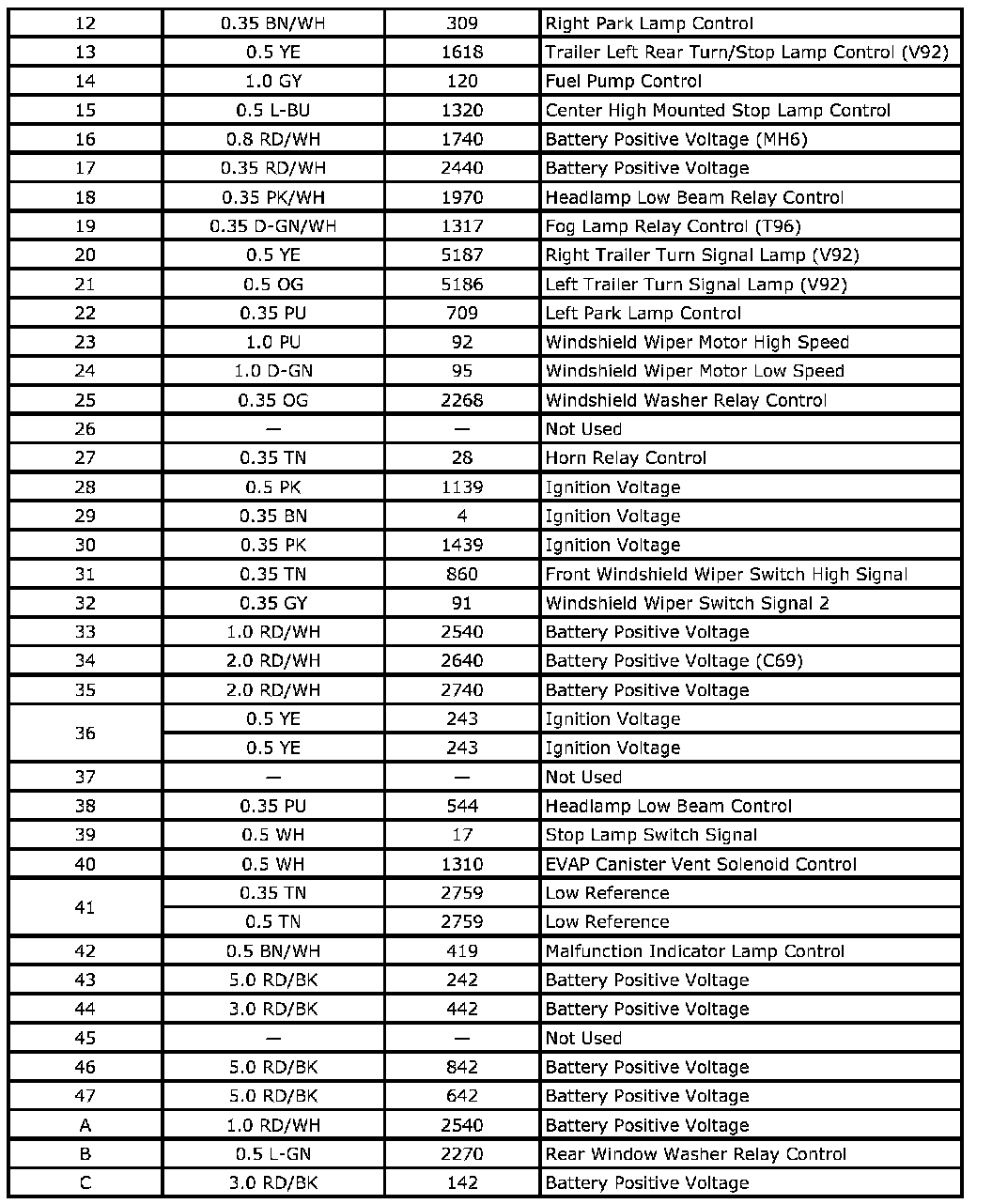

Fuse Block - Underhood X2 PART 2:

Fuse Block - Underhood X3

Connector Part Information
OEM: 6098-4937
Service: See Catalog
Description: 22-Way F Connector Assembly

Terminal Part Information
Pins: 1, 2, 12, 22
Terminal/Tray: 7116-4122-02/10
Core/Insulation Crimp: A/B
Release Tool/Test Probe: 12094430/J-35616-42 (RD)
Pins: 3-9, 13-21
Terminal/Tray: 15304711/8
Core/Insulation Crimp: Pins 3-9, 13-16, 19-21 - E/A
Core/Insulation Crimp: Pins 7, 17-18 - 2/A
Release Tool/Test Probe: 15315247/J-35616-4A (PU)

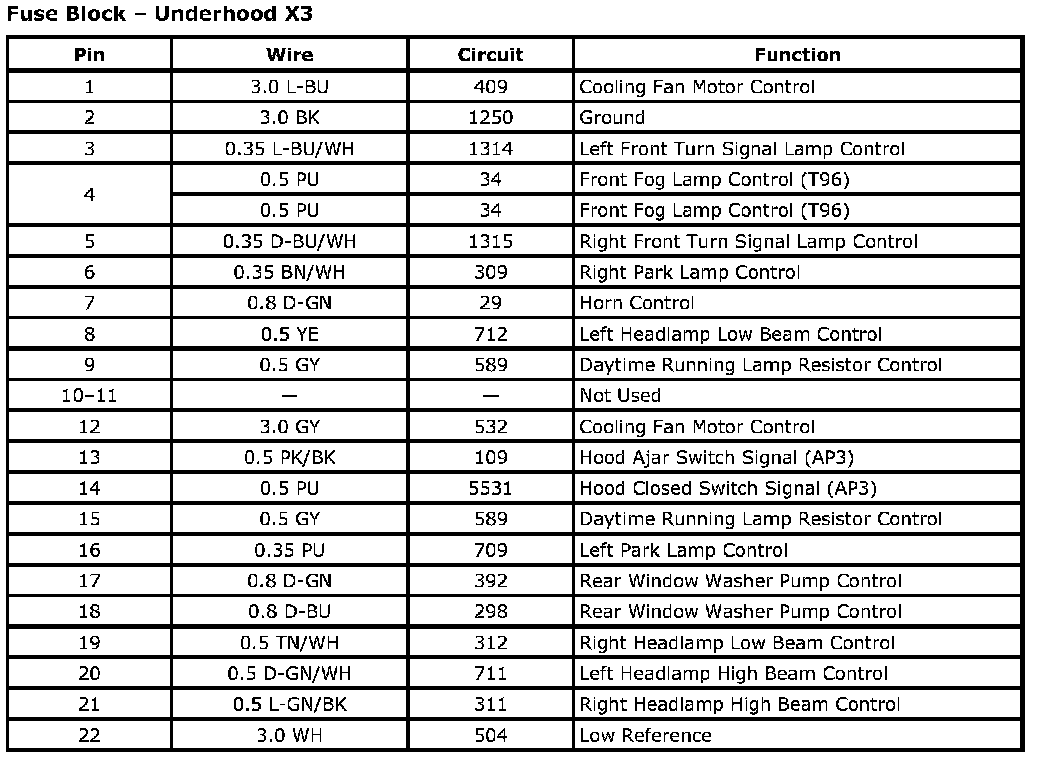

Fuse Block - Underhood X3:
