Power Door Lock Switch

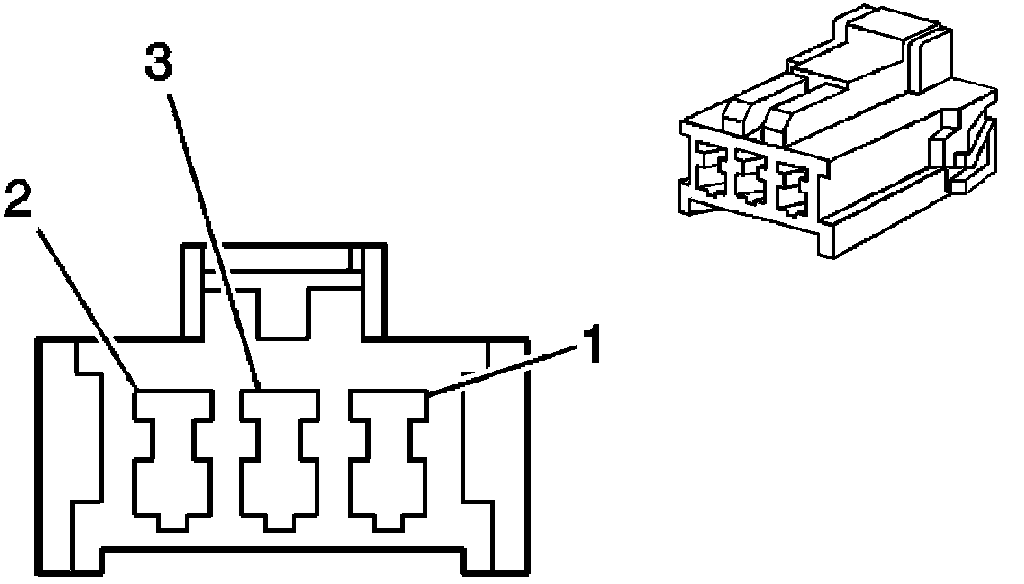

Door Lock Switch - Driver






Connector Part Information
OEM: 6098-0241
Service: See Catalog
Description: 3-Way F HD 090 Series (L-GY)

Terminal Part Information
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

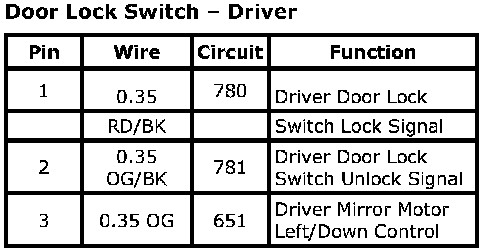

Door Lock Switch - Driver:

Door Lock Switch - Front Passenger






Connector Part Information
OEM: 6098-0241
Service: See Catalog
Description: 3-Way F HD 090 Series (L-GY)

Terminal Part Information
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

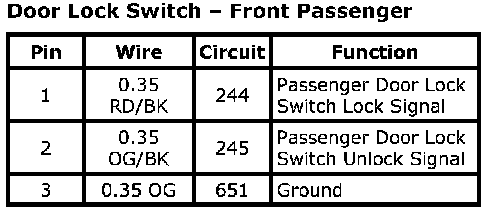

Door Lock Switch - Front Passenger:
