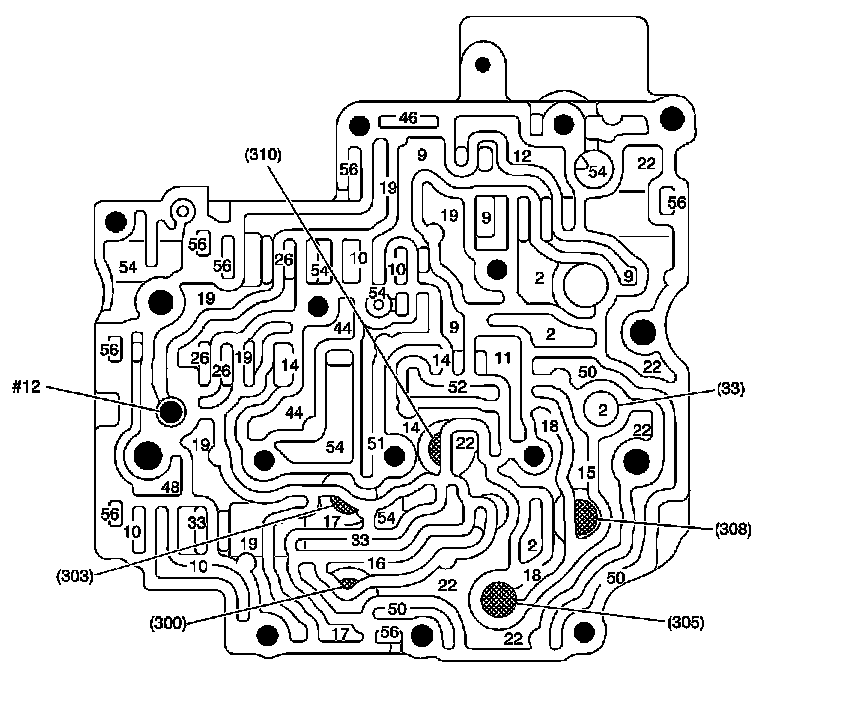

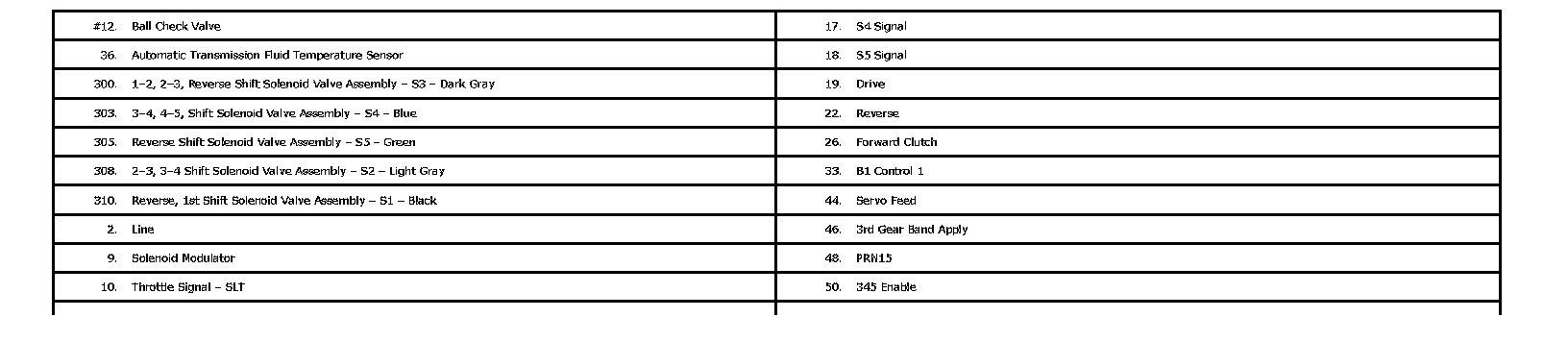

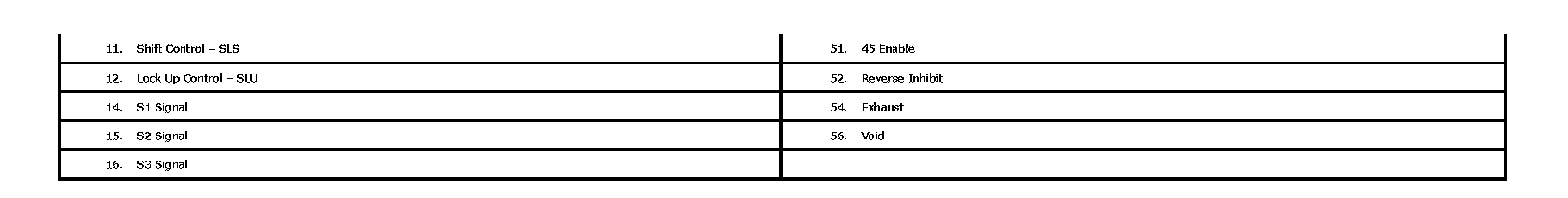

Front Control Valve Body Assembly Fluid Passages (Middle Control Valve Body Assembly Side)

Front Control Valve Body Assembly Fluid Passages (Middle Control Valve Body Assembly Side)
