Master Splice/Splice Pack List
Master Splice/Splice Pack List

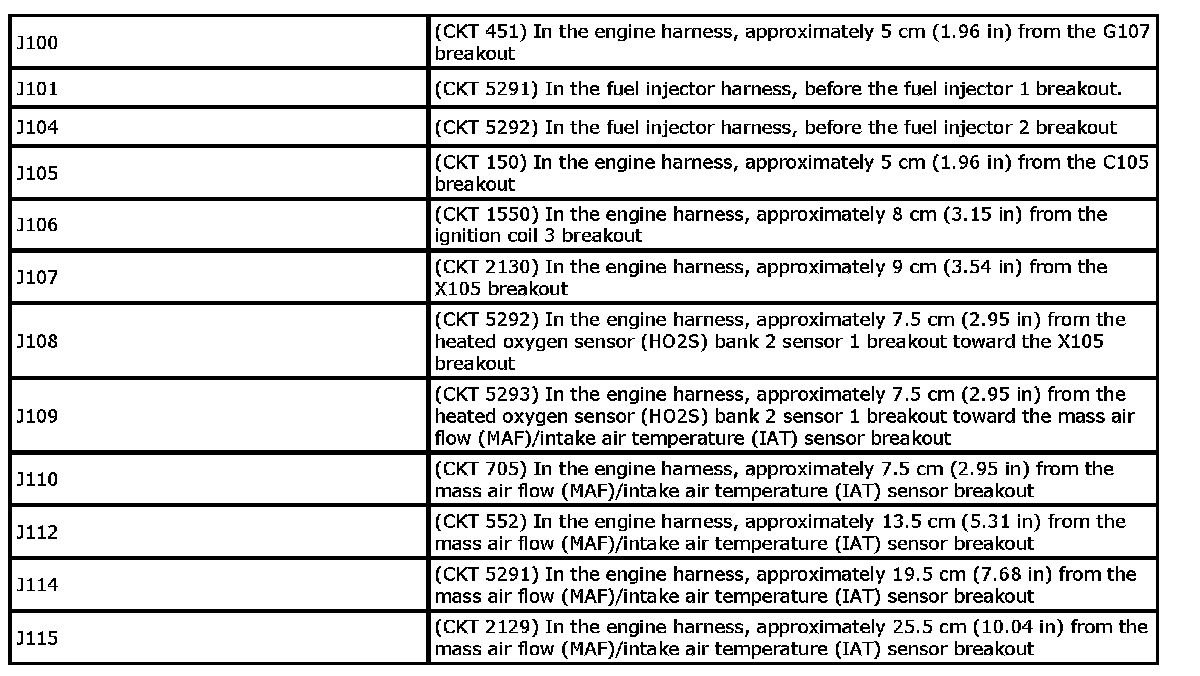

J100 - J115:

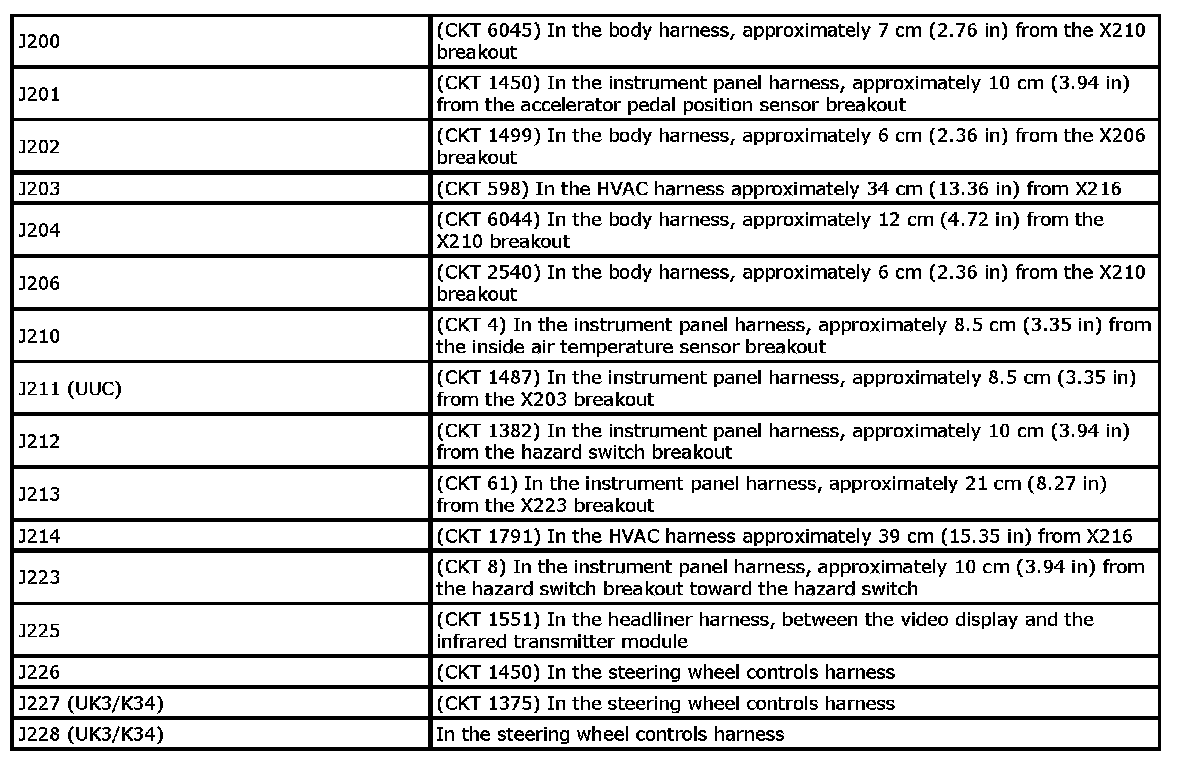

J200 - J228:

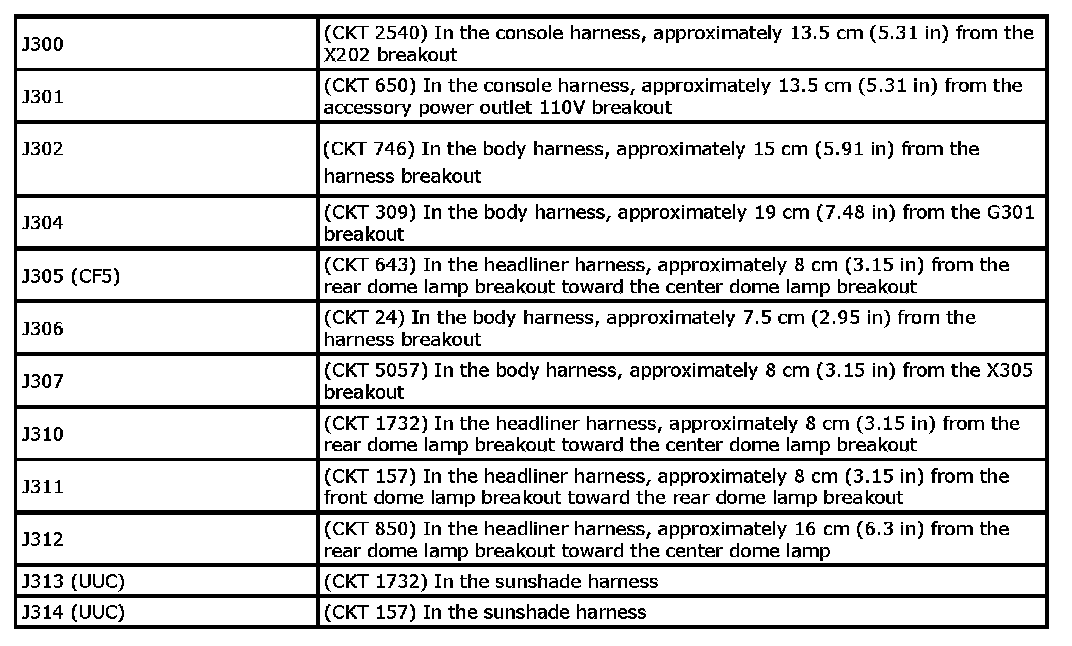

J300 - J314:

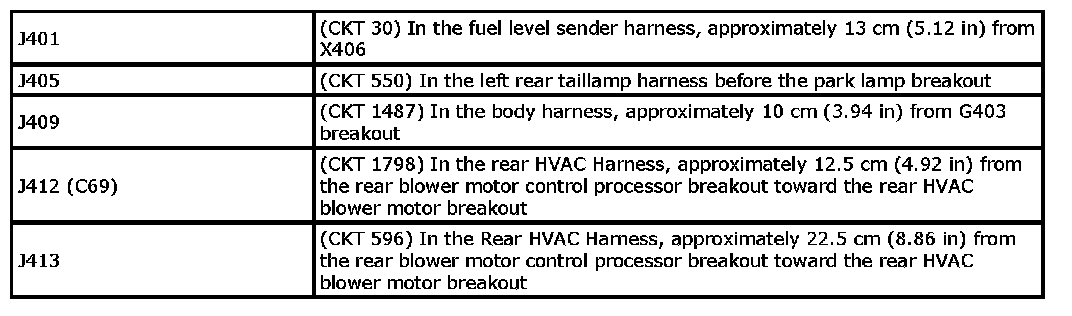

J401 - J413:

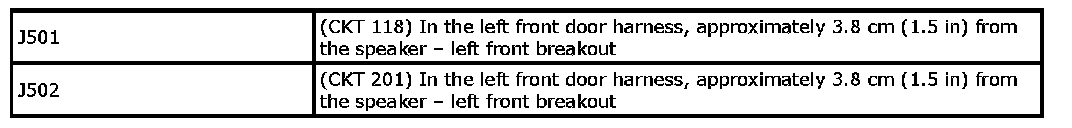

J501 - J502:

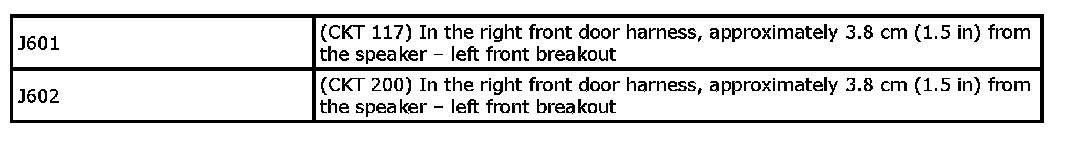

J601 - J602:

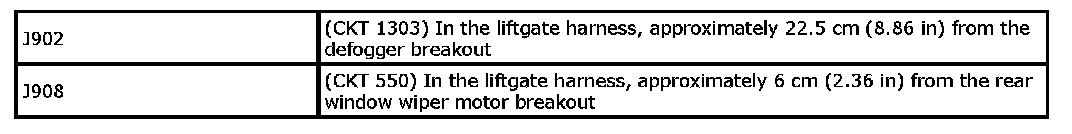

J902 - J908:
JX200:
