Cylinder Head Assembly

Deck Flatness 0.05 mm (0.002 in) or less

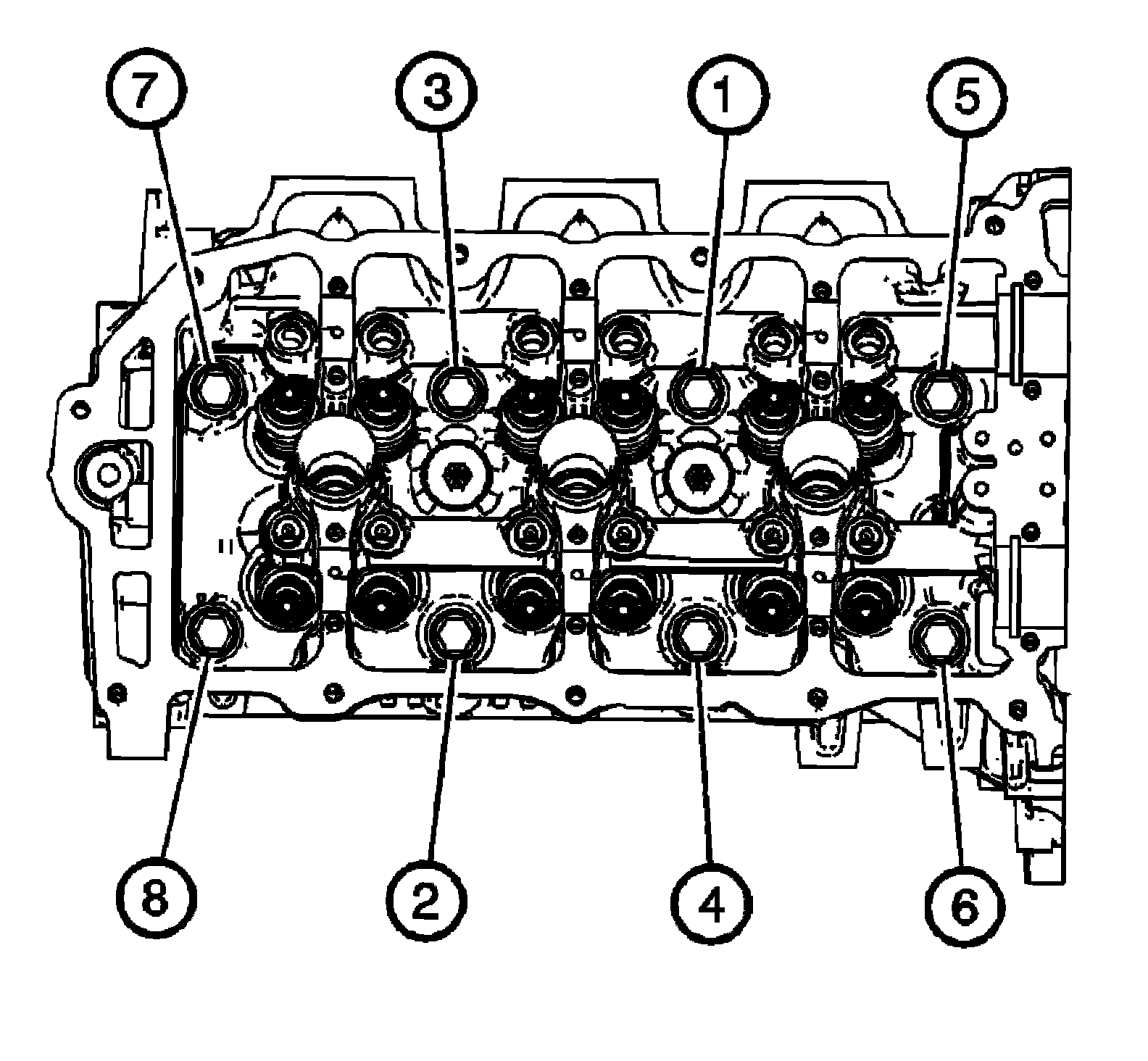

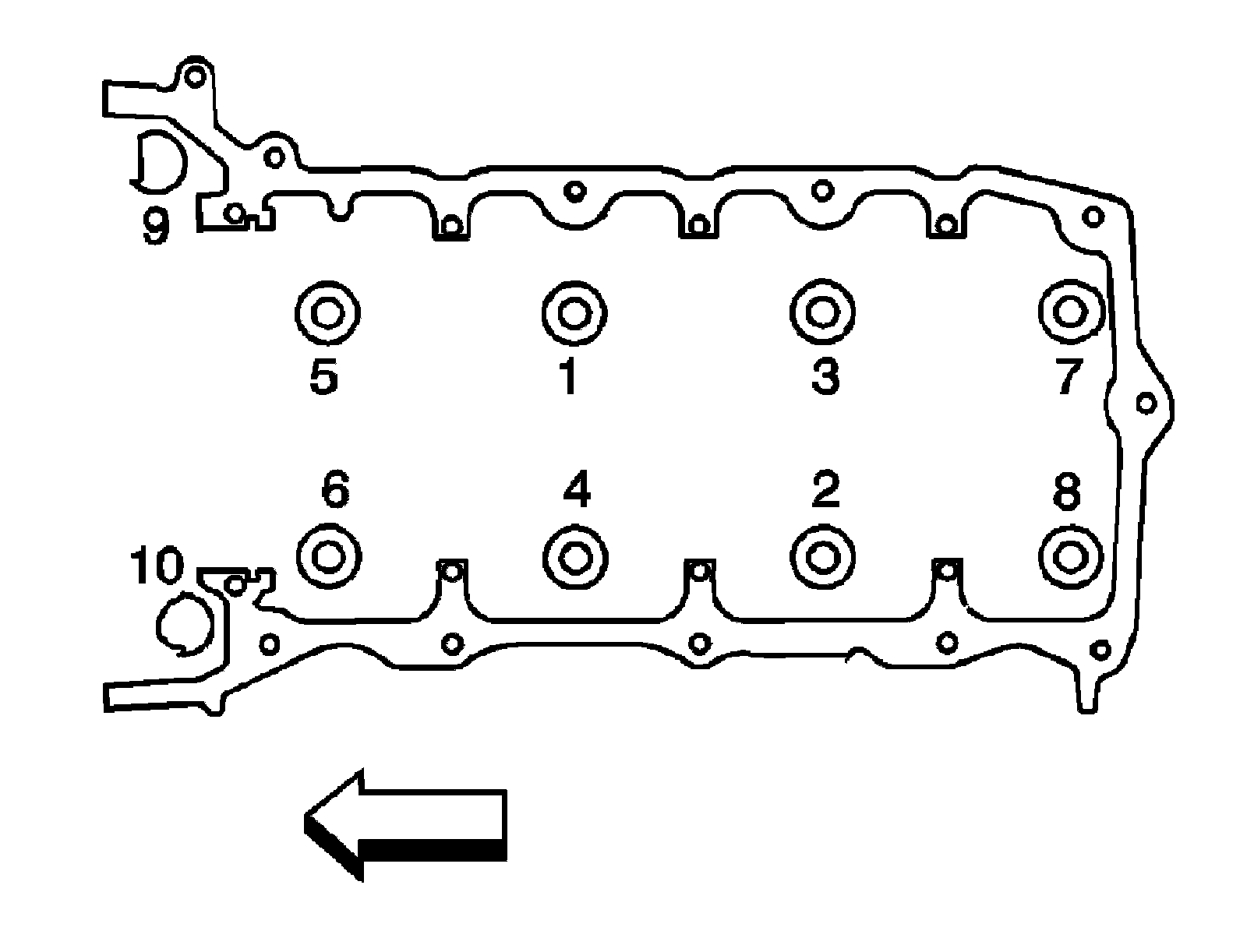

Cylinder Head Bolt - M8
First Pass 15 Nm (10 lb ft)
Final Pass 75 Degrees

Cylinder Head Bolt - M11
DO NOT reuse the old M11 cylinder head bolts
First Pass 30 Nm (22 lb ft)
Final Pass 150 degrees

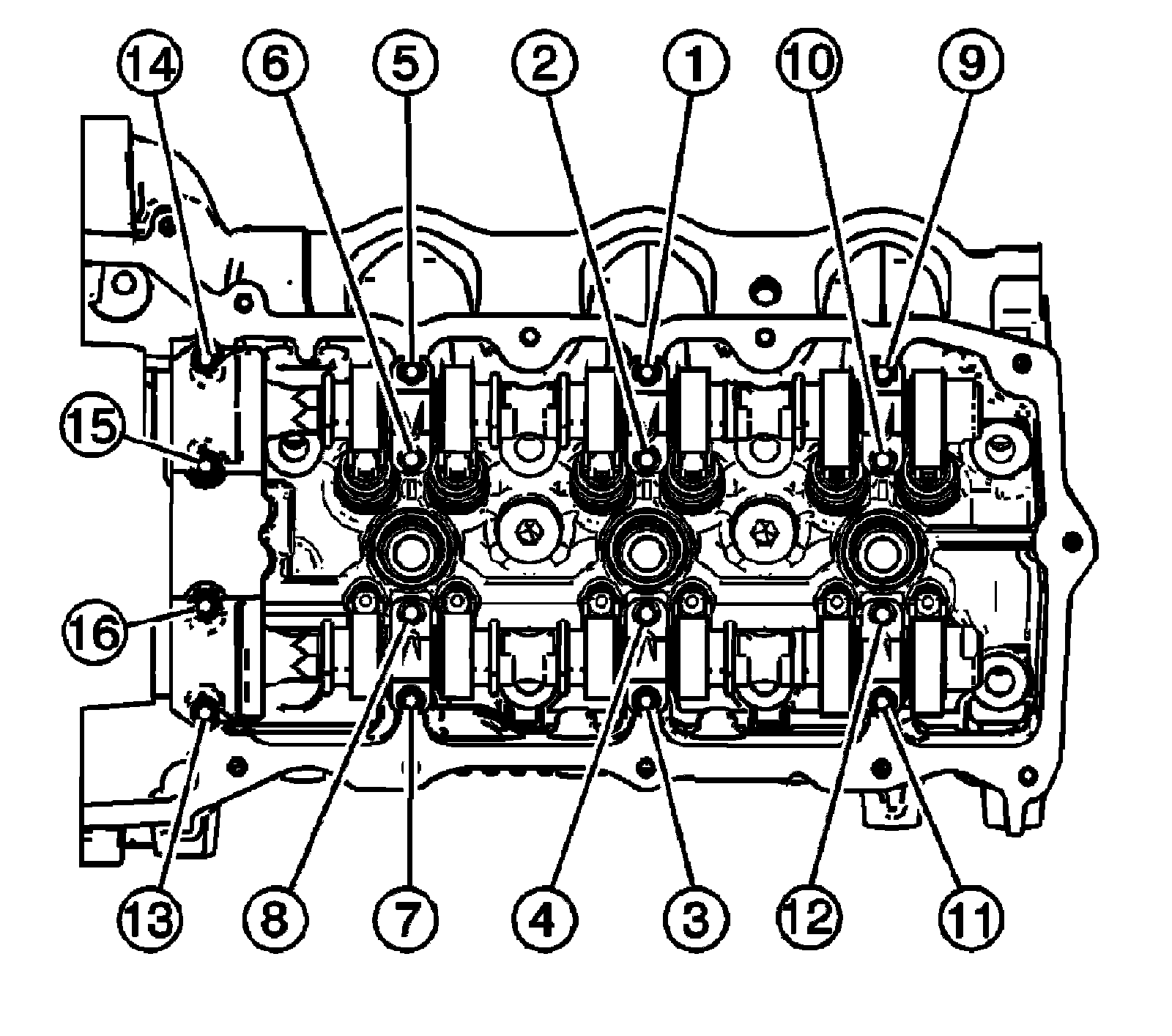

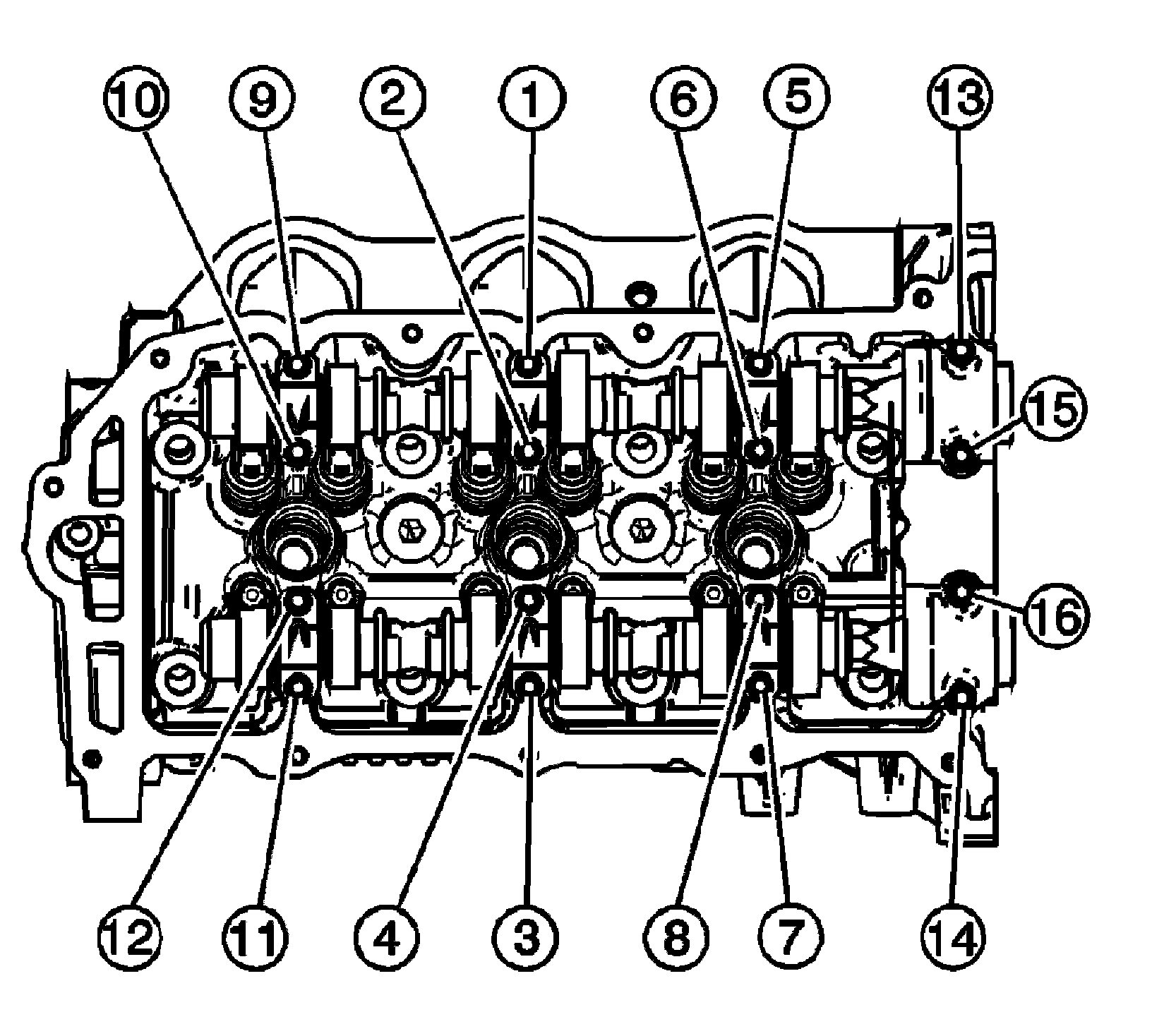

Camshaft Cap Bolt 10 Nm (89 lb in)








Camshaft Position Actuator
Camshaft Bolt 58 Nm (43 lb ft)

Intake Manifold
Upper-to-Cylinder Head Bolt - Long 23 Nm (17 lb ft)
Upper-to-Cylinder Head Bolt - Short 23 Nm (17 lb ft)
Upper-to-Lower Intake Manifold Bolt 23 Nm (17 lb ft)

Exhaust Manifold Bolts 25 Nm (18 lb ft)
