Starter Installation

Starter Installation

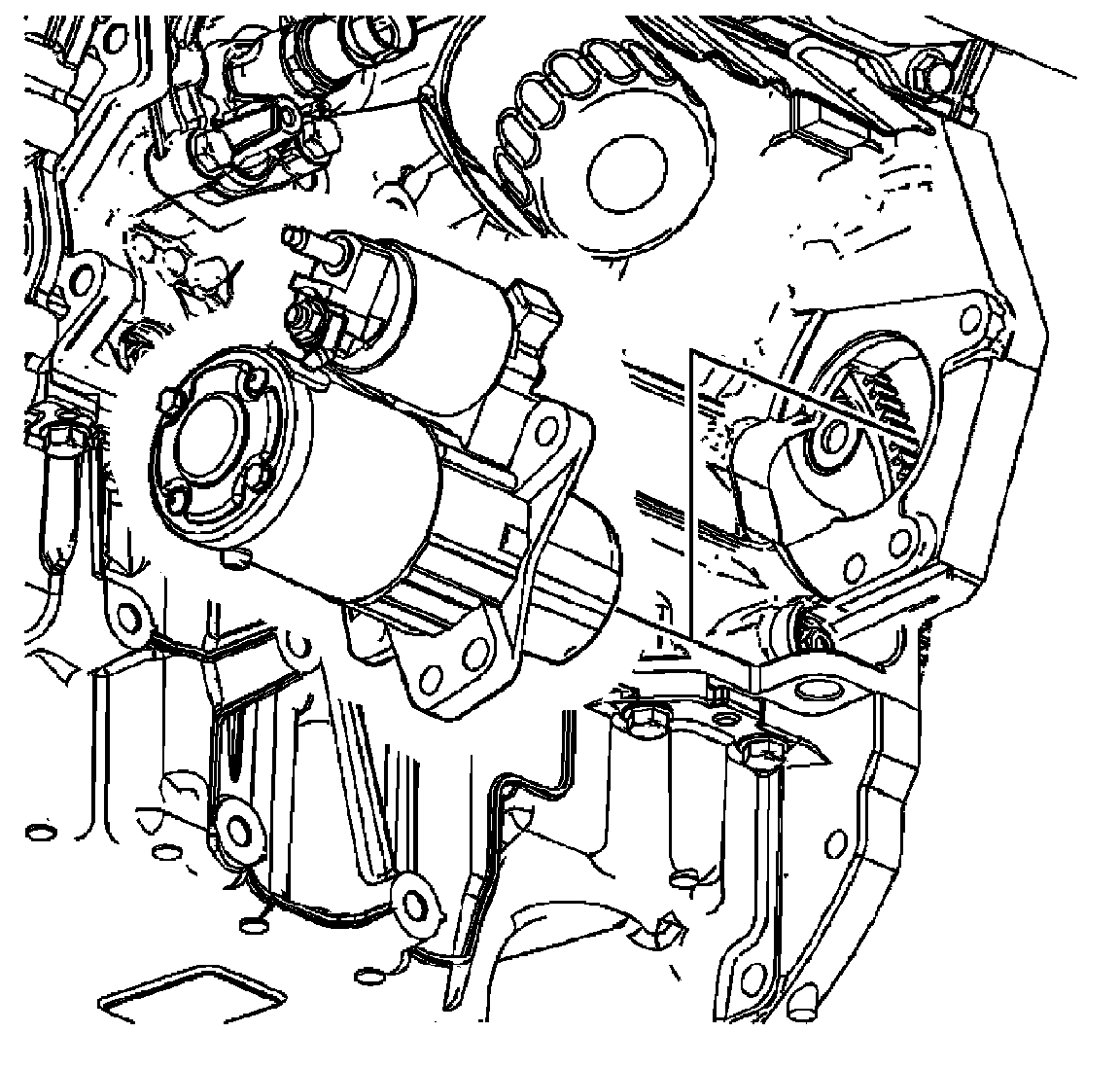

1. Install the starter motor.

CAUTION: Refer to [Fastener Notice].

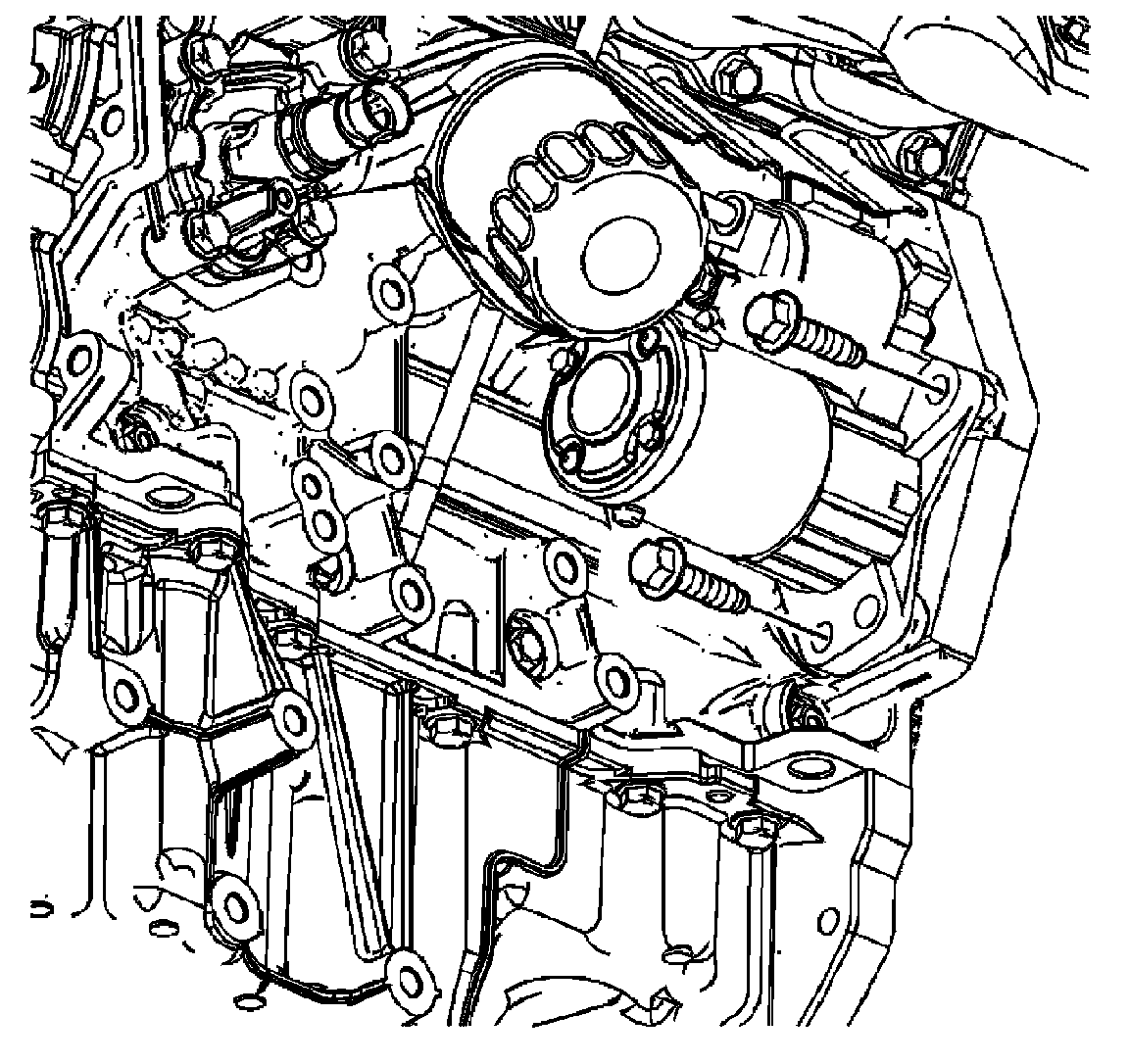

2. Install the starter motor bolts.

Tightening torque
Tighten the starter motor bolts to 50 N.m (37 lb-ft).

Reference: [Drive Belt Tensioner Installation].
