Air Duct: Service and Repair

Ducts and Grilles: Component

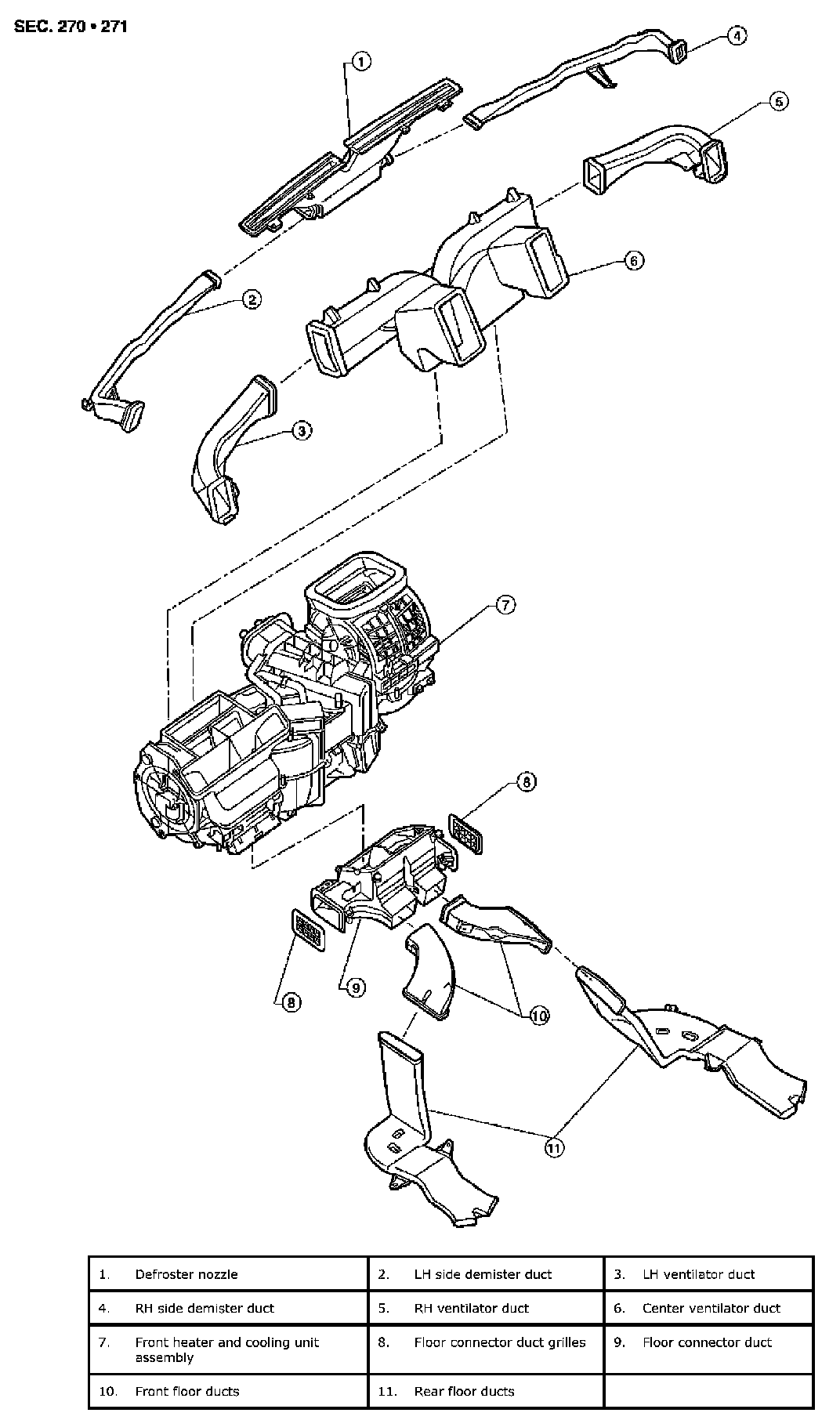

Ducts






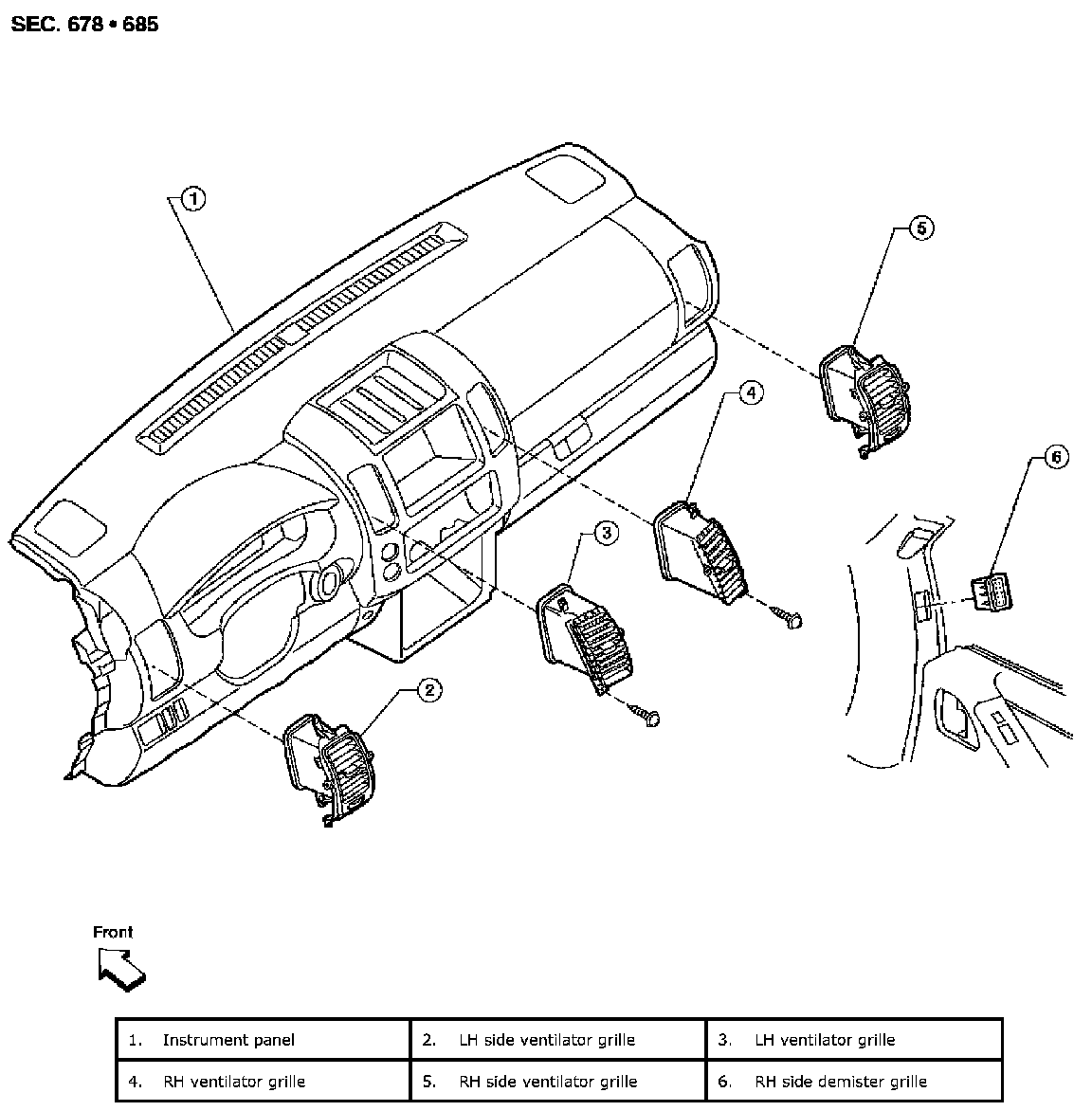

Grilles






Ducts and Grilles: Removal and Installation

DEFROSTER NOZZLE

Removal
1. Remove the heater and cooling unit assembly. Refer to [Heater & Cooling Unit Assembly: Component].
2. Remove the defroster nozzle.

Installation
Installation is in the reverse order of removal.

RH AND LH SIDE DEMISTER DUCTS

Removal
1. Remove the heater and cooling unit assembly. Refer to [Heater & Cooling Unit Assembly: Component].
2. Remove the RH or LH side demister duct.

Installation
Installation is in the reverse order of removal.

RH AND LH VENTILATOR DUCTS

Removal
1. Remove the heater and cooling unit assembly. Refer to [Heater & Cooling Unit Assembly: Component].
2. Remove the RH or LH ventilator duct.

Installation
Installation is in the reverse order of removal.

CENTER VENTILATOR DUCT

Removal

1. Remove the heater and cooling unit assembly. Refer to [Heater & Cooling Unit Assembly: Component].
2. Remove the defroster nozzle.
3. Remove the RH and LH ventilator ducts.
4. Remove the RH and LH side demister ducts.
5. Remove the center ventilator duct.

Installation
Installation is in the reverse order of removal.

FLOOR CONNECTOR DUCT

Removal
1. Remove the heater and cooling unit assembly. Refer to [Heater & Cooling Unit Assembly: Component].
2. Remove the floor connector duct.

Installation
Installation is in the reverse order of removal.

FRONT AND REAR FLOOR DUCTS

Removal
1. Remove the floor carpet. Refer to [Floor Trim: Removal and Installation].
2. Remove the clips and front and rear floor ducts.

Installation
Installation is in the reverse order of removal.

GRILLES

Removal
1. Remove the interior trim panel as necessary that contains the grille to be removed. Refer to [Body Side Trim: Component] and [Instrument Panel Assembly: Exploded View].
2. Remove the grille from the interior trim panel.

Installation
Installation is in the reverse order of removal.
