Power Steering Line/Hose: Service and Repair
Hydraulic Line: Removal and Installation

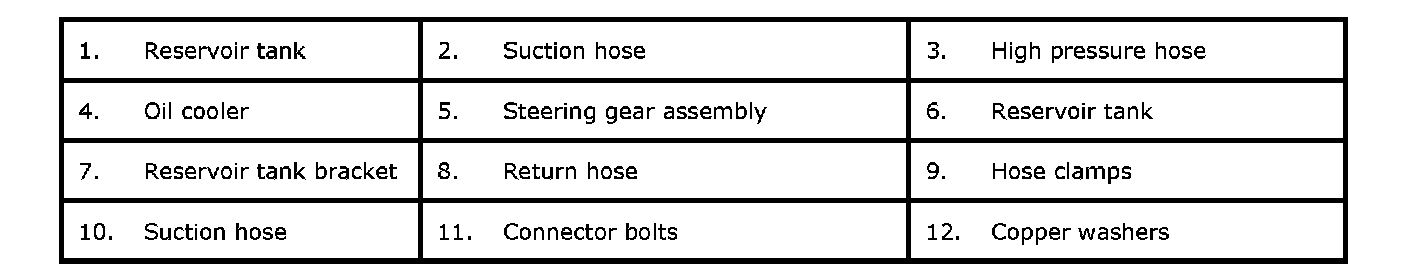

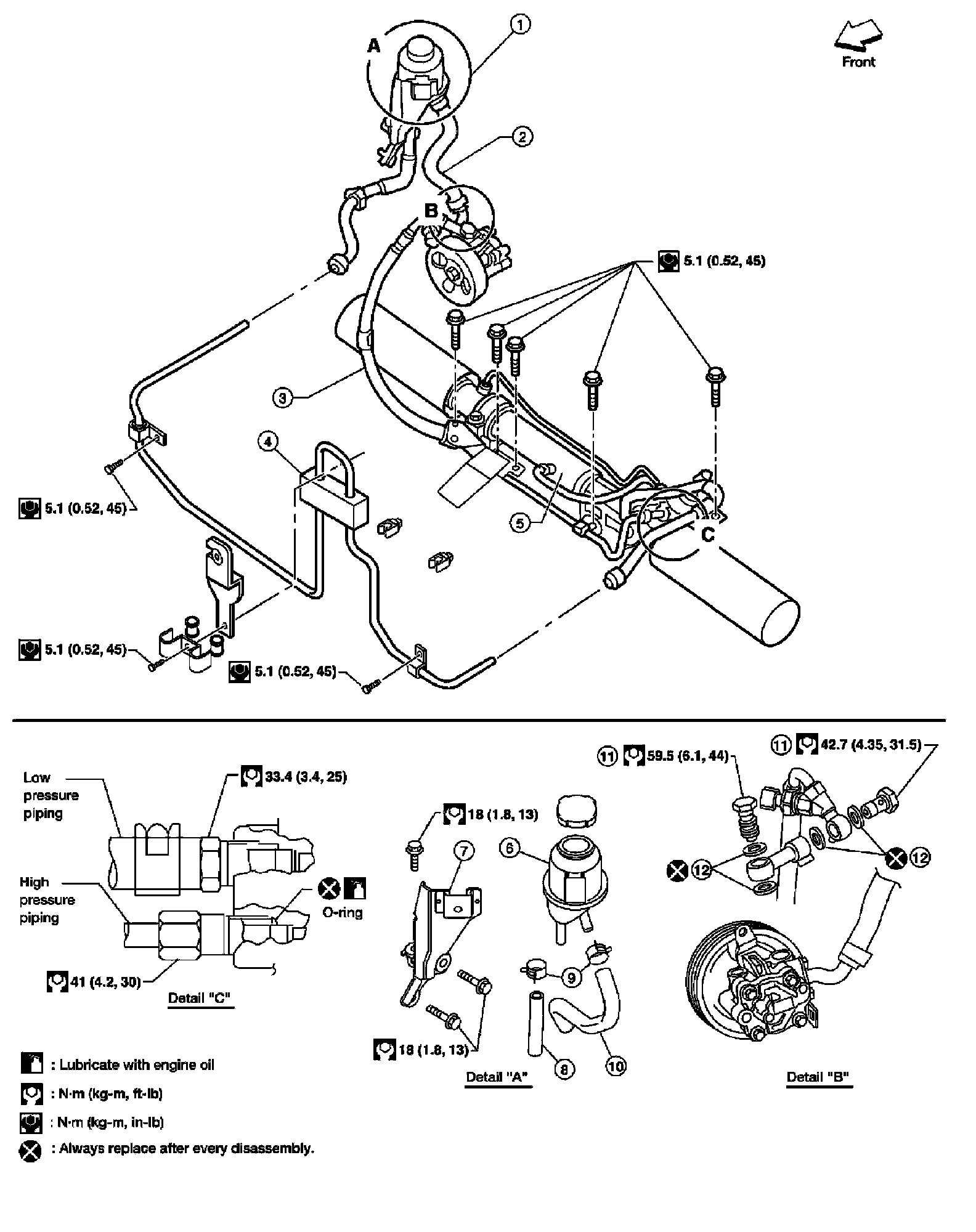

Refer to the following illustration for hydraulic line removal and installation.
