Windshield Washer Motor: Service and Repair

Washer Motor: On-Vehicle Repair

REMOVAL AND INSTALLATION

Removal

1. Remove RH front fender protector. Refer to [Front Fender Protector: Removal and Installation].
2. Disconnect the washer hoses.
3. Disconnect the washer motor connector.

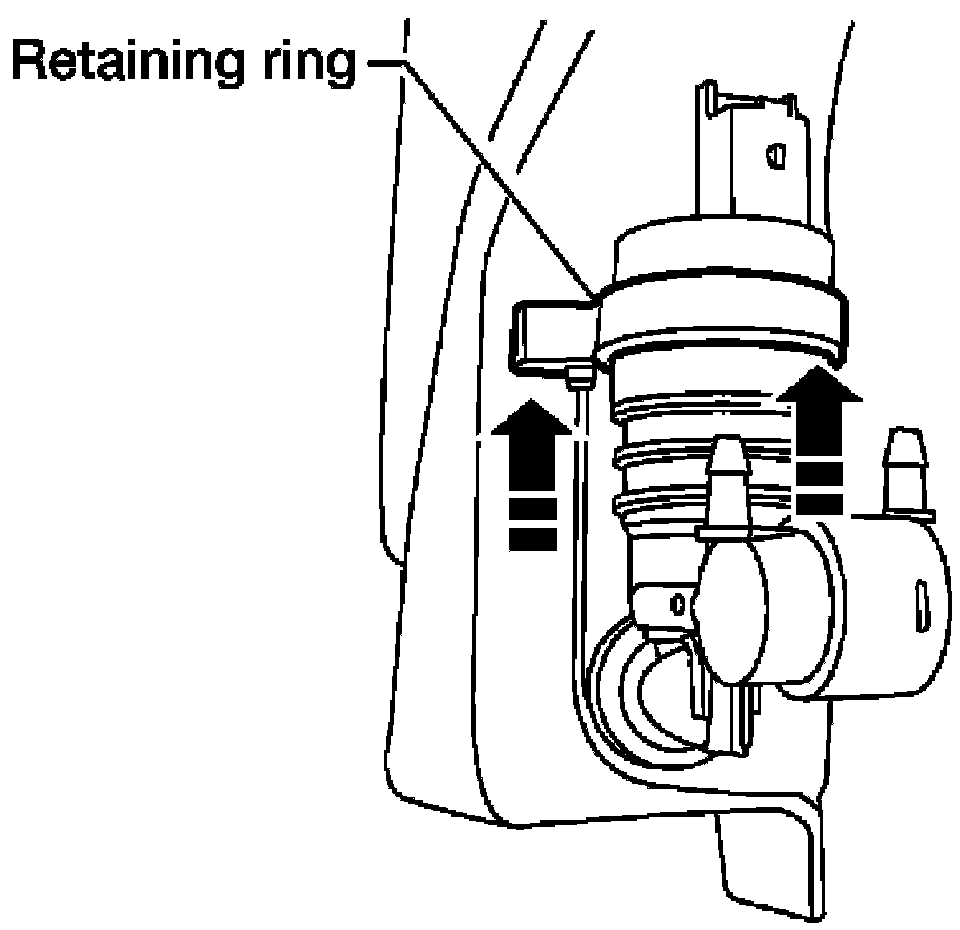

4. Slide retaining ring upward to release washer motor.







5. Remove washer motor from washer fluid reservoir.

Installation

Installation is in the reverse order of removal.
