Front

Brake Caliper Inspection


Slide Pin Bolt / Cylinder Slide Pin

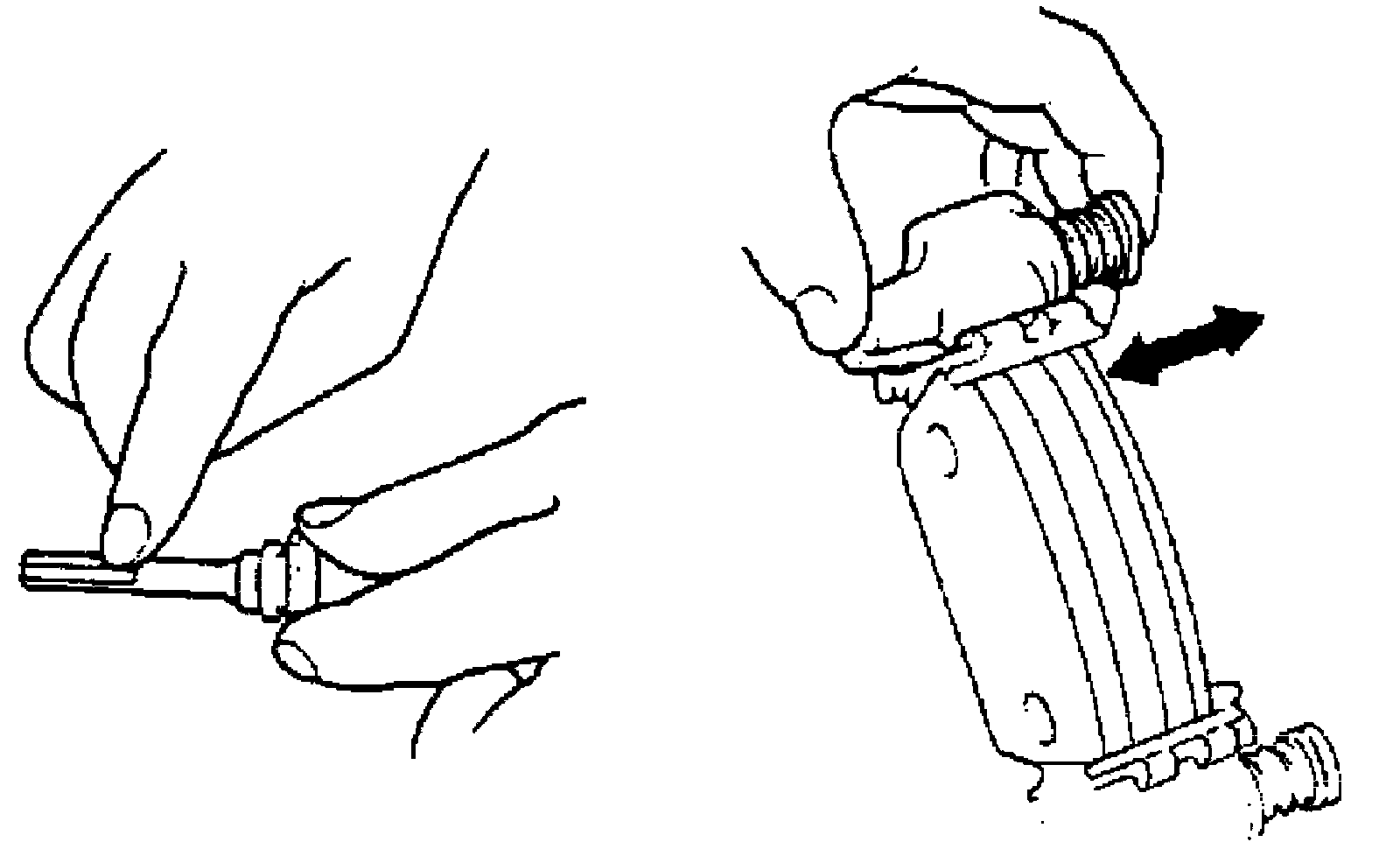

Check slide pin (bolt) for smooth movement as shown in figure.
If it is found faulty, correct or replace. Apply grease (included with new pin boot) to side pin (bolt) outer surface.





Dust Boot
Check boot for breakage, crack and damage. If defective, replace.
