Inside Air Temperature Sensor Inspection
Inside Air Temperature Sensor Inspection1. Remove Inside air temperature sensor.

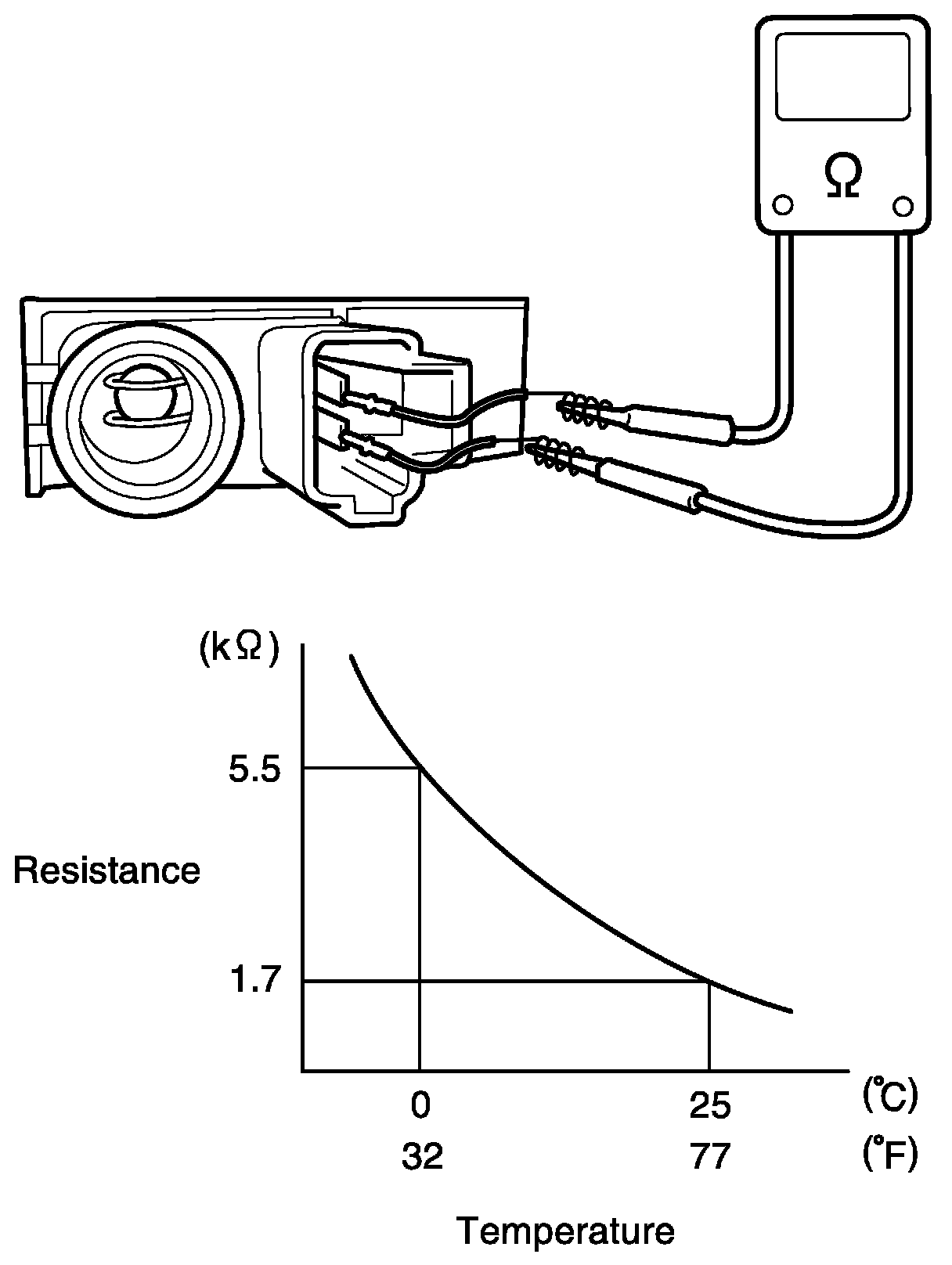

2. Check resistance between terminals.
Inside air temperature sensor resistance
Approx. 1.7 kohms ± 85 Ohms at 25 °C (77 °F)
1. Remove Inside air temperature sensor.
2. Check resistance between terminals.
Inside air temperature sensor resistance
Approx. 1.7 kohms ± 85 Ohms at 25 °C (77 °F)
