Outside Air Temperature Sensor Inspection

Outside Air Temperature Sensor Inspection (If Equipped)

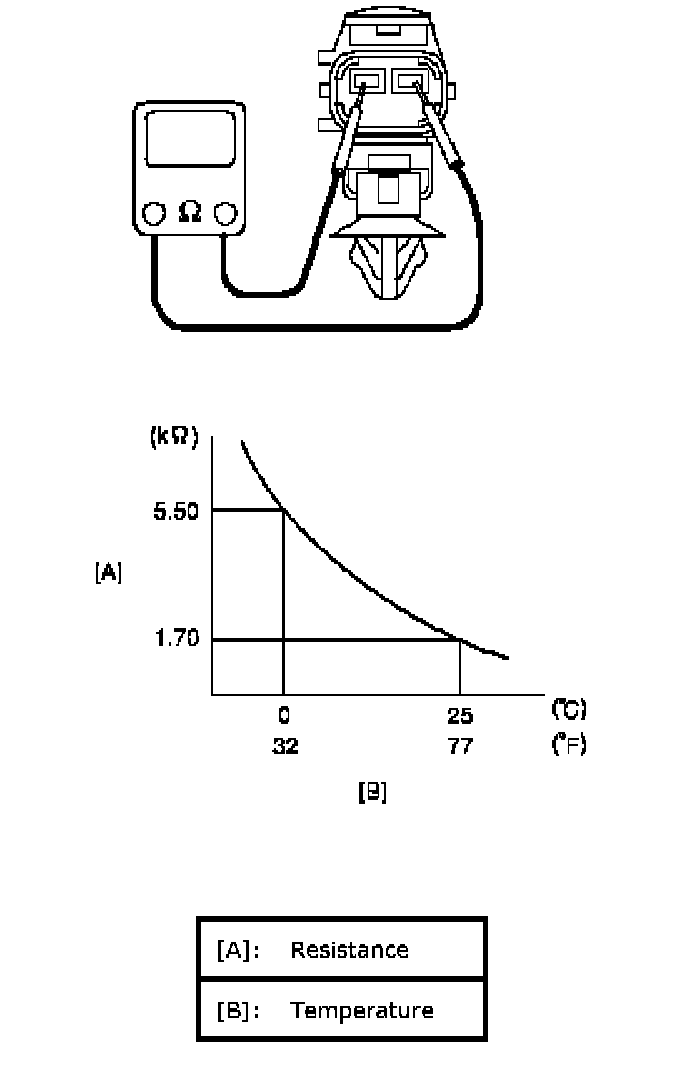

Measure resistance of outside air temperature sensor using an ohmmeter.
If resistance is out of specification, replace outside air temperature sensor.
Outside air temperature sensor resistance
1.61 kiloohms - 1.79 kiloohms at 25 �C° (77 �F°)
