Evaporator Core: Service and Repair
A/C Evaporator Removal and InstallationRemoval
1. Remove HVAC unit referring to HVAC Unit Removal and Installation.

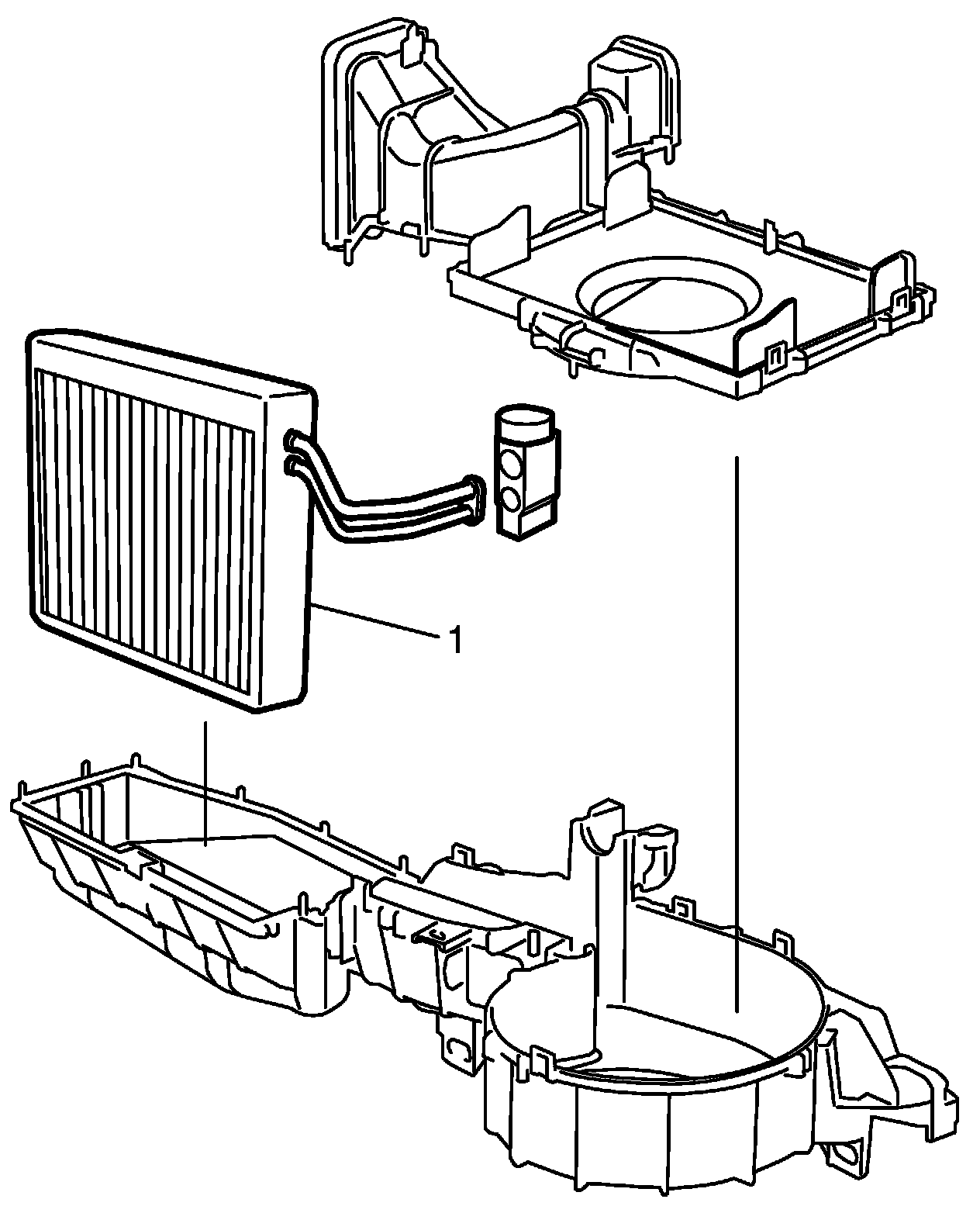

2. Remove evaporator (1) from HVAC unit by disassembling HVAC unit.
3. Remove evaporator temperature sensor from evaporator.
Installation
Reverse removal procedure to install A/C evaporator nothing the following instructions.
- Install evaporator temperature sensor onto evaporator referring to A/C Evaporator Temperature Sensor Removal and Installation.
