Receiver Dryer: Service and Repair
Desiccant Removal and InstallationRemoval
1. Remove condenser assembly from vehicle referring to A/C Condenser Assembly Removal Installation.

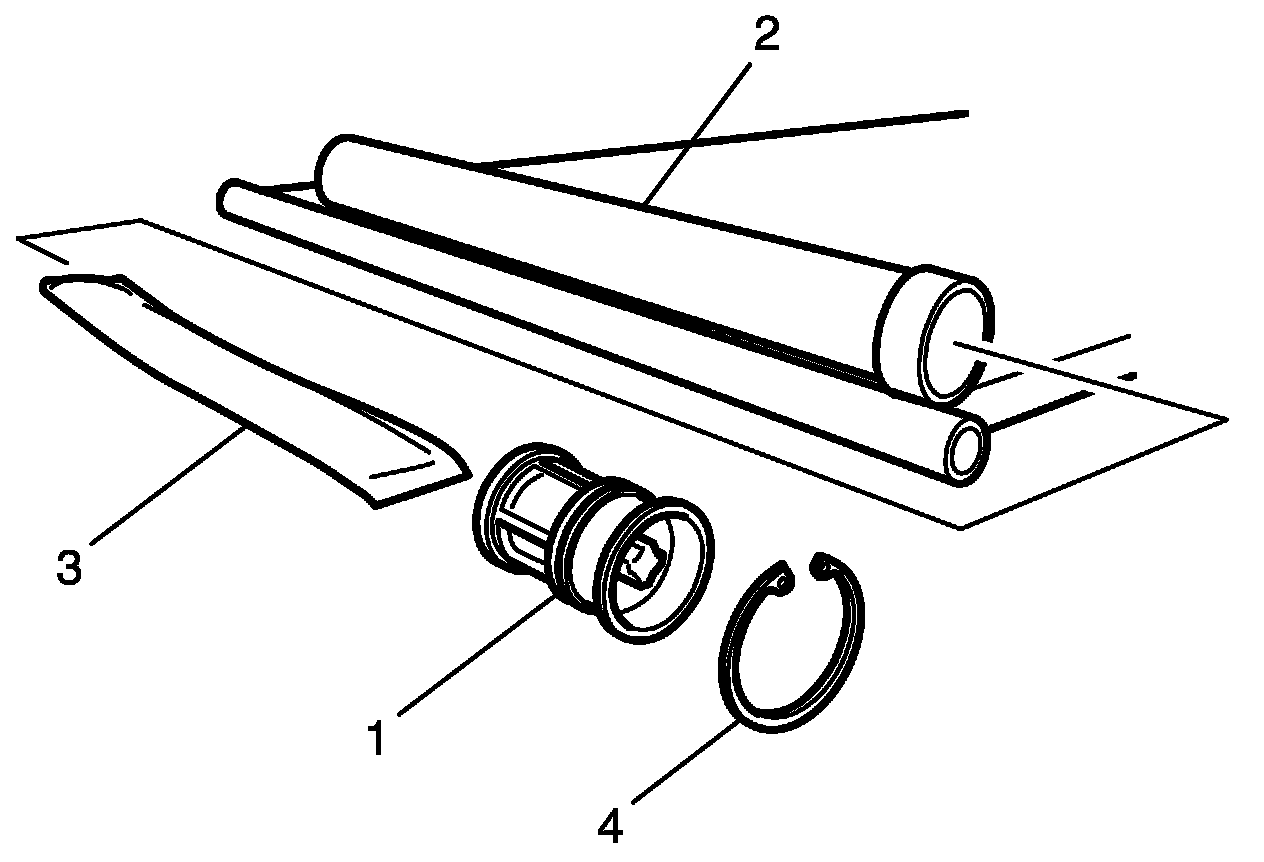

2. Remove circlip (4) using special tool.
Special Tool
: 09900 06107
3. Remove the filter (1) from the receiver/dryer tank (2).
4. Remove desiccant (3).
Installation
Reverse removal sequence to install desiccant, according to instruction manual with supply parts.
NOTE:
- Replenish specified amount of compressor oil to compressor suction side referring to Precautions on Replenishing Compressor Oil.

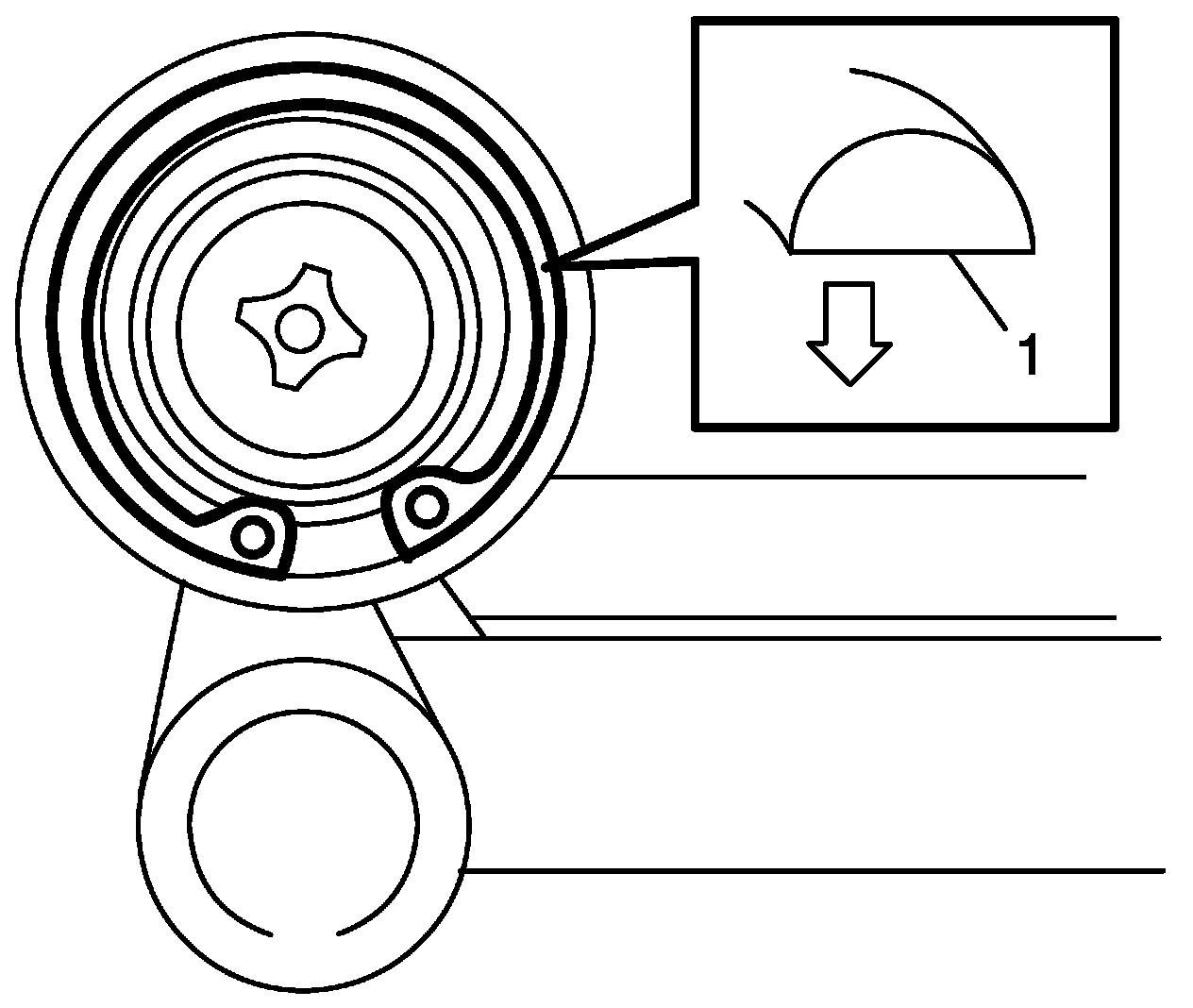

- Install circlip (1) as shown in figure.
