Lighting and Horns: Service and Repair
Hazard Warning Switch Removal And InstallationRemoval
1. Disconnect negative (-) cable at battery.
2. Remove audio unit referring to Audio Unit Removal and Installation.

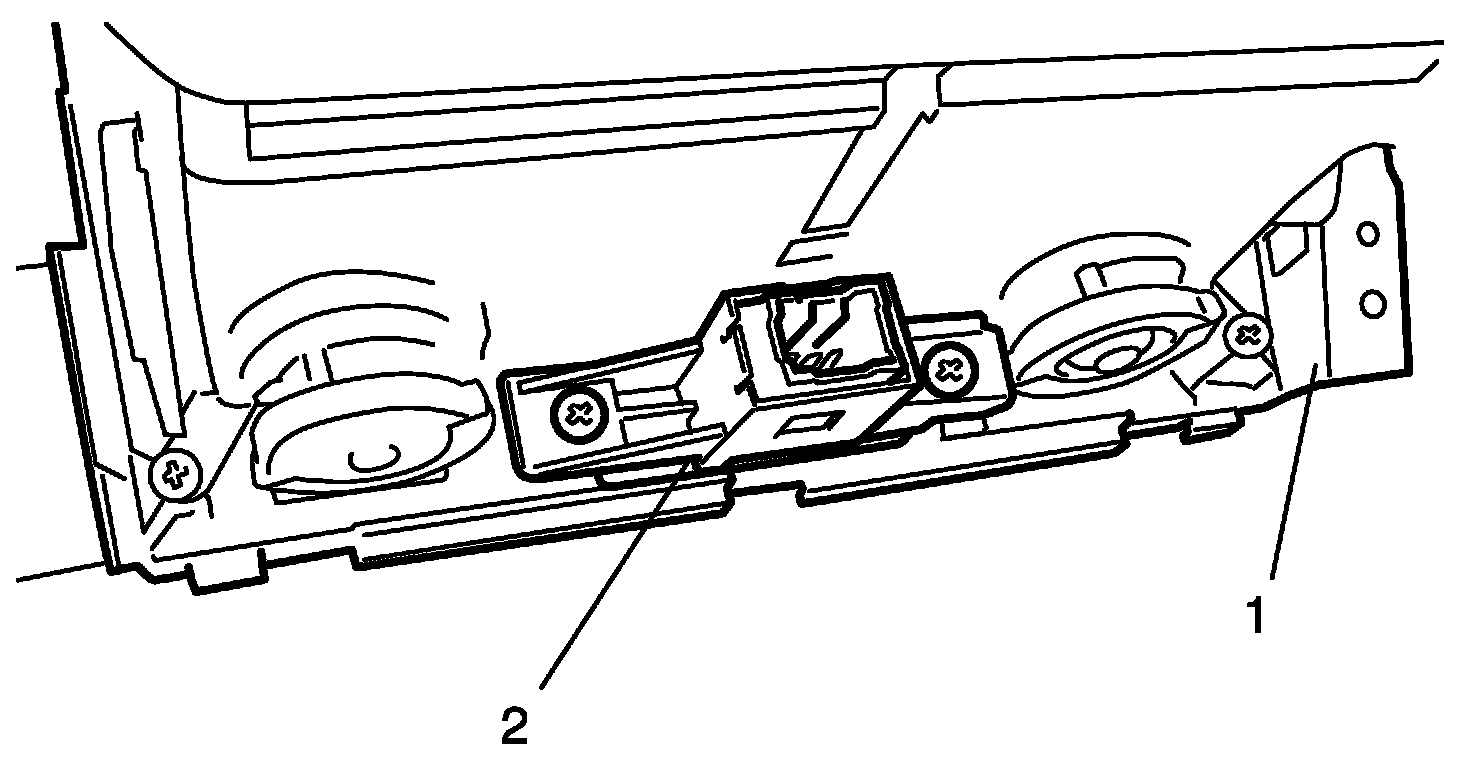

3. Remove center ventilation louver (1) referring to Center Ventilation Louver Removal and Installation.
4. Disconnect coupler, and then remove hazard warning switch (2) from center ventilation louver (1).
Installation
Reverse removal procedure for installation.
