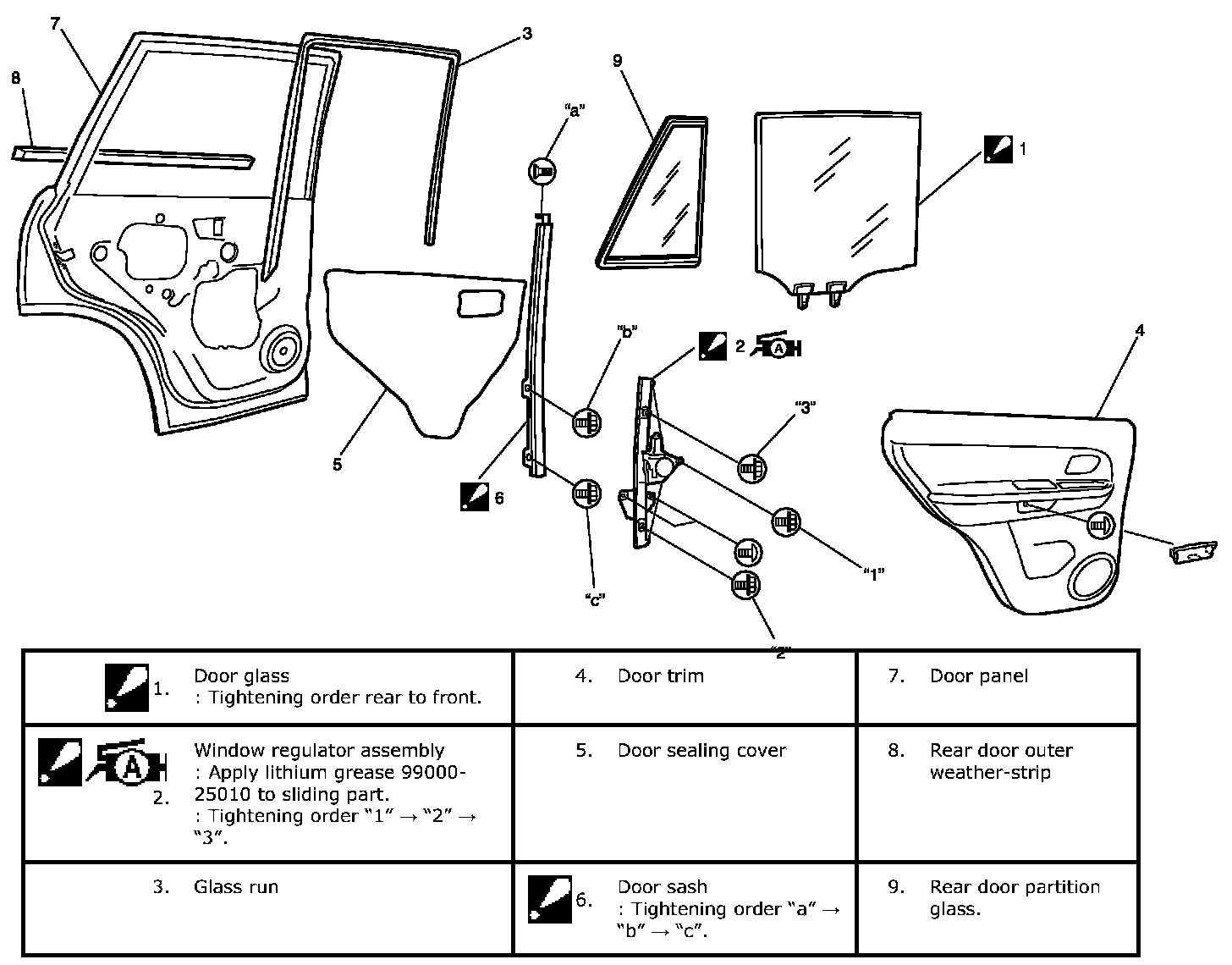

Rear Door Window Regulator: Service and Repair

Rear Door Window Regulator Removal And Installation







Removal

1. Remove door glass referring to Rear Door Glass Removal and Installation.
2. Disconnect power window motor lead wire at coupler and loosen clamp.

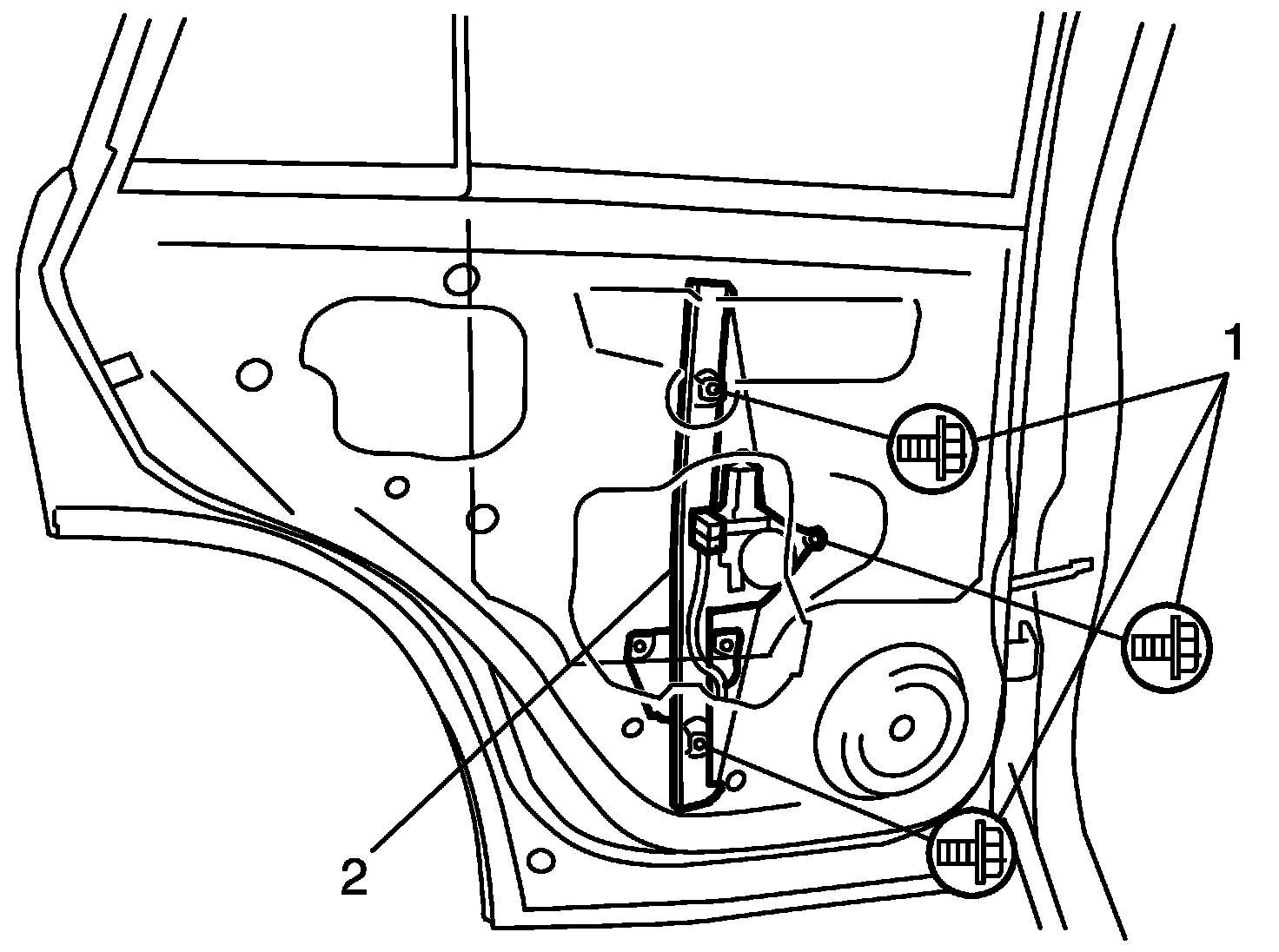

3. Loosen regulator mounting screws (1), and then remove rear window regulator (2).







Installation

Reverse removal procedure noting the following.
- Apply grease to sliding and rotating portions of window regulator.
: Grease 99000-25010 (SUZUKI Super Grease A)

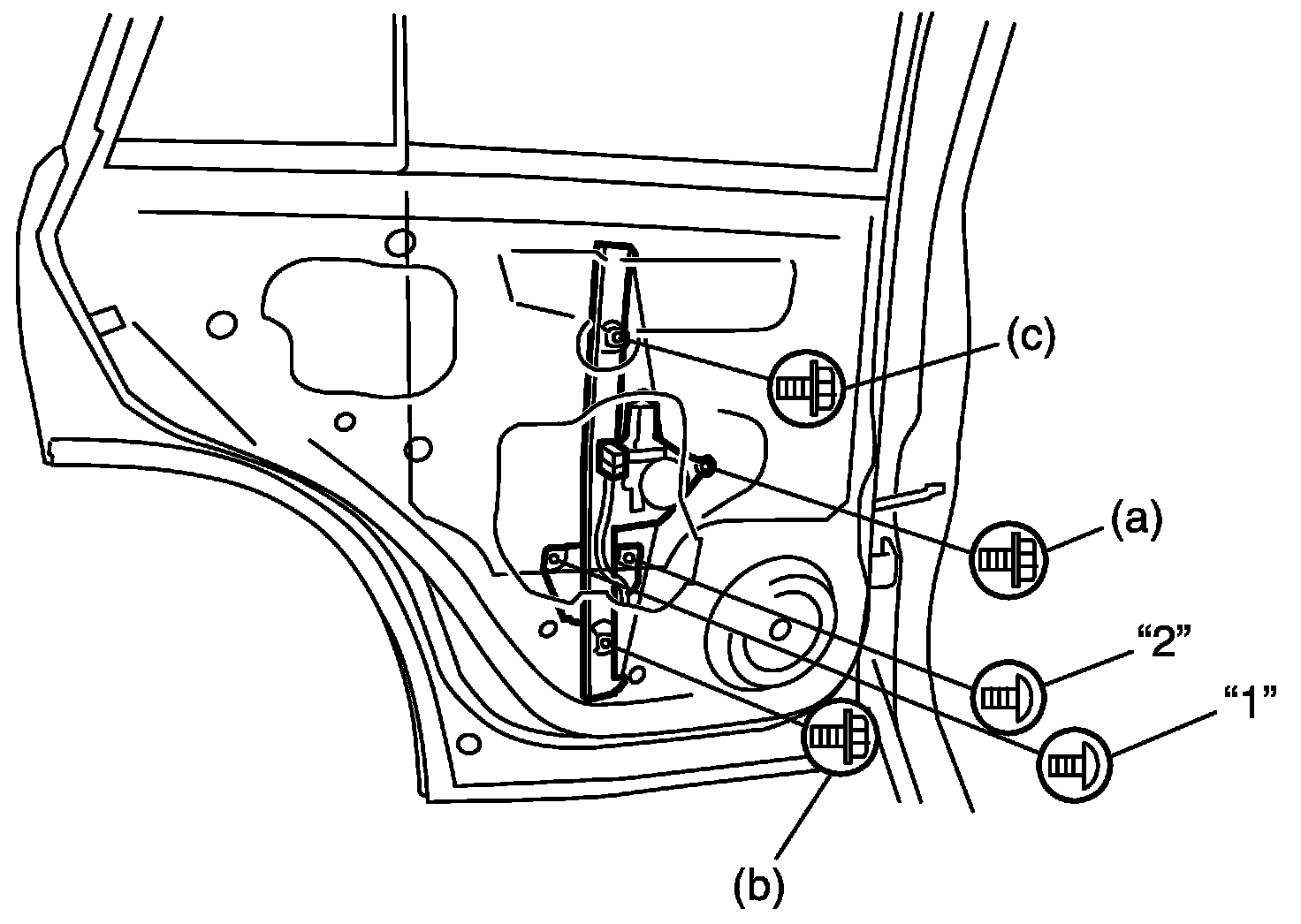

- Tighten rear door window regulator mounting screw (1) first and then (2).
- Tighten rear door window mounting screws in order of (a), (b) and (c).
