Wiper Relay: Service and Repair
Rear Wiper Relay Removal And InstallationRemoval
1. Disconnect negative (-) cable at battery.
2. Remove rear end door trim from rear end door referring to Rear End Door Assembly Components.

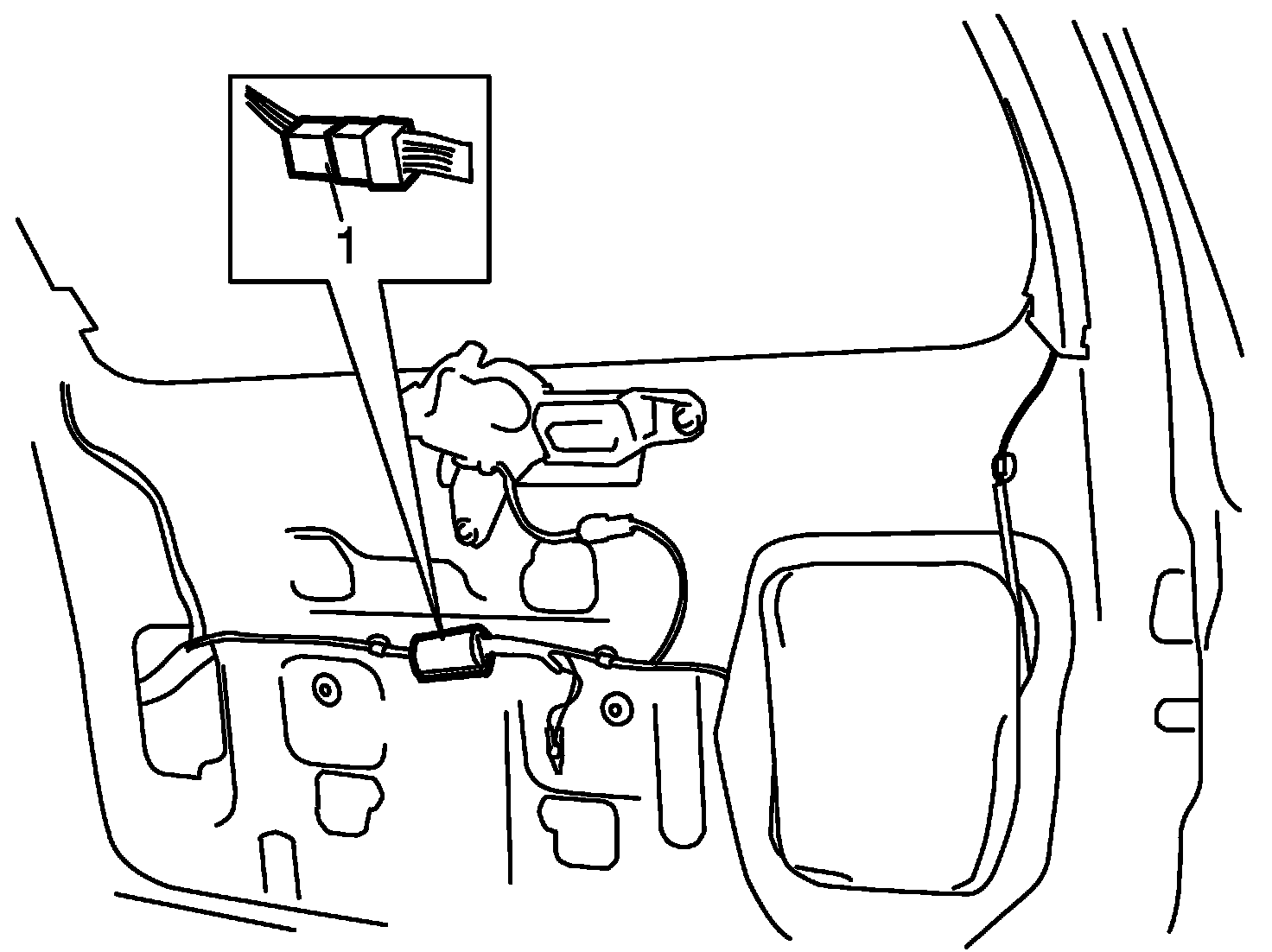

3. Disconnect rear wiper connector and then remove rear wiper relay (1).
Installation
Reverse removal procedure for installation.
