Power Mirror Motor: Testing and Inspection

Power Door Mirror Actuator Inspection

1. Remove door trim referring to step 1) to 3) of Front Door Glass Removal and Installation.
2. Disconnect door mirror coupler (1).
3. Check that door mirror operates properly when battery voltage is applied to connector terminals.

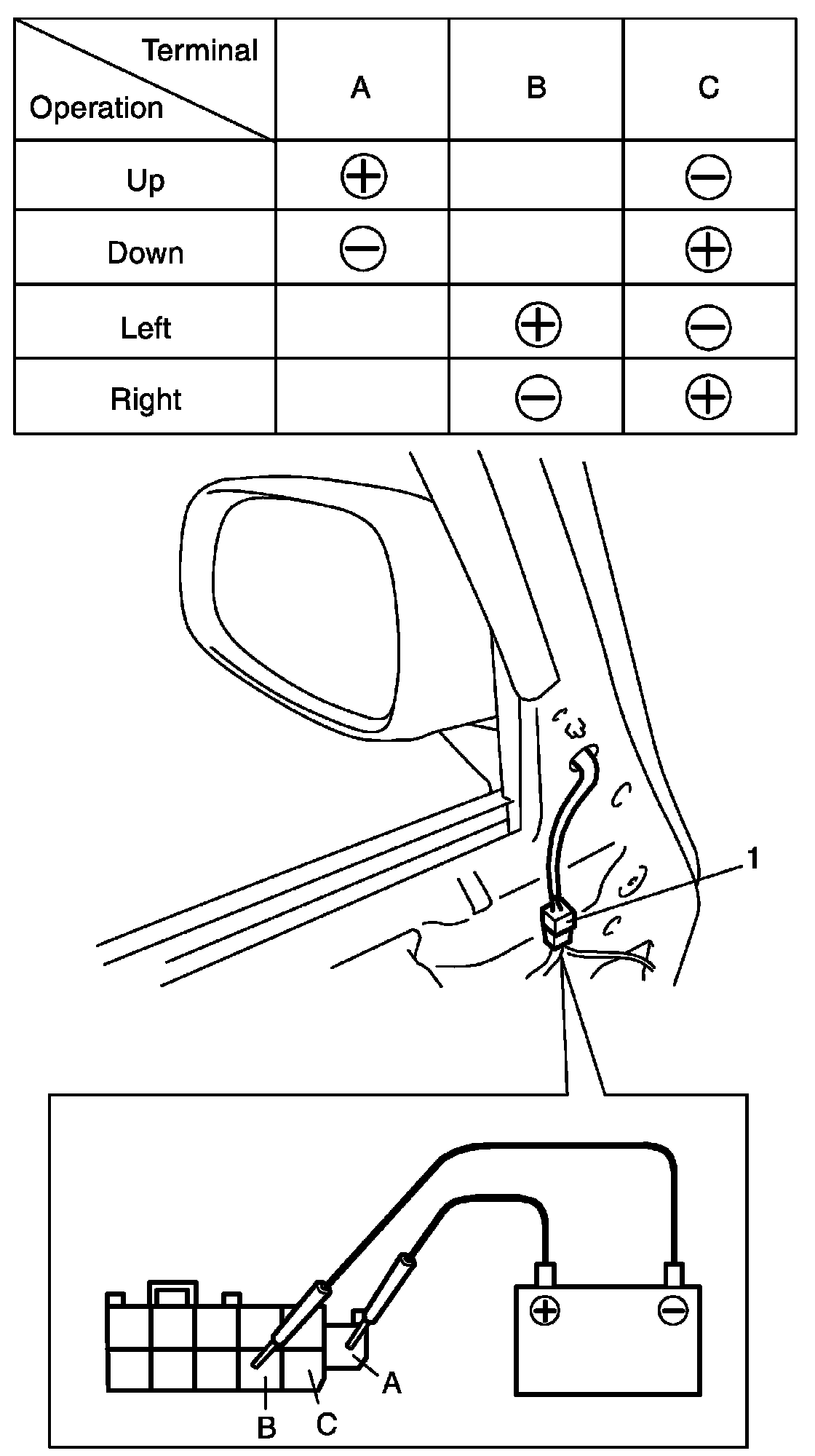

4. Connect battery positive (+) and negative (-) terminal to the door mirror terminals as shown.
If it does not follow the table's operation, replace door mirror assembly.
