Steering Angle Sensor Inspection
Steering Angle Sensor Inspection ^
Check sensor for dents, cracks or deformation.
^
Check sensor connector (sensor side and harness side) and sensor connector lock mechanism for damage or crack.
^
Check connector terminals for bend, corrosion or rust.

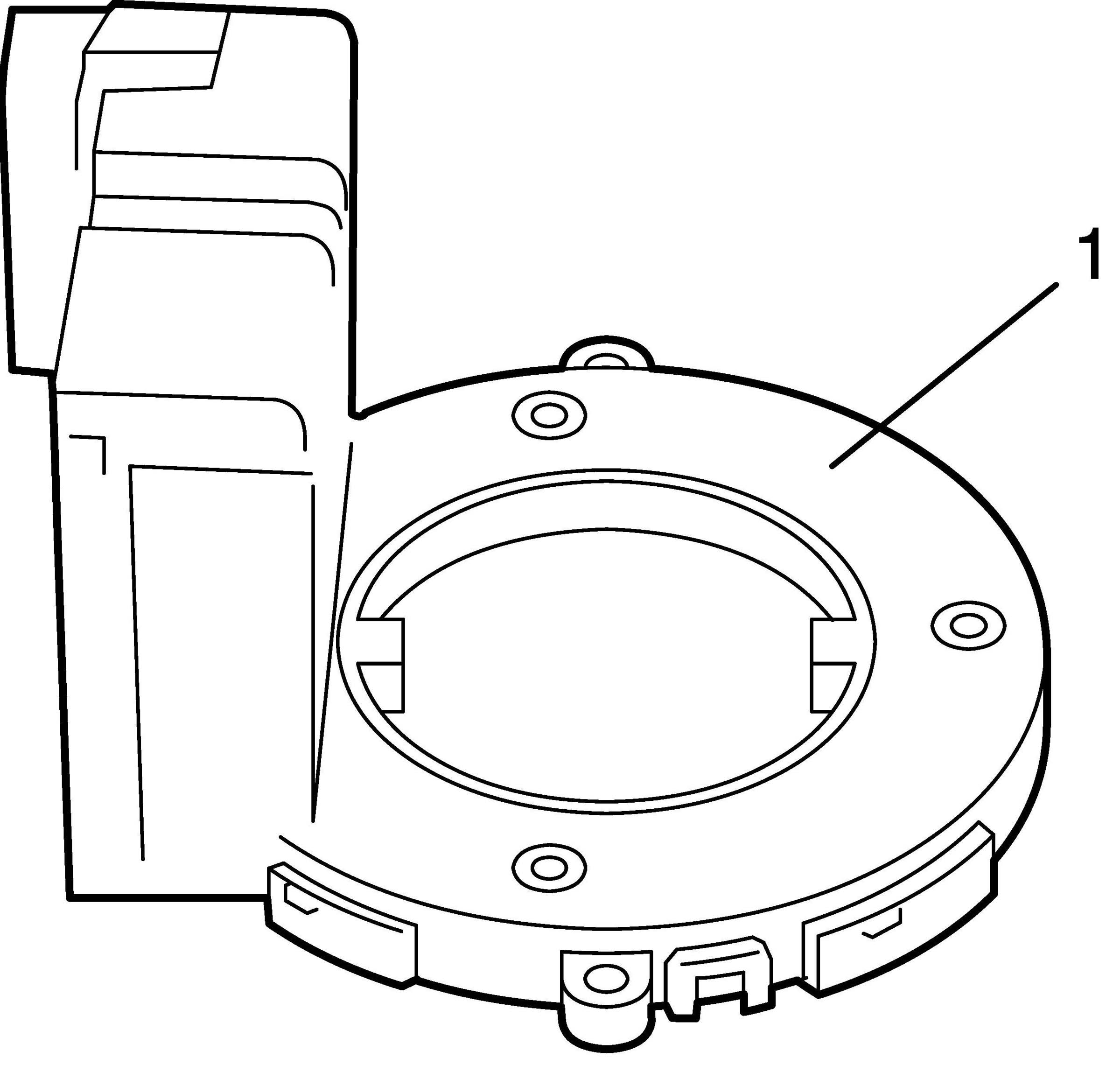

If it is found faulty, replace
steering angle sensor (1).
