Power Brake Assist: Adjustments

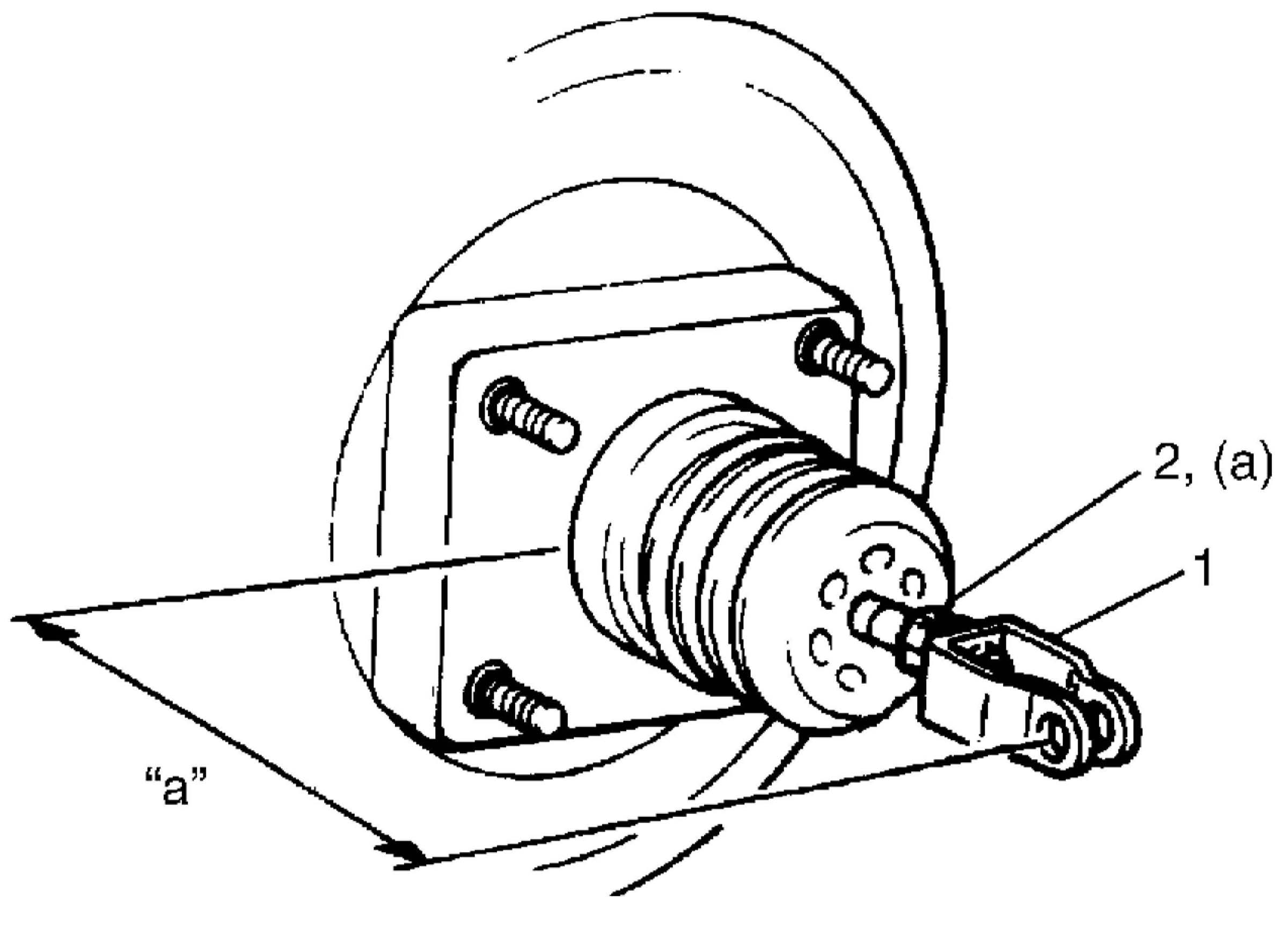

Booster Push Clevis Rod Adjustment Install push clevis rod (1) so that measurement "a" is obtained and torque nut (2) to specification.
Tightening torque
Clevis pin lock nut a:
26 Nm (2.6 kgf-m, 19.0 ft. lbs.) Clevis installing position (length "a")
"a":
129.5 - 130.5 mm (5.10 - 5.13 in.)
