CPP Switch (For Cruise Control) Removal and Installation

CPP Switch (for Cruise Control) Removal And Installation

Removal




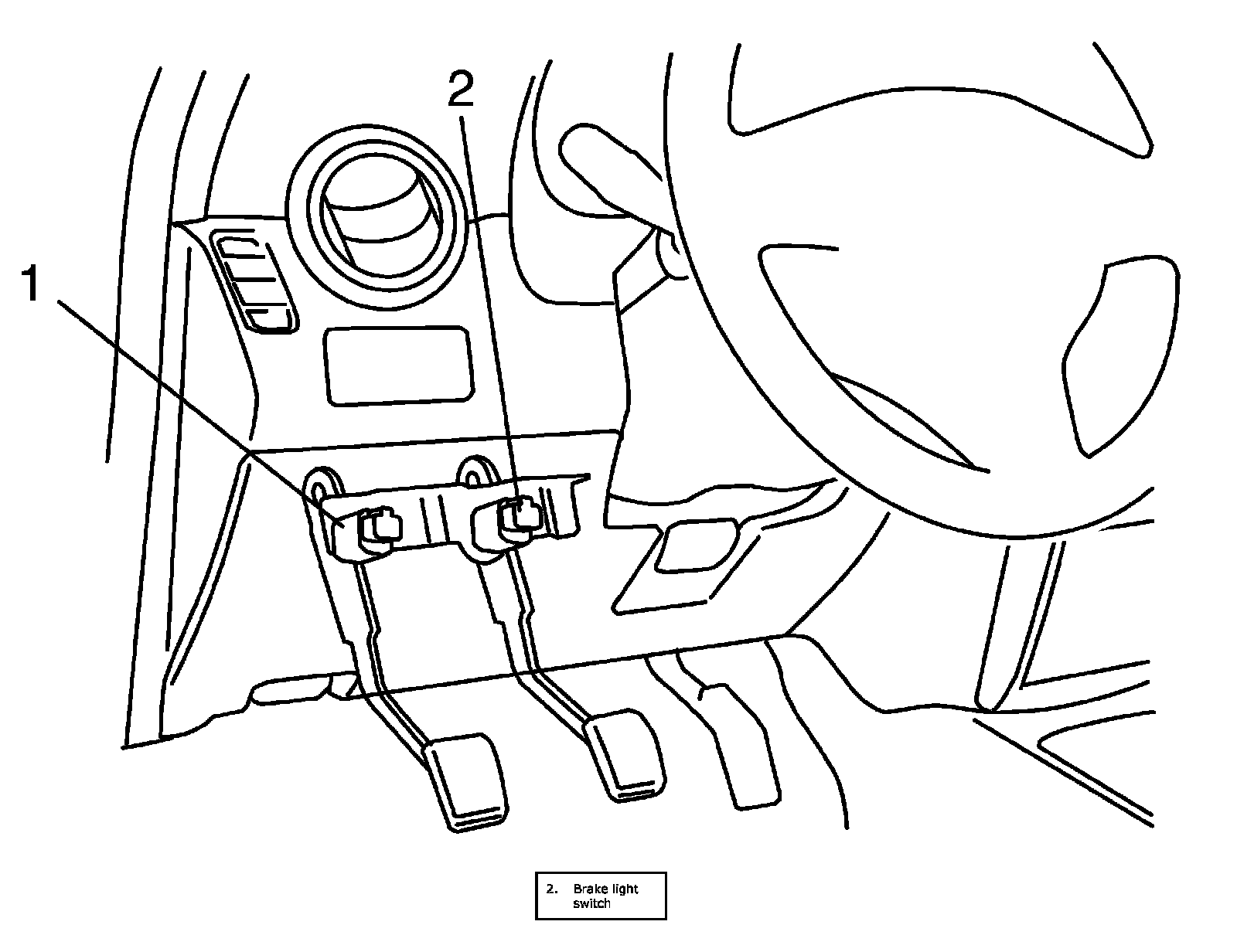

1. Disconnect connector of CPP switch (for cruise control) (1) with ignition switch OFF.
2. Remove CPP switch (for cruise control) (1) from pedal bracket.

Installation
Reference: Clutch Pedal Position (CPP) Switch (for Cruise Control) Inspection and Adjustment

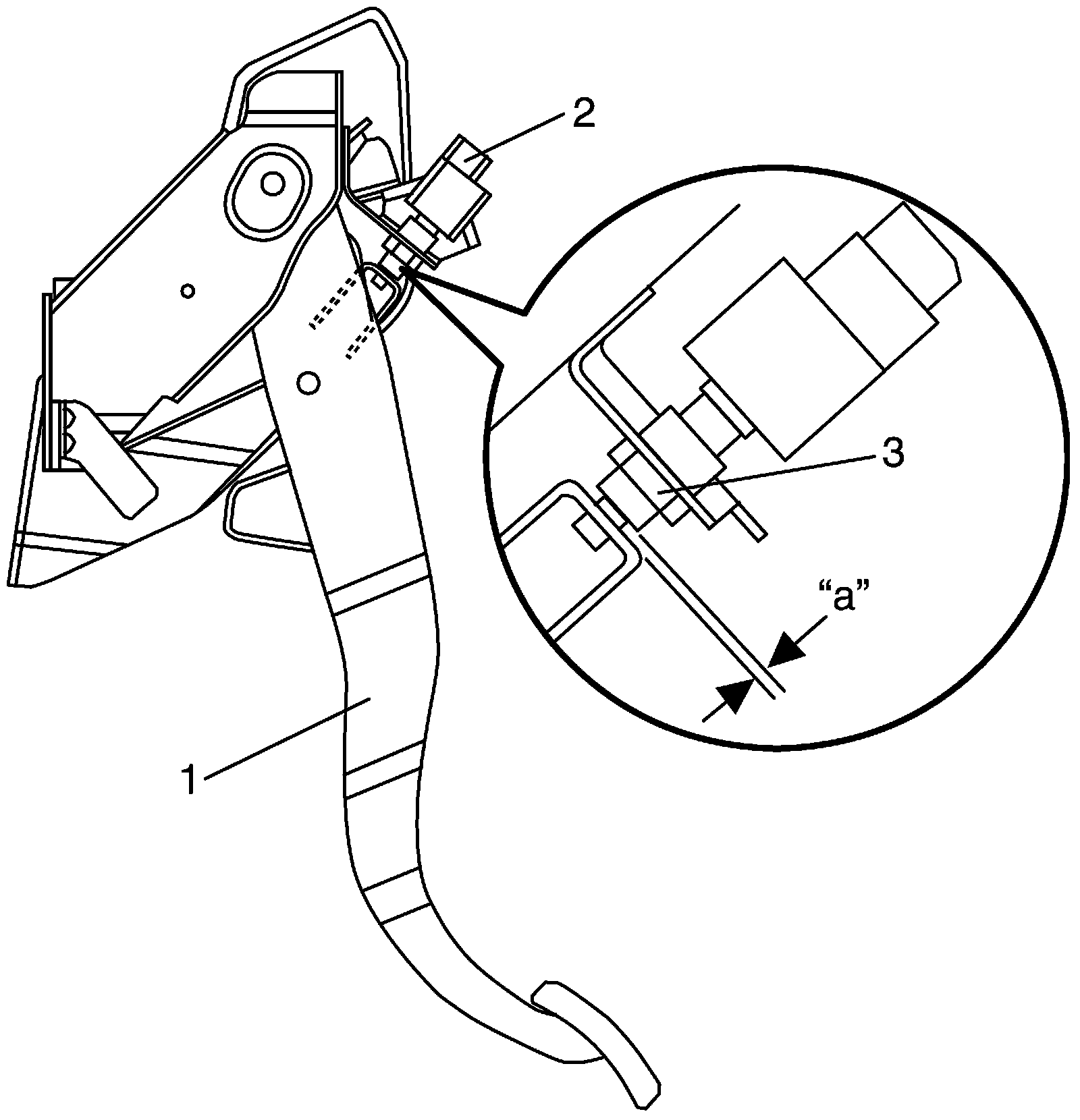

1. Install CPP switch (for cruise control) (2) to pedal bracket.
2. With clutch pedal (1) released, adjust switch position so that clearance between end of thread and clutch pedal bracket is within specification.
Clearance between end of thread and clutch pedal bracket
"a": 1.5-2.0 mm (0.06-0.08 in.)

3. Tighten lock nut (3) to specified torque.

Tightening torque
CPP switch lock nut a: 7.5 Nm (0.75 kgf-m, 5.5 ft. lbs.)




4. Connect connector to CPP switch (for cruise control) securely.
