Evaporator Temperature Sensor / Switch: Testing and Inspection

Evaporator Temperature Sensor Inspection

Reference: Evaporator Temperature Sensor Removal and Installation:Manual Type

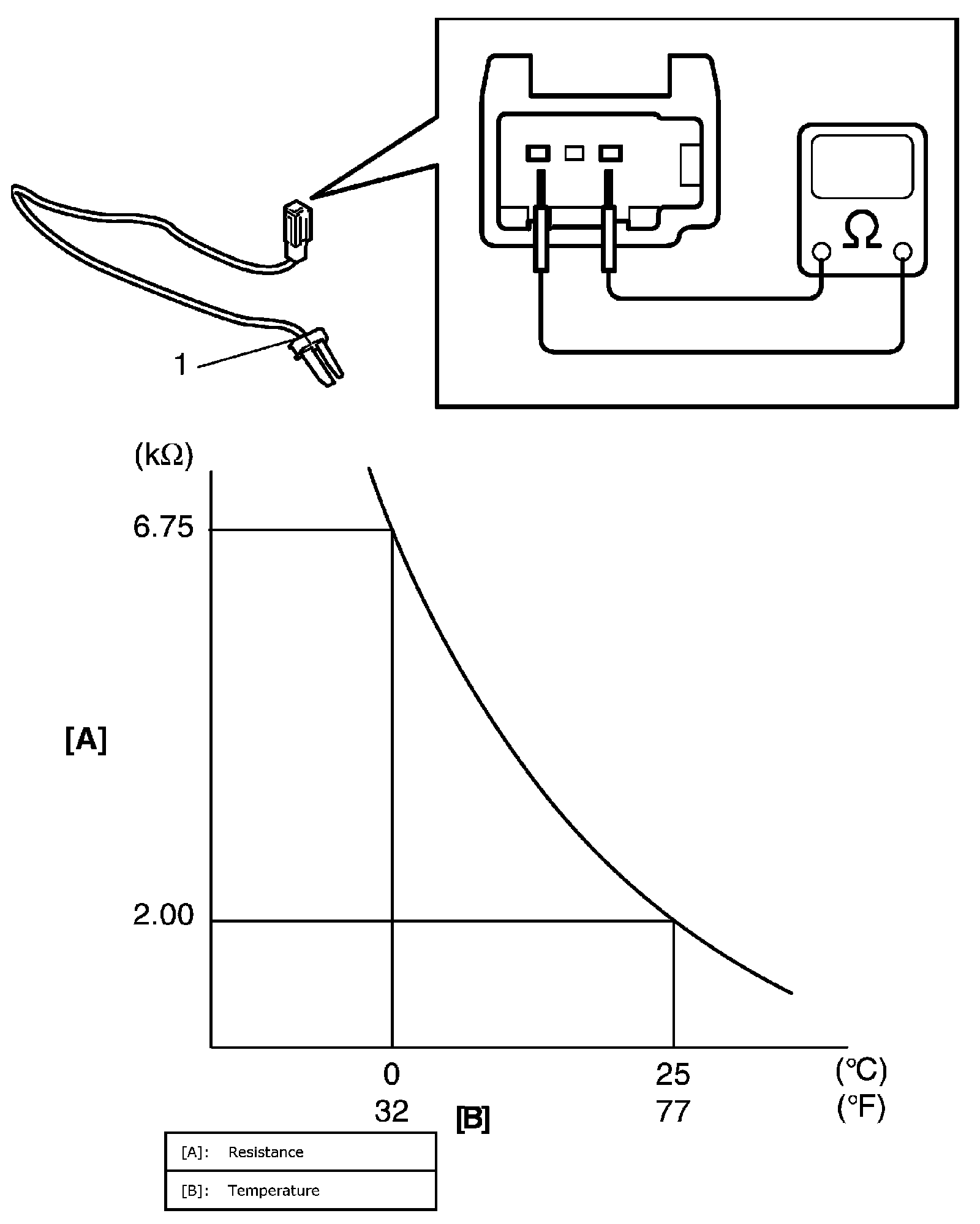

Check resistance between terminals of evaporator temperature sensor (1).

If check results are as not specified, replace evaporator temperature sensor.

Evaporator temperature sensor resistance
0 °C (32 °F): 6.6 - 6.8 kohms

25 °C (77 °F): 2.0 - 2.1 kohms
