A/C Refrigerant Pressure Sensor Removal and Installation
A/C Refrigerant Pressure Sensor Removal and InstallationRemoval
1. Recover refrigerant from the A/C system with the recovery and recycling equipment referring to "Recovery" in Operation Procedure for Refrigerant Charge:Manual Type.
2. Disconnect negative (-) cable from battery.
3. Disconnect A/C refrigerant pressure sensor connector.

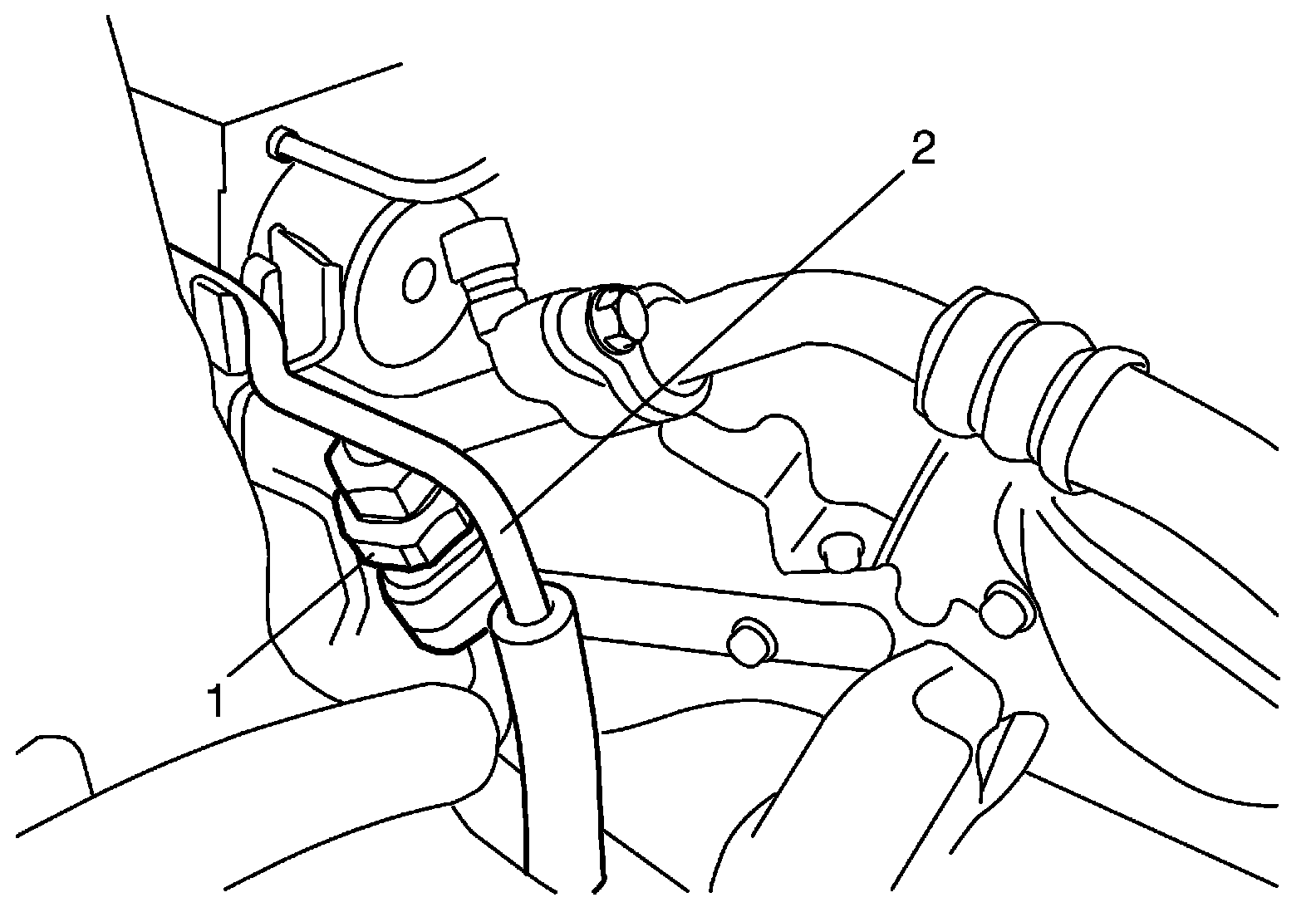

4. Remove A/C refrigerant pressure sensor (1) from liquid pipe (2).
Installation
Reference: A/C Refrigerant Pressure Sensor and Its Circuit Inspection:Manual Type
Reverse removal procedure noting the following instructions.
^ Apply compressor oil to O-ring of A/C refrigerant pressure sensor.
^ Tighten A/C refrigerant pressure sensor to specified torque.
Tightening torque

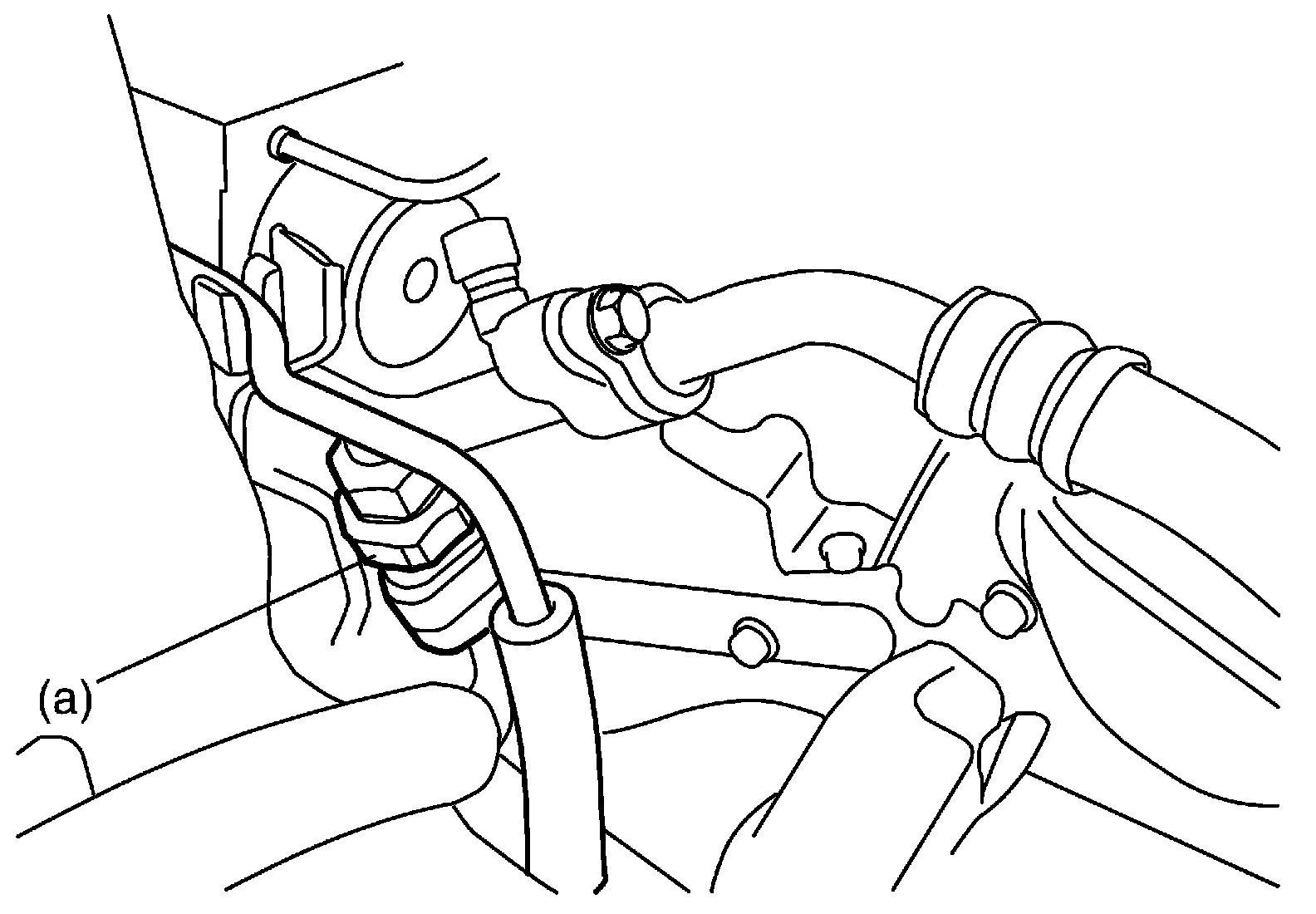

A/C refrigerant pressure sensor a: 11 Nm (1.1 kg.m, 8.0 ft. lbs.)
^ Evacuate and charge the A/C system referring to "Evacuation" and "Charge" in Operation Procedure for Refrigerant Charge:Manual Type.
