Dimmer Switch: Testing and Inspection
ILLUMINATION CONTROLLER INSPECTION (IF EQUIPPED) 1.
Remove illumination controller from instrument panel.
2.

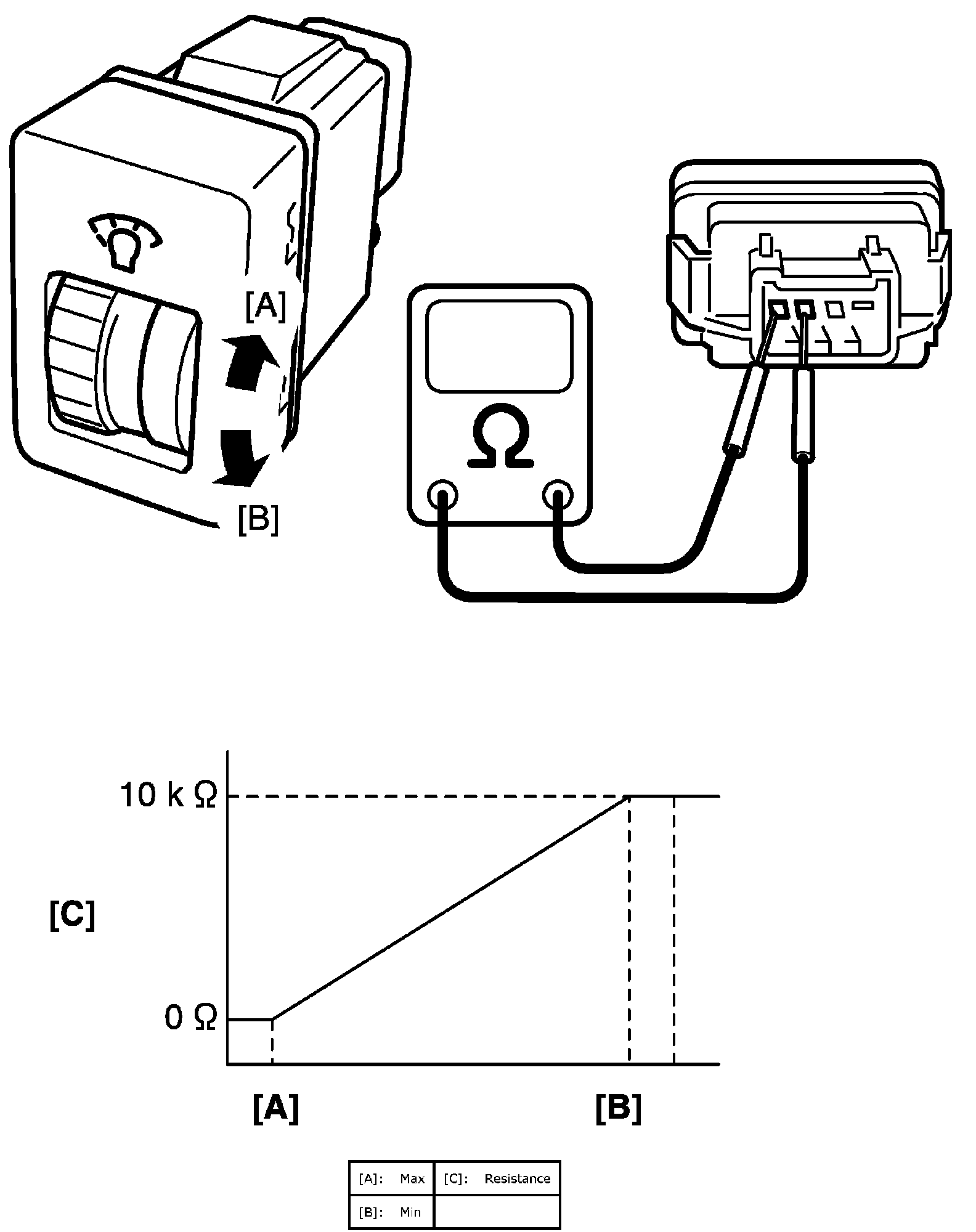

Check resistance between terminals for illumination controller.
If measured value is out of specification, replace illumination controller.
