Door Switch: Testing and Inspection

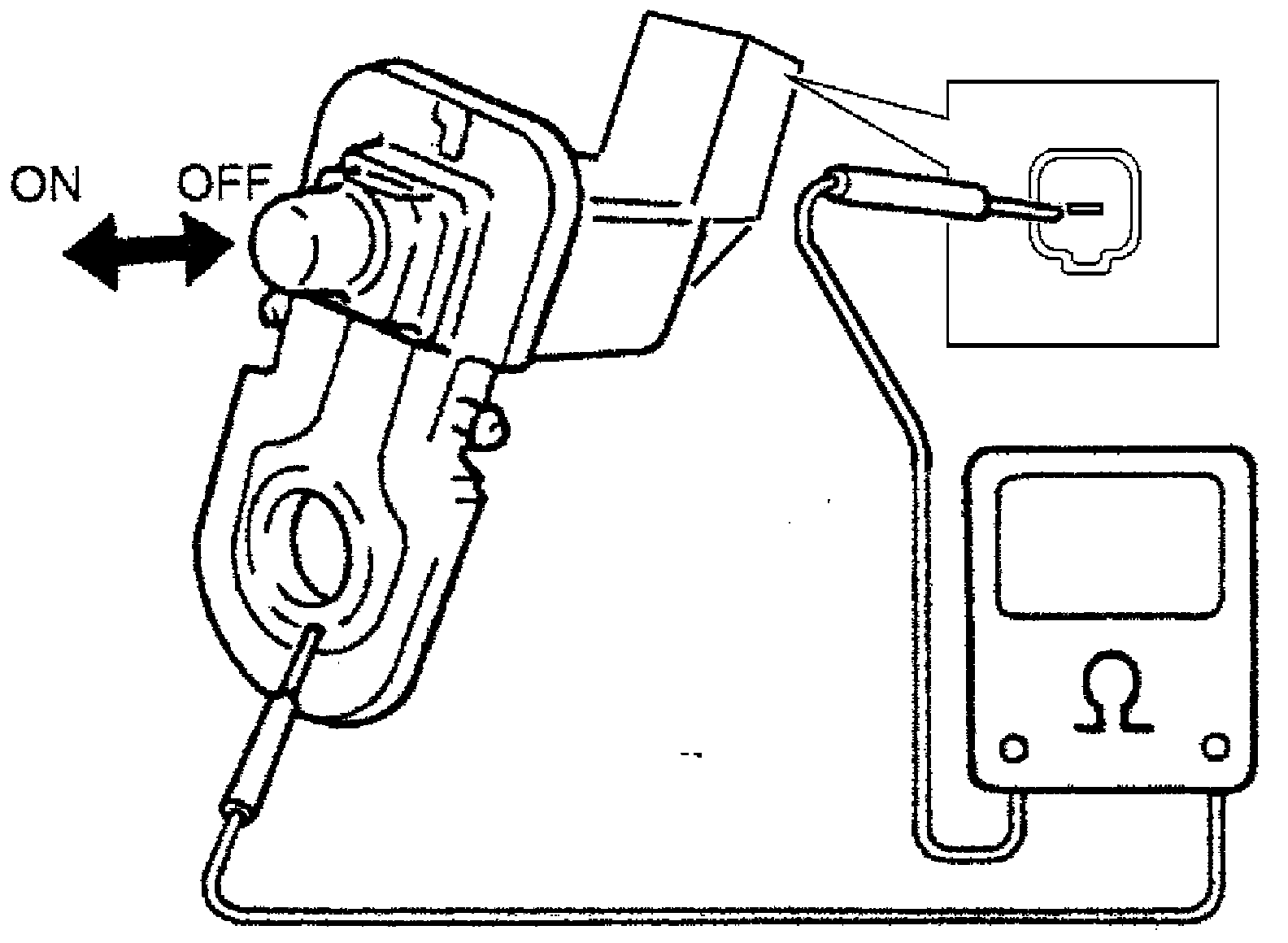

DOOR SWITCH (FRONT / REAR DOOR) INSPECTIONRemove
door switch from body and check switch for continuity. If found defective, replace switch.
Door switch (front / rear door) specificationOFF position (Door closed): No continuity
ON position (Door open): Continuity
