Fog/Driving Lamp: Service and Repair

FRONT FOG LIGHT REMOVAL AND INSTALLATION (IF EQUIPPED)

Removal
1. Disconnect negative (-) cable at battery.
2. Remove front bumper. Refer to Front Bumper and Rear Bumper Components.

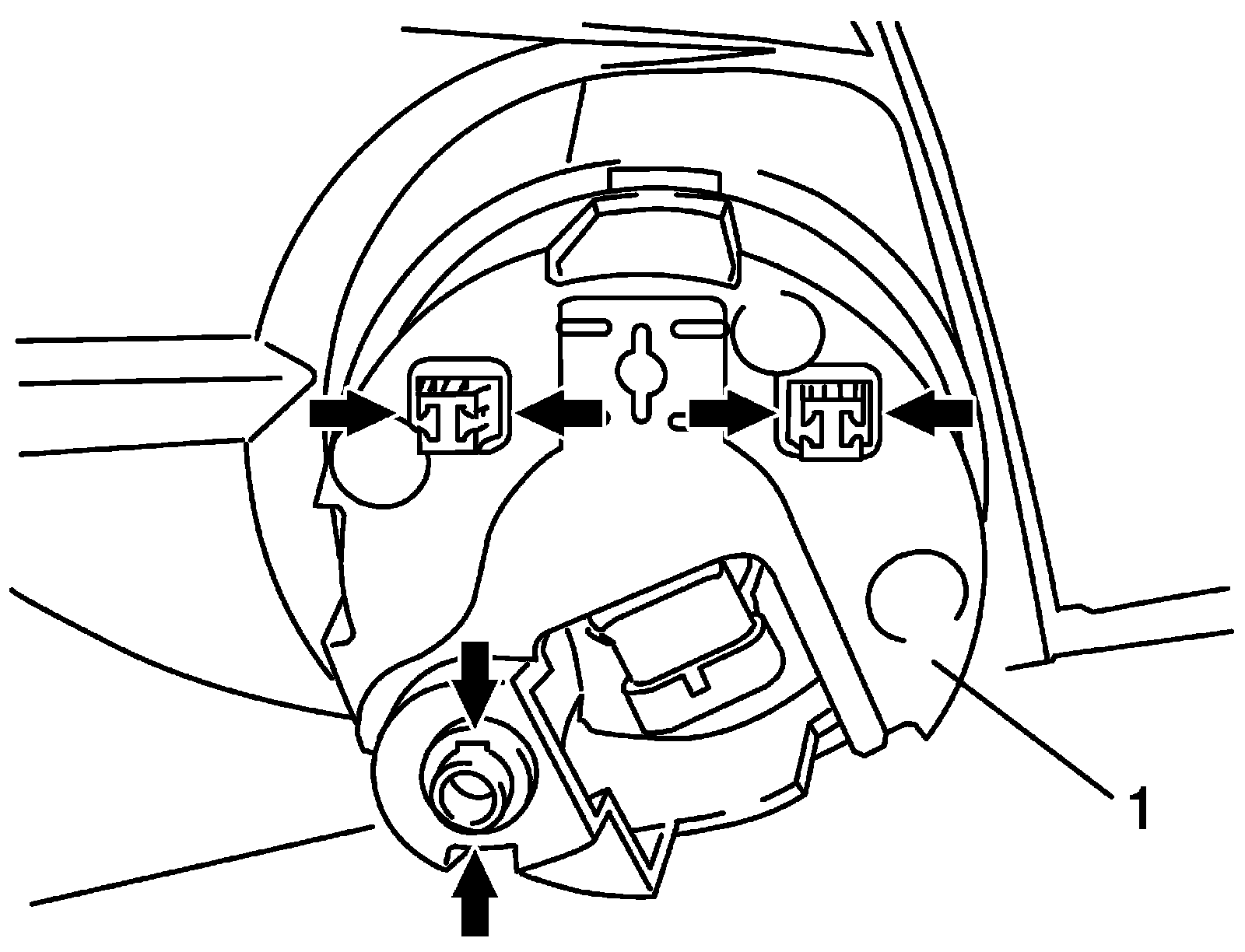

3. Disconnect coupler from fog light (1).
4. Detach fog light pushing clips to arrow direction.





Installation
Reverse removal procedure for installation nothing the following:
^ After installing, adjust aiming referring to Front Fog Light Aiming Adjustment with Screen (If Equipped).
