Horn: Service and Repair
HORN REMOVAL AND INSTALLATIONRemoval 1.
Disconnect negative (-) cable at battery.
2.
Remove front bumper referring to Front Bumper and Rear Bumper Components.
3.

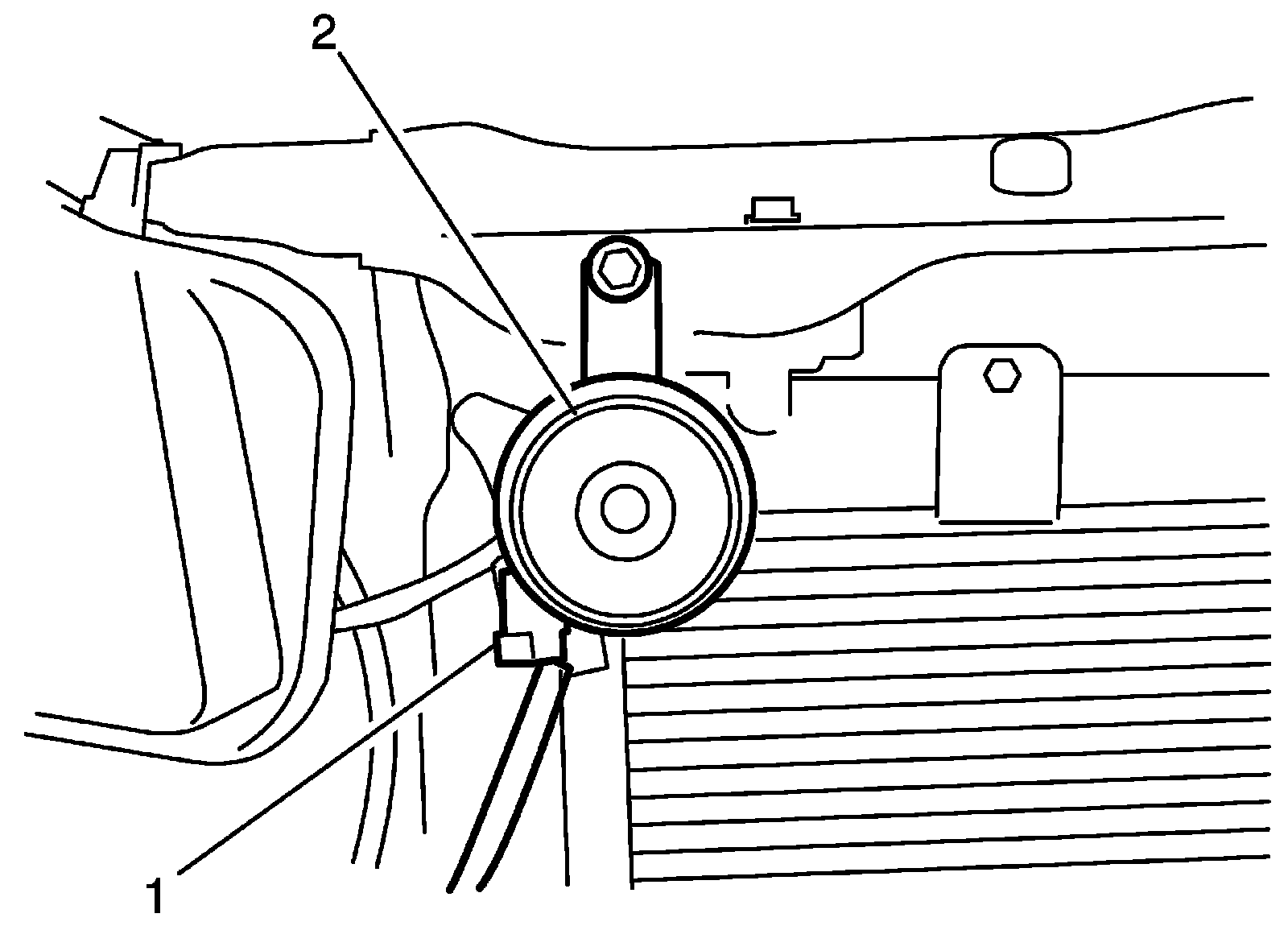

Disconnect
horn connector (1).
4.
Remove
horn (2).
InstallationReference:
Horn Inspection
Reverse removal procedure for installation.
