Air Cleaner Housing: Service and Repair

Air Cleaner Assembly Removal and Installation

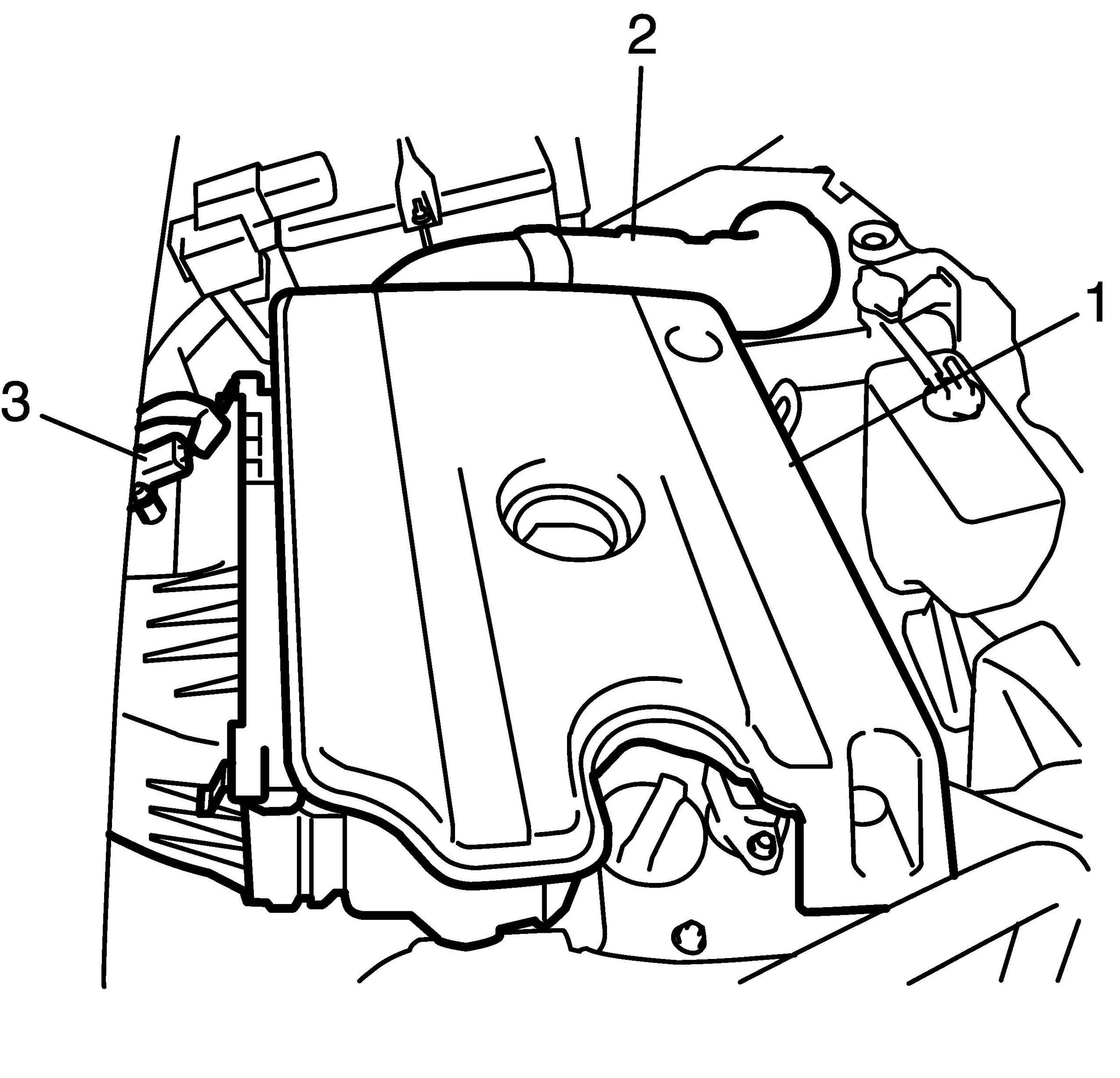

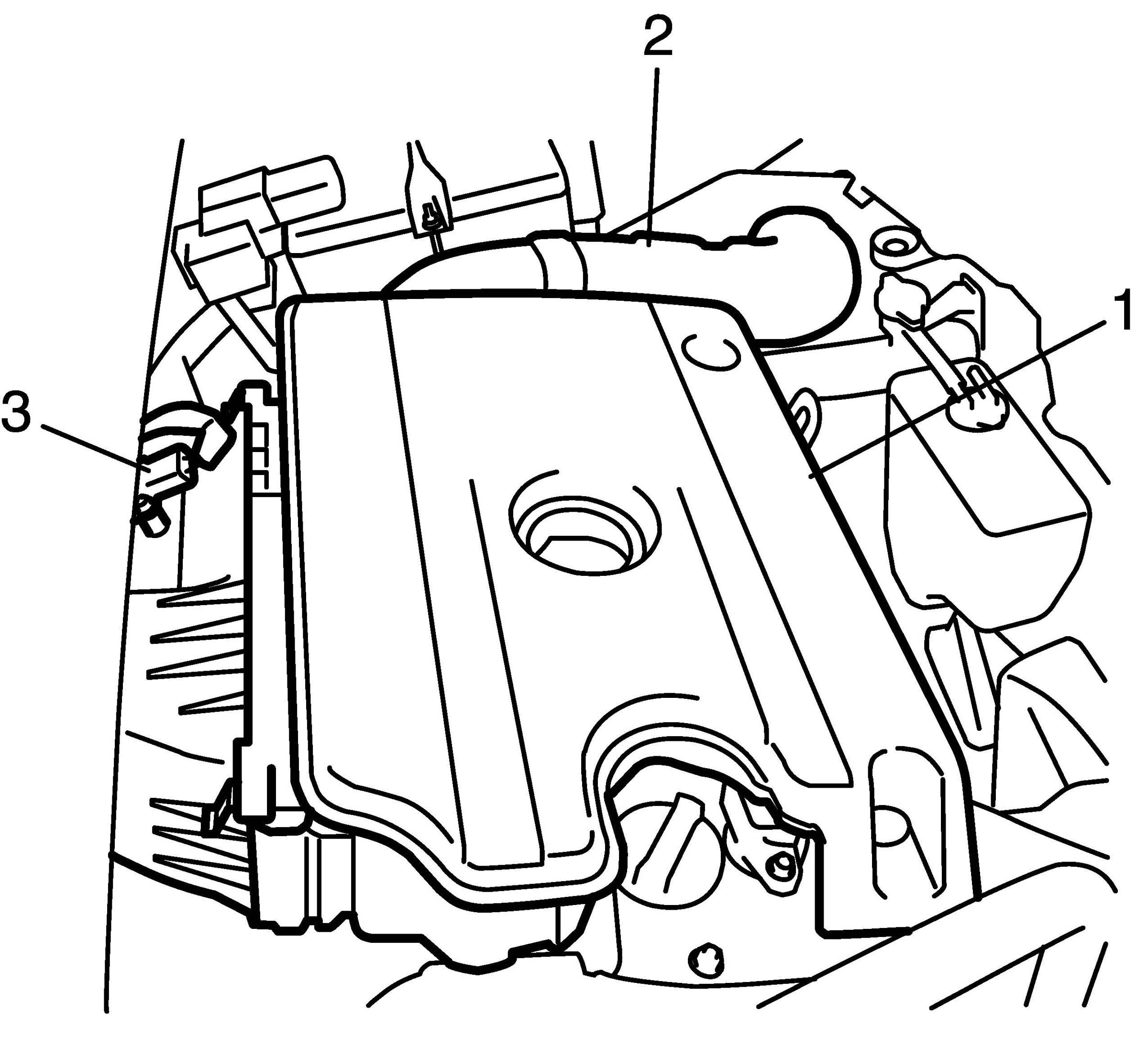

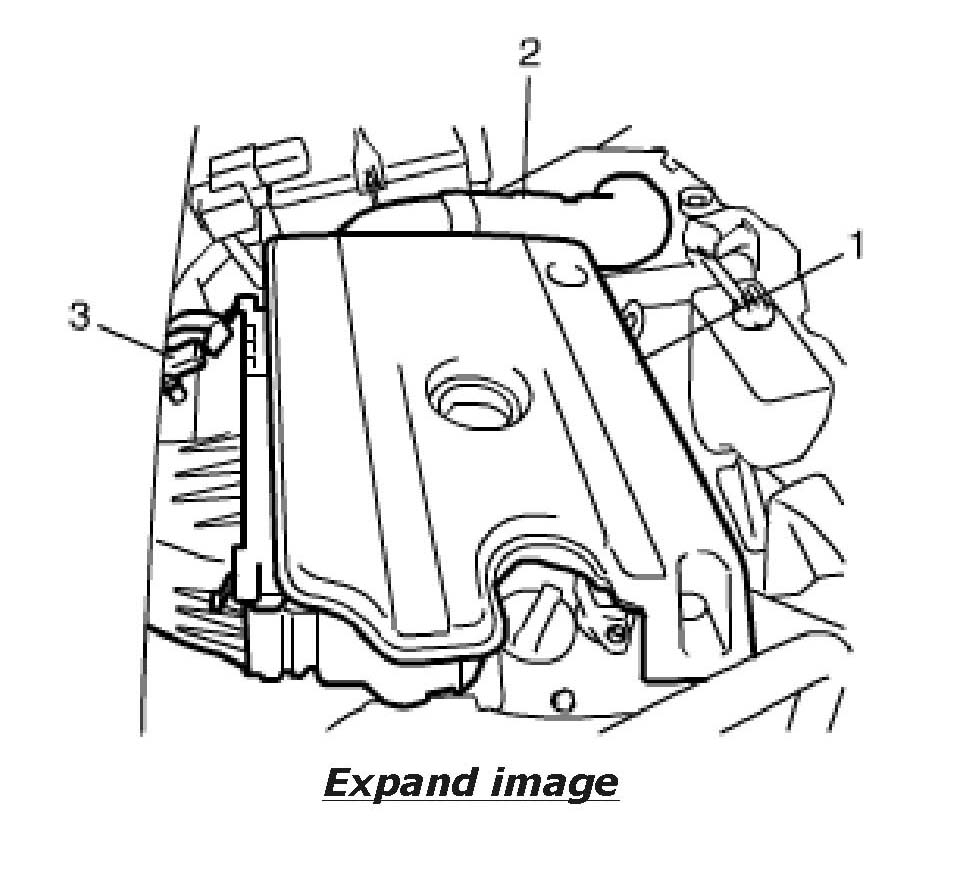

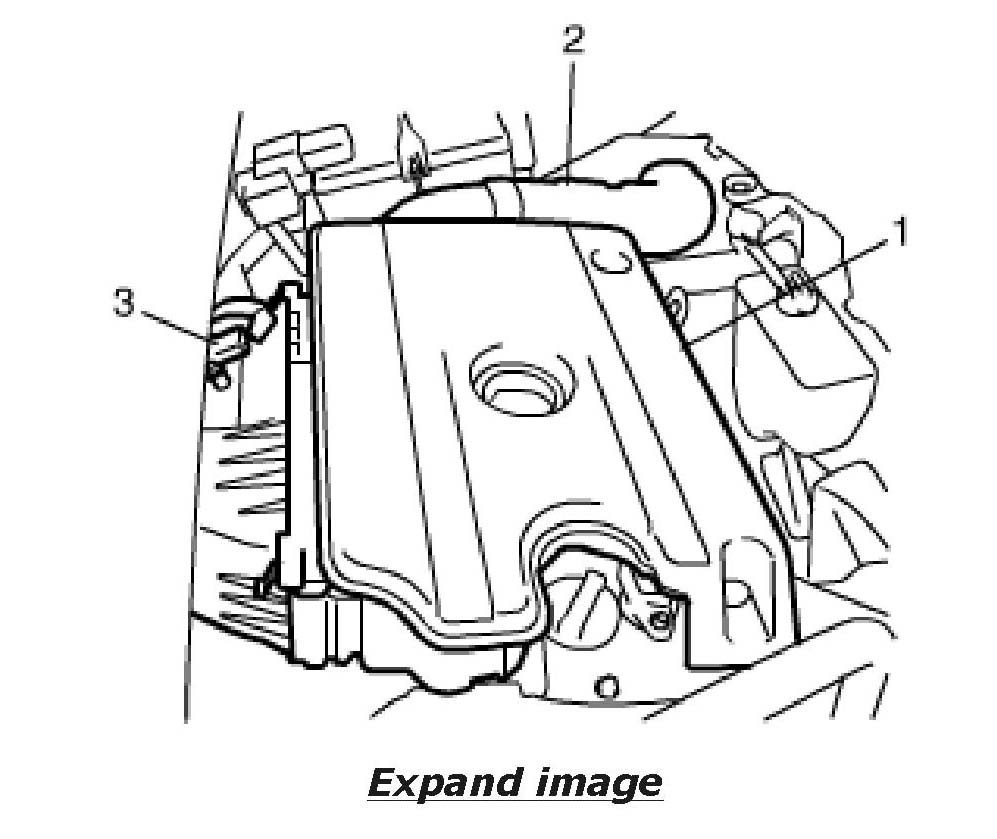

Removal
1. Remove air cleaner inlet hose (2) and outlet hose.
2. Disconnect MAF sensor connector (3).
3. Remove air cleaner case (1).

Installation
1. Install air cleaner case (1).
2. Connect MAF sensor connector (3), and tighten hose clamp to specified torque.

Tightening torque
Air cleaner outlet hose clamp: 3 Nm (0.3 kgf-m, 2.5 ft. lbs.)

3. Install air cleaner inlet hose (2) and outlet hose.
