P/S Fluid Leakage Check

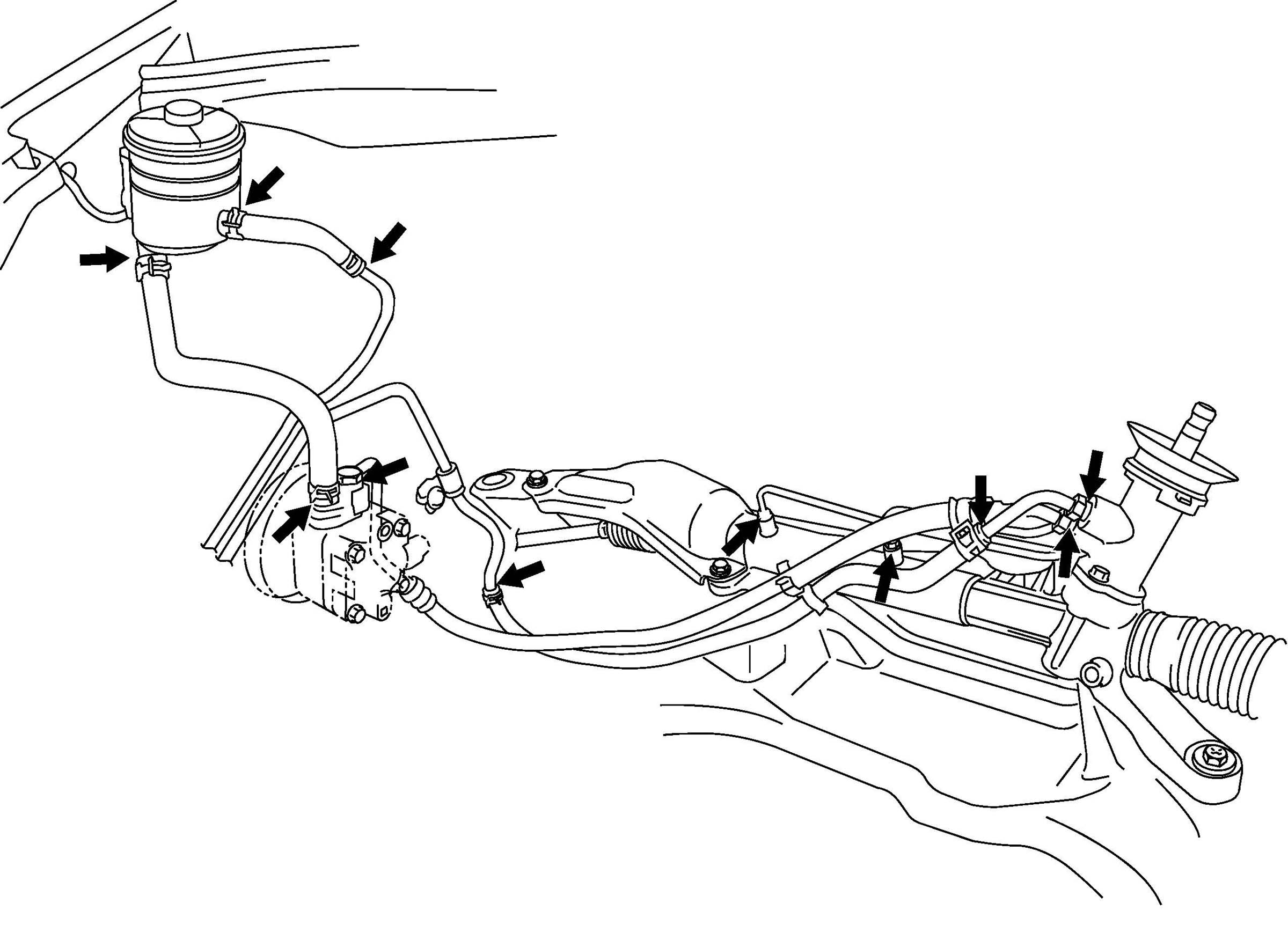

P/S Fluid Leakage Check Start engine and turn steering wheel fully to the right and left so that maximum hydraulic pressure is provided. Then visually check gear case, P/S pump and P/S fluid reservoir themselves and each joint of their connecting pipes for leakage.
CAUTION: Never keep steering wheel turned fully for longer than 10 seconds.
