Air Fuel Ratio (A/F) Sensor On-Vehicle Inspection
Air Fuel Ratio (A/F) Sensor On-Vehicle InspectionHeater
1. Disconnect A/F sensor connector.
2. Using ohmmeter, measure resistance of Sensor heater between terminals "VB" and "GND" at sensor connector. If found faulty, replace A/F sensor.
NOTE: Temperature of sensor affects resistance value largely. Make sure that sensor heater is at correct temperature.

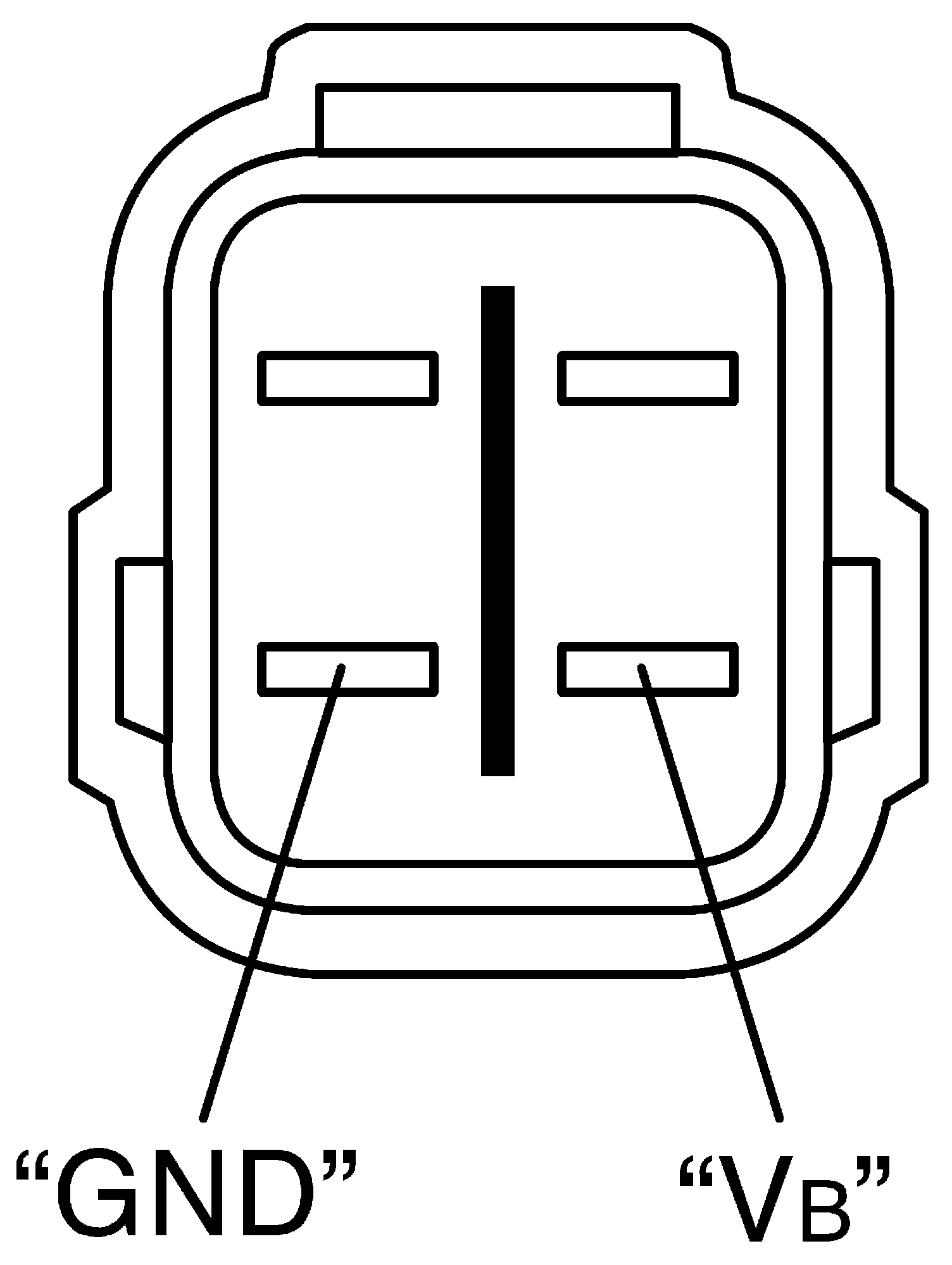

Viewed From Terminal Side:
A/F sensor heater resistance
2 - 3 ohms at 20 °C (68 °F)
3. Connect A/F sensor connector securely.
