Advanced Air Bag

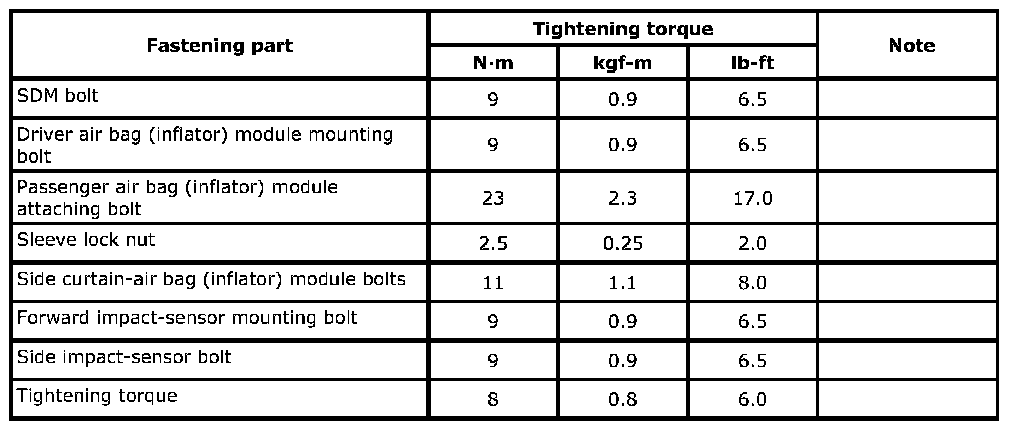

Tightening Torque Specifications

Tightening Torque Specifications:





NOTE: The specified tightening torque is also described in the following. Side-Air Bag (Inflator) Module Removal and Installation:Advanced Air Bag

Reference: For the tightening torque of fastener not specified in this section, refer to Fasteners Information.
