Removal and Replacement

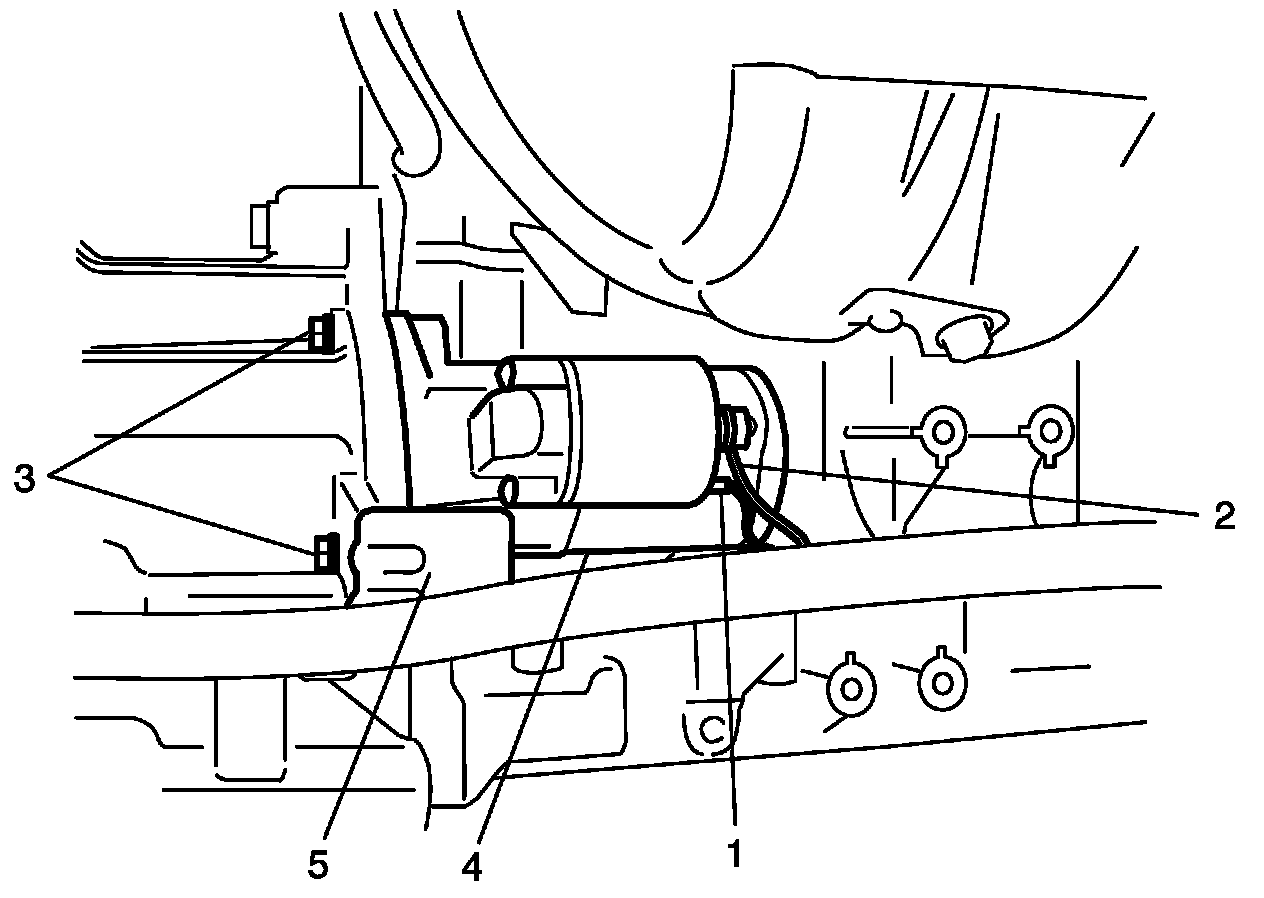

Starting Motor Dismounting and Remounting Dismounting

1. Remove battery and battery tray with ECM.
2. Remove magnetic switch lead wire (1) and battery cable (2).





3. Remove starting motor mount bolt (3) and then starting motor (4) and bracket (5).

Remounting




Reverse dismounting procedure for remounting noting the following.

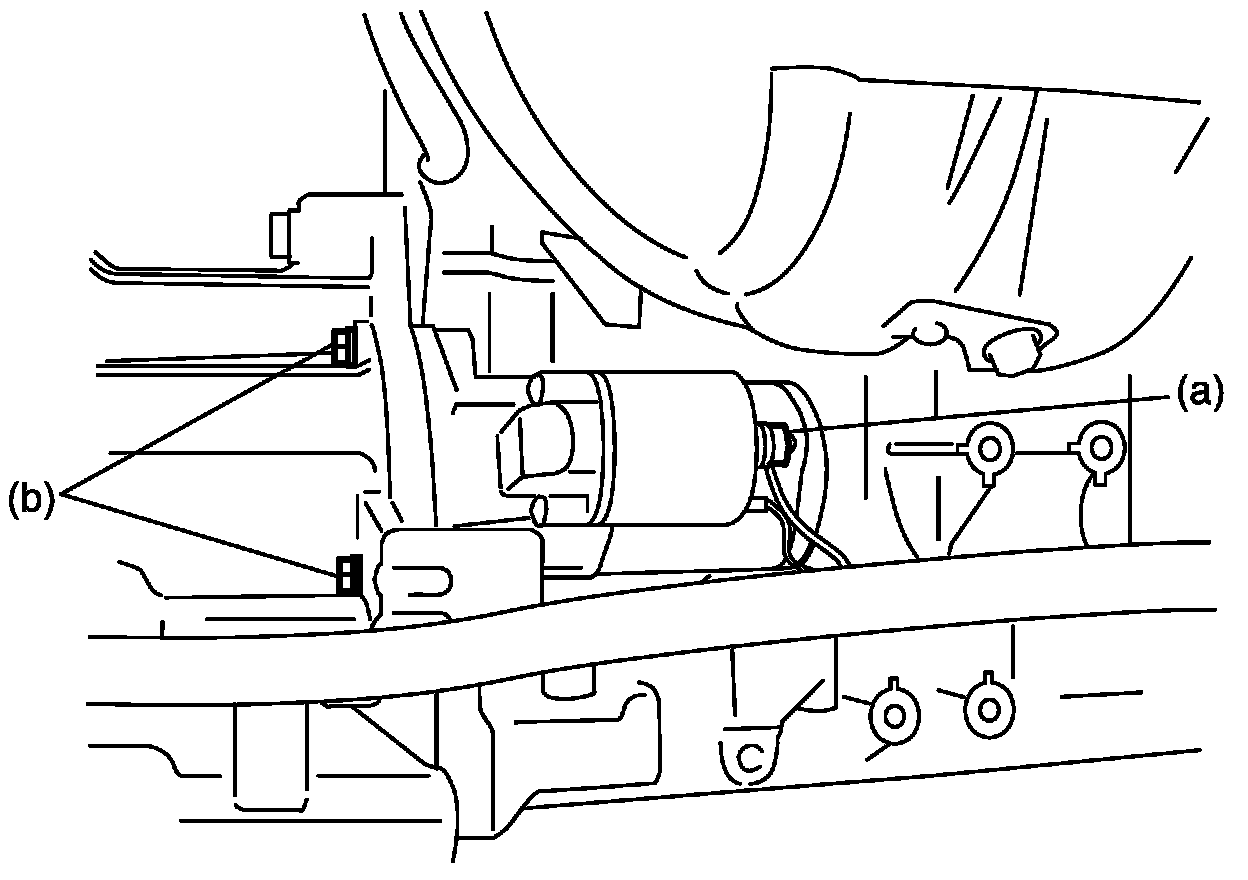

^ Tighten each bolts and nuts to specified torque.

Tightening torque
Battery cable nut a: 11 Nm (1.1 kg.m, 8.0 ft. lbs.)

Starting motor mount bolt b: 25 Nm (2.5 kg.m, 18.5 ft. lbs.)
